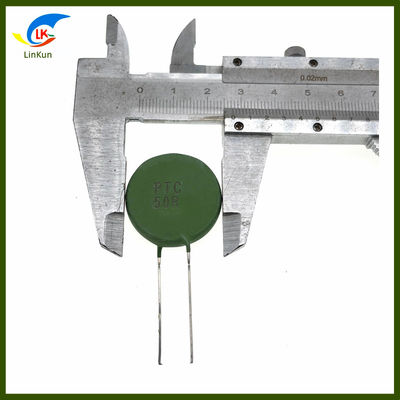

Product Details:
|
| Product Name: | 27P PTC Thermistor | Switch Temperature:: | 120℃ |
|---|---|---|---|
| Rated Power:: | 0.5W | Maximum Working Voltage:: | 850V |
| Protection Current:: | 800 MA | Diameter:: | 27mm |
| Temperature Range:: | -20~+105℃ | Color:: | Green |
| Rated Resistance:: | 50Ω±30% | High Light:: | 27P Positive Temperature Coefficient Thermistor, 16P Positive Temperature Coefficient Thermistor, 27MM Ptc Thermistor Resistance |
| Highlight: | 27MM PTC Thermistor,Positive Temperature Coefficient 27P PTC Thermistor,PTC Thermistor For Power Supplies |
||
Leaded Type

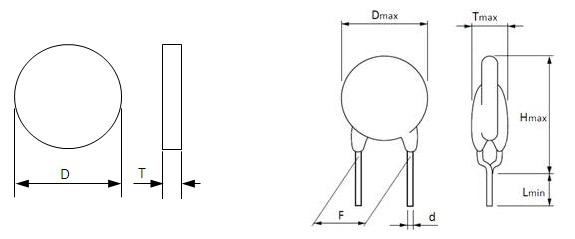

● Structures and Dimensions
● Electrical Specifications
| Order Number | Max. Voltage Vmax(VAC) |
Max. Link Voltage VLmax(VDC) |
Resistance At 25°C R25(Ω) |
Curie Temp. TC (°C) |
Heat Capacity Cth(J/K) |
Thermal Cooling Time Constant τth (s) |
Dimensions(mm) | |||
| D | H | T | ||||||||
| MZ2X209-700□B6# | 260 | 370 | 70 | 120 | 0.4 | 70 | 9.0 | 13.5 | 7.5 | |
| MZ2X209-121□B6# | 260 | 370 | 120 | 120 | 0.6 | 80 | 9.0 | 13.5 | 7.5 | |
| MZ2X209-151□B6# | 260 | 370 | 150 | 120 | 0.6 | 80 | 9.0 | 13.5 | 7.5 | |
| MZ2X212-250□B8# | 280 | 400 | 25 | 120 | 1 | 100 | 12.5 | 16.5 | 5 | |
| MZ2X213-500□B8# | 280 | 400 | 50 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 | |
| MZ2X213-800□B8# | 280 | 400 | 80 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 | |
| MZ2X413-600□C5# | 350 | 500 | 60 | 140 | 1.45 | 105 | 13.5 | 17 | 7 | |
| MZ2X315-560□D4# | 440 | 620 | 56 | 130 | 2.1 | 100 | 15.0 | 19.0 | 7.5 | |
| MZ2X213-121□D4# | 440 | 620 | 120 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 | |
| MZ2X417-600□D4# | 440 | 625 | 60 | 140 | 2.3 | 120 | 17 | 21 | 7.5 | |
| MZ2X413-121□D4# | 440 | 625 | 120 | 140 | 1.45 | 105 | 13.5 | 17 | 7 | |
| MZ2X213-151□D4# | 440 | 620 | 150 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 | |
| MZ2X209-501□D4# | 440 | 620 | 500 | 120 | 0.6 | 80 | 9.0 | 13.5 | 7.5 | |
| MZ2X109-103□D4# | 440 | 620 | 1100 | 115 | 0.6 | 80 | 9.0 | 13.5 | 7.5 | |
| MZ2X417-121□D6# | 460 | 650 | 120 | 140 | 2.3 | 120 | 17 | 21 | 7.5 | |
| MZ2X315-120□D8# | 480 | 680 | 120 | 130 | 2.1 | 100 | 15.0 | 19.0 | 7.5 | |
| MZ2X413-251□D8# | 480 | 680 | 250 | 140 | 1.45 | 105 | 13.5 | 17 | 7 | |
| MZ2X113-501□E6# | 560 | 800 | 500 | 115 | 1.4 | 120 | 13.0 | 18.0 | 7.5 | |
| MZ2X413-501□E6# | 560 | 800 | 500 | 140 | 1.45 | 105 | 13.5 | 17 | 7 | |
| MZ2X417-251□F0# | 600 | 850 | 250 | 140 | 2.3 | 120 | 17 | 21 | 7.5 | |
| MZ2X413-102□F0# | 600 | 850 | 1000 | 140 | 1.45 | 105 | 13.5 | 17 | 7 | |
| MZ2X417-501□G0# | 700 | 1000 | 500 | 140 | 2.3 | 120 | 17 | 21 | 7.5 | |
Note:
1.□ is the resistance tolerance M:±20% X:±25% N:±30% S: Special
2. # is the internal control code
3.The F value can be selected for 5mm, 7.5mm, 10mm
4.The L value canbe selected for 3mm, 20mm, 25mm, 35mm
5.The d value can be selected for 0.6mm, 0.8mm, 1.0mm
6.Other type are available on request
PTC Thermistor For Overload Protection
Application
◆ Over current protection in:
-Industrial electronics
-Consumer electronics
-Electronic data processing
◆ Short current protection
Features
◆ Short response time for rapid protection
◆ Automatic resetting once overcurrent is removed
◆ Leaded parts withstand mechanical stresses and vibration
◆ High thermal stability

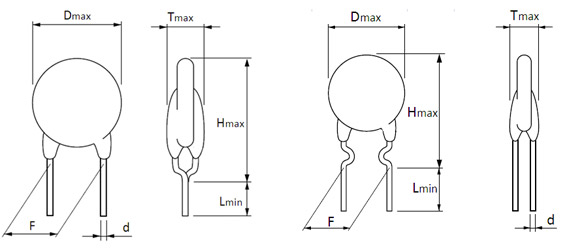

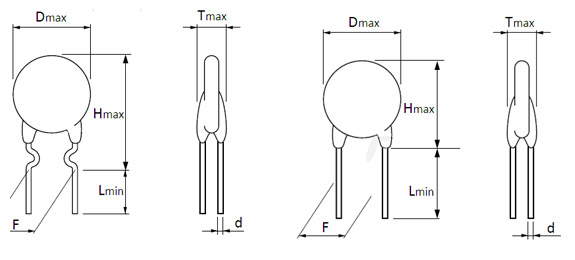

Structures and Dimensions
Electrical Specifications
Disc Series
| Order Number | Non-Operating Current | Trip Current | Rated Voltage | Max. Current | Resistance At 25℃ | Curie Temp. | Dimensions (mm) | |
| IN(mA) | IT(mA) | Vmax(V) | Imax(A) | R25(Ω) | TC(℃) | D | T | |
| MZ2DX2S0720-100□# | 80 | 230 | 60 | 2 | 10 | 120 | 7.7 | 2 |
| MZ2DX0S0720-200□# | 90 | 280 | 60 | 3 | 20 | 100 | 7.7 | 2 |
| MZ2DX3S0825-500□# | 50 | 130 | 230 | 1.2 | 50 | 130 | 5 | 2.5 |
| MZ2DX2S0825-650□# | 55 | 110 | 230 | 1 | 65 | 120 | 8 | 2.5 |
| MZ2DX3S0825-650□# | 55 | 130 | 230 | 2 | 65 | 130 | 8 | 2.5 |
| MZ2DX3S0825-350□# | 80 | 180 | 230 | 1 | 35 | 130 | 6 | 2.5 |
| MZ2DX3S0825-250□# | 125 | 250 | 230 | 1 | 25 | 130 | 8 | 2.5 |
Leaded disks, coated , Vmax 30-32V
| Order Number | Non-Operating Current | Trip Current | Max. Voltage | Max. Current | Resistance At 25℃ | Curie Temp. | Dimensions(mm) | ||
| IN(mA) | IT(mA) | Vmax(V) | Imax (A) | R25 (Ω) | TC(℃) | D | H | T | |
| MZ2LP8S07-470□# | 55 | 115 | 32 | 1.5 | 47 | 80 | 7.5 | 11.0 | 4.0 |
| MZ2LP8S07-330□# | 60 | 135 | 32 | 1.5 | 33 | 80 | 7.5 | 11.0 | 4.0 |
| MZ2LP8S07-220□# | 75 | 160 | 32 | 1.5 | 22 | 80 | 7.5 | 11.0 | 4.0 |
| MZ2LP8S07-150□# | 100 | 195 | 32 | 1.5 | 15 | 80 | 7.5 | 11.0 | 4.0 |
| MZ2LX2S04-130□# | 120 | 240 | 30 | 0.7 | 13 | 120 | 4.0 | 7.5 | 3.5 |
| MZ2LP8S07-5R0□# | 160 | 320 | 30 | 1 | 5 | 80 | 7.5 | 11.0 | 5.0 |
| MZ2LX2S07-4R6□# | 250 | 500 | 30 | 1 | 4.6 | 120 | 6.8 | 10.0 | 3.5 |
| MZ2LX4S05-6R0□# | 270 | 405 | 30 | 2.5 | 6 | 140 | 5.0 | 10.0 | 4.0 |
| MZ2LX4S07-5R0□# | 320 | 480 | 30 | 3.5 | 5 | 140 | 7.0 | 12.0 | 4.0 |
| MZ2LX2S09-1R8□# | 450 | 900 | 30 | 3 | 1.8 | 120 | 9.0 | 12.5 | 3.5 |
| MZ2LX4S08-1R9□# | 540 | 810 | 30 | 6 | 1.9 | 140 | 8.5 | 13.5 | 4.0 |
| MZ2LX4S10-1R7□# | 610 | 915 | 30 | 7 | 1.7 | 140 | 10.5 | 15.5 | 4.0 |
| MZ2LX4S10-1R3□# | 700 | 1050 | 30 | 8 | 1.3 | 140 | 10.5 | 15.5 | 4.0 |
| MZ2LX2S13-0R8□# | 850 | 1700 | 30 | 5.5 | 0.8 | 120 | 13.5 | 17.0 | 3.5 |
| MZ2LX4S12-0R9□# | 920 | 1380 | 30 | 11 | 0.9 | 140 | 12.5 | 17.5 | 4.0 |
| MZ2LX4S16-0R7□# | 1170 | 1755 | 30 | 13.5 | 0.7 | 140 | 16.5 | 21.5 | 4.0 |
| MZ2LX2S17-0R45□# | 1300 | 2600 | 30 | 8 | 0.45 | 120 | 17.5 | 21.0 | 3.5 |
| MZ2LX4S16-0R5□# | 1390 | 2085 | 30 | 16 | 0.5 | 140 | 16.5 | 21.5 | 4.0 |
| MZ2LX2S22-0R3□# | 1800 | 3600 | 30 | 10 | 0.3 | 120 | 22.0 | 25.5 | 3.5 |
| MZ2LX4S20-0R3□# | 2050 | 3075 | 30 | 23 | 0.3 | 140 | 20.5 | 25.5 | 4.0 |
Leaded disks, coated, Vmax 80V
| Order Number | Non-Operating Current | Trip Current | Max. Voltage | Max. Current | Resistance At 25℃ | Curie Temp. | Dimensions(mm) | ||
| IN(mA) | IT(mA) | (V) | (A) | R25 (Ω) | TC(℃) | D | H | T | |
| MZ2LP8S04-550□# | 30 | 60 | 80 | 0.7 | 55 | 80 | 4.0 | 7.5 | 3.5 |
| MZ2LX2S04-550□# | 50 | 100 | 80 | 0.7 | 55 | 120 | 4.0 | 7.5 | 3.5 |
| MZ2LP8S07-250□# | 50 | 110 | 80 | 1 | 25 | 80 | 6.5 | 10.0 | 3.5 |
| MZ2LX2S05-550□# | 62 | 115 | 80 | 0.7 | 55 | 120 | 5.5 | 8.5 | 4.5 |
| MZ2LX3S04-620□# | 85 | 130 | 80 | 0.7 | 62 | 130 | 4.0 | 7.5 | 3.5 |
| MZ2LX2S06-250□# | 85 | 170 | 80 | 1 | 25 | 120 | 6.5 | 10.0 | 3.5 |
| MZ2LP8S09-9R4□# | 90 | 180 | 80 | 3 | 9.4 | 80 | 9.0 | 12.5 | 3.5 |
| MZ2LP8S11-5R6□# | 130 | 260 | 80 | 4.3 | 5.6 | 80 | 11.0 | 14.5 | 3.5 |
| MZ2LX3S06-200□# | 150 | 240 | 80 | 1 | 20 | 130 | 6.5 | 10.0 | 3.5 |
| MZ2LX2S09-9R4□# | 150 | 300 | 80 | 3 | 9.4 | 120 | 9.0 | 12.5 | 3.5 |
| MZ2LP8S13-3R7□# | 170 | 350 | 80 | 5.5 | 3.7 | 80 | 13.5 | 17.0 | 3.5 |
| MZ2LX3S09-8R0□# | 250 | 380 | 80 | 3 | 8 | 130 | 9.0 | 12.5 | 3.5 |
| MZ2LX2S11-5R6□# | 250 | 500 | 80 | 4.3 | 5.6 | 120 | 11.0 | 14.5 | 3.5 |
| MZ2LX3S11-4R9□# | 320 | 500 | 80 | 4.3 | 4.9 | 130 | 11.0 | 14.5 | 3.5 |
| MZ2LX2S13-3R7□# | 320 | 640 | 80 | 5.5 | 3.7 | 120 | 13.5 | 17.0 | 3.5 |
| MZ2LX2S17-2R3□# | 450 | 900 | 80 | 8 | 2.3 | 120 | 17.5 | 21.0 | 3.5 |
| MZ2LX3S17-2R2□# | 700 | 1100 | 80 | 8 | 2.2 | 130 | 17.5 | 21.0 | 3.5 |
| MZ2LX2S22-1R65□# | 700 | 1400 | 80 | 10 | 1.65 | 120 | 22.0 | 25.5 | 3.5 |
| MZ2LX3S22-1R2□# | 1000 | 1500 | 80 | 10 | 1.2 | 130 | 22.0 | 25.5 | 3.5 |
Leaded disks, coated, Vmax 145-160V
| Order Number | Non-Operating Current | Trip Current | Max. Voltage | Max. Current | Resistance At 25℃ | Curie Temp. | Dimensions (mm) | ||
| IN(mA) | IT(mA) | (V) | (A) | R25 (Ω) | TC(℃) | D | H | T | |
| MZ2LX4S05-241□# | 47 | 70 | 145 | 0.2 | 240 | 140 | 5.0 | 10.0 | 5.0 |
| MZ2LX4S05-101□# | 65 | 100 | 145 | 0.3 | 100 | 140 | 5.0 | 10.0 | 5.0 |
| MZ2LX4S05-400□# | 110 | 165 | 145 | 0.5 | 40 | 140 | 5.0 | 10.0 | 5.0 |
| MZ2LX2S07-330□# | 130 | 200 | 145 | 0.5 | 33 | 120 | 7.5 | 11.0 | 6.0 |
| MZ2LX2S09-220□# | 180 | 280 | 145 | 1 | 22 | 120 | 9.5 | 13.0 | 6.0 |
| MZ2LX2S11-150□# | 220 | 345 | 145 | 1 | 15 | 120 | 11.5 | 15.0 | 6.0 |
| MZ2LX2S13-100□# | 290 | 440 | 145 | 1 | 10 | 120 | 13.0 | 16.5 | 6.0 |
| MZ2LX4S10-6R8□# | 320 | 480 | 145 | 3 | 6.8 | 140 | 10.5 | 15.5 | 5.0 |
| MZ2LX4S10-5R3□# | 360 | 540 | 145 | 3.5 | 5.3 | 140 | 10.5 | 15.5 | 5.0 |
| MZ2LX2S17-5R6□# | 440 | 670 | 145 | 2 | 5.6 | 120 | 17.0 | 20.5 | 6.0 |
| MZ2LX4S16-2R9□# | 600 | 900 | 145 | 7.2 | 2.9 | 140 | 16.5 | 21.5 | 5.0 |
| MZ2LX4S16-2R1□# | 710 | 1070 | 145 | 8.5 | 2.1 | 140 | 16.5 | 21.5 | 5.0 |
| MZ2LX4S20-1R7□# | 880 | 1320 | 145 | 11 | 1.7 | 140 | 20.5 | 25.5 | 5.0 |
| MZ2LX4S20-1R3□# | 1000 | 1500 | 145 | 13 | 1.3 | 140 | 20.5 | 26.0 | 5.0 |
| MZ2LX6S04-151□# | 35 | 70 | 160 | 0.2 | 150 | 160 | 4.0 | 7.5 | 5.0 |
| MZ2LX6S06-700□# | 70 | 140 | 160 | 0.4 | 70 | 160 | 6.5 | 10.0 | 5.0 |
| MZ2LX6S09-250□# | 125 | 500 | 160 | 1 | 25 | 160 | 9.0 | 12.5 | 5.0 |
| MZ2LX6S11-150□# | 180 | 360 | 160 | 1.5 | 15 | 160 | 11.0 | 14.5 | 5.0 |
| MZ2LX6S13-100□# | 250 | 500 | 160 | 2.2 | 10 | 160 | 13.5 | 17.0 | 5.0 |
| MZ2LX6S17-6R0□# | 400 | 800 | 160 | 4.1 | 6 | 160 | 17.5 | 21.0 | 5.0 |
| MZ2LX6S22-3R7□# | 525 | 1050 | 160 | 7 | 3.7 | 160 | 22.0 | 25.5 | 5.0 |
Leaded disks, coated, Vmax 265V
| Order Number | Non-Operating Current | Trip Current | Max. Voltage | Max. Current | Resistance At 25℃ | Curie Temp. | Dimensions(mm) | ||
| IN(mA) | IT(mA) | (V) | (A) | R25 (Ω) | TC(℃) | D | H | T | |
| MZ2LX4S05-302□# | 11 | 17 | 265 | 0.08 | 3000 | 140 | 5.0 | 8.5 | 5.5 |
| MZ2LP8S04-151□# | 15 | 40 | 265 | 0.2 | 150 | 80 | 4.0 | 7.5 | 5.0 |
| MZ2LX2S04-151□# | 30 | 60 | 265 | 0.2 | 150 | 120 | 4.0 | 7.5 | 5.0 |
| MZ2LP8S06-700□# | 30 | 70 | 265 | 0.4 | 70 | 80 | 6.5 | 10.0 | 5.0 |
| MZ2LX2S06-121□# | 47 | 75 | 265 | 0.4 | 120 | 120 | 6.5 | 10.0 | 5.0 |
| MZ2LX3S04-161□# | 55 | 90 | 265 | 0.2 | 160 | 130 | 4.0 | 7.5 | 5.0 |
| MZ2LX2S06-700□# | 55 | 110 | 265 | 0.4 | 70 | 120 | 6.5 | 10.0 | 5.0 |
| MZ2LX2S09-650□# | 55 | 110 | 265 | 1 | 65 | 120 | 9.0 | 12.5 | 5.0 |
| MZ2LX2S09-550□# | 60 | 125 | 265 | 1 | 55 | 120 | 9.0 | 12.5 | 5.0 |
| MZ2LP8S09-250□# | 60 | 130 | 265 | 1 | 25 | 80 | 9.0 | 12.5 | 5.0 |
| MZ2LX2S06-820□# | 75 | 125 | 265 | 0.5 | 82 | 120 | 6.5 | 10.0 | 5.0 |
| MZ2LX2S09-350□# | 80 | 160 | 265 | 1 | 35 | 120 | 9.0 | 12.5 | 5.0 |
| MZ2LP8S11-150□# | 90 | 180 | 265 | 1.5 | 15 | 80 | 11.0 | 14.5 | 5.0 |
| MZ2LX3S06-500□# | 100 | 150 | 265 | 0.4 | 50 | 130 | 6.5 | 10.0 | 5.0 |
| MZ2LX2S09-250□# | 100 | 200 | 265 | 1 | 25 | 120 | 9.0 | 12.5 | 5.0 |
| MZ2LP8S13-100□# | 110 | 230 | 265 | 2.2 | 10 | 80 | 13.5 | 17.0 | 5.0 |
| MZ2LX2S10-390□# | 130 | 210 | 265 | 1.2 | 39 | 120 | 10.0 | 13.5 | 5.0 |
| MZ2LX2S11-150□# | 140 | 280 | 265 | 1.5 | 15 | 120 | 11.0 | 14.5 | 5.0 |
| MZ2LP8S17-6R0□# | 170 | 350 | 265 | 4.1 | 6 | 80 | 17.5 | 21.5 | 5.0 |
| MZ2LX3S11-130□# | 200 | 320 | 265 | 1.5 | 13 | 130 | 11.0 | 14.5 | 5.0 |
| MZ2LX2S13-100□# | 200 | 400 | 265 | 2.2 | 10 | 120 | 13.5 | 17.0 | 5.0 |
| MZ2LX3S13-9R0□# | 330 | 500 | 265 | 2.2 | 9 | 130 | 13.5 | 17.0 | 5.0 |
| MZ2LX2S17-6R0□# | 330 | 660 | 265 | 4.1 | 6 | 120 | 17.5 | 21.5 | 5.0 |
| MZ2LX3S17-5R0□# | 450 | 680 | 265 | 4.1 | 5 | 130 | 17.5 | 21.5 | 5.0 |
| MZ2LX2S22-3R7□# | 460 | 920 | 265 | 7 | 3.7 | 120 | 22.0 | 26.0 | 5.0 |
| MZ2LX3S22-3R5□# | 650 | 980 | 265 | 7 | 3.5 | 130 | 22.0 | 26.0 | 5.0 |
| MZ2LX4S20-2R8□# | 700 | 1050 | 265 | 5.5 | 2.8 | 140 | 20.5 | 26.0 | 5.5 |
| MZ2LX4S20-2R1□# | 800 | 1200 | 265 | 5.5 | 2.1 | 140 | 20.5 | 26.0 | 5.5 |
Leaded disks, coated, Vmax 420-1000V
| Order Number | Non-Operating Current | Trip Current | Max. Voltage | Max. Current | Resistance At 25℃ | Curie Temp. | Dimensions(mm) | ||
| IN(mA) | IT(mA) | (V) | (A) | R25 (Ω) | TC(℃) | D | H | T | |
| MZ2LX2S06-601□# | 21 | 39 | 420 | 0.2 | 600 | 120 | 6.5 | 10.0 | 5.0 |
| MZ2LX1S06-152□# | 12 | 24 | 550 | 0.1 | 1500 | 115 | 6.5 | 10.0 | 5.0 |
| MZ2LX1S06-122□# | 15 | 30 | 550 | 0.1 | 1200 | 115 | 6.5 | 10.0 | 5.0 |
| MZ2LX0S05-162□# | 10 | 20 | 600 | 0.5 | 1600 | 100 | 5.0 | 10.0 | 4.5 |
| MZ2LX0S10-400□# | 10 | 50 | 600 | 0.5 | 400 | 100 | 10.0 | 15.0 | 6..5 |
| MZ2LX0S07-102□# | 10 | 25 | 1000 | 0.5 | 1000 | 100 | 7.0 | 12.0 | 5.0 |
Note:
1.□ is the resistance tolerance M:±20% X:±25% N:±30% S: Special
2. # is the internal control code
3.The F value can be selected for 5mm, 7.5mm, 10mm
4.The L value canbe selected for 3mm, 20mm, 25mm, 35mm
5.The d value can be selected for 0.6mm, 0.8mm, 1.0mm
6.Other type are available on request〃
Contact Person: Ms. Huang
Tel: 13423305709
