Product Details:
|
| Lead Length: | 28mm | Allowable Tolerance: | ±1% ±2% ±3% ±5% |
|---|---|---|---|
| Rated Power: | ≤50mW | Thermal Time Constant: | 20S |
| Shape: | Axial Leaded | Operating Temperature: | -55°C To +300°C |
| B-Value 25/50: | 3100K-4750K ±1% | Tolerance: | 2mw/°C |

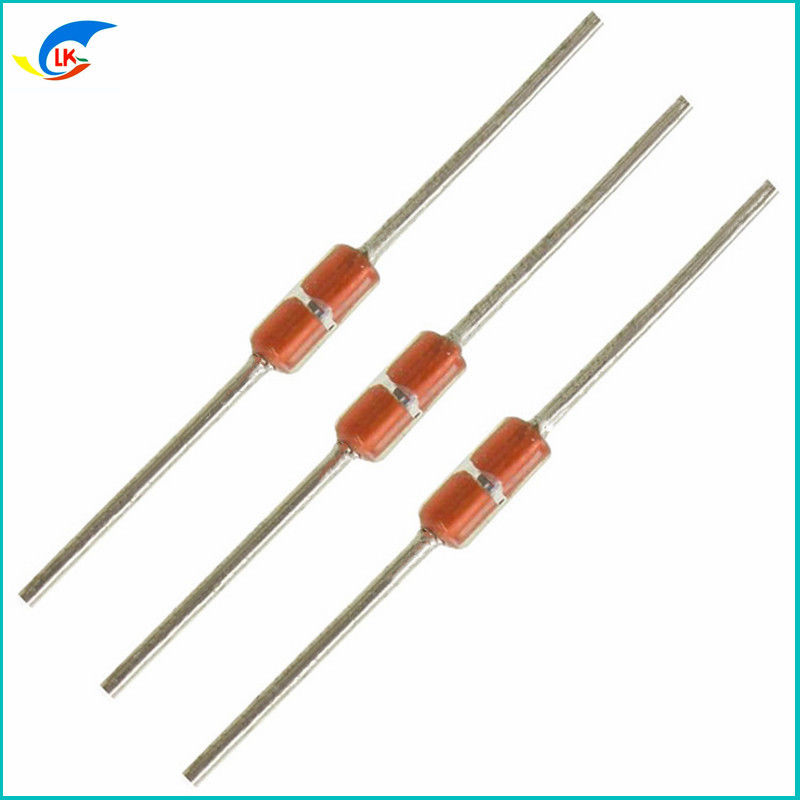

| Highlight: | MF58 Glass Encapsulated NTC Thermistor,Induction Cooker Glass Encapsulated NTC Thermistor |
||
Application:
1.Temperature control and temperature detection forhousehold appliances (such as air conditioner, microwave oven, electric fans, electric heating furnace, etc.) ;
2.Temperature measurement or temperature compensation foroffice automation equipment (such as copiers, printers, etc.) ;
1.Good stability, high reliability
2.Wide resistance range: 0.1 ~ 1000KΩ
3.High precision ofresistance
4.Capability of operating in the bad environment of high temperature and high humidity because of the glass encapsulation framework
5.Small size, light weight, strong structure, easy for automation installation(on the printed-circuit board)
6.Fats response to the temperature, high delicacy
| P/N | Resistance | Beta value | Operating temperature | |||
| R25 (KΩ) | Tol. | (25/50℃)(K) | Custom B value | Tol | (℃) | |
| MF58□102□2700 | 1.00 |
±1％
|
2700 | ±1％ ±2％ |
-40～350 | |
| MF58□102□3270 | 1.00 | 3270 | ||||
| MF58□152□3920 | 1.50 | 3920 | ||||
| MF58□202□3470 | 2.00 | 3470 | ||||
| MF58□202□3839X | 2.00 | B5/25=3839 | ||||
| MF58□2.89□3470 | 2.89 | 3470 | ||||
| MF58□2.89□3520 | 2.89 | 3520 | ||||
| MF58□302□3520 | 3 | 3520 | ||||
| MF58□472□3230 | 4.7 | 3230 | ||||
| MF58□472□3510 | 4.7 | 3510 | ||||
| MF58□502□3240 | 5 | 3240 | ||||
| MF58□502□3270 | 5 | 3270 | ||||
| MF58□502□3380 | 5 | 3380 | ||||
| MF58□502□3470 | 5 | 3470 | ||||
| MF58□502□3500 | 5 | 3500 | ||||
| MF58□502□3900 | 5 | 3900 | ||||
| MF58□502□3950 | 5 | 3950 | ||||
| MF58□5.369□3480 | 5.369 | 3480 | ||||
| MF58□103□3360 | 10 | 3360 | ||||
| MF58□103□3380 | 10 | 3380 | ||||
| MF58□103□3435 | 10 | 3435 | ||||
| MF58□103□3470 | 10 | 3470 | ||||
| MF58□103□3600 | 10 | 3600 | ||||
| MF58□103□3700 | 10 | 3700 | ||||
| MF58□103□3900 | 10 | 3900 | ||||
| MF58□103□3950 | 10 | 3950 | ||||
| MF58□103□4100 | 10 | 4100 | ||||
| MF58□153□3950 | 15 | 3950 | ||||
| MF58□203□3950 | 20 | 3950 | ||||
| MF58□203□4200 | 20 | 4200 | ||||
| MF58□223□3950 | 22 | 3950 | ||||
| MF58□303□3950 | 30 | 3950 | ||||
| MF58□403□3950 | 40.27 | 3950 | ||||
| MF58□473□3950 | 47 | 3950 | ||||
| MF58□503□3900 | 50 | 3900 | ||||
| MF58□503□3950 | 50 | 3950 | ||||
| MF58□503□3990 | 50 | 3990 | ||||
| MF58□533□4050 | 53 | 4050 | ||||
| MF58□104□3420 | 100 | 3420 | ||||
| MF58□104□3900 | 100 | 3900 | ||||
| MF58□104□3925 | 100 | 3925 | ||||
| MF58□104□3950 | 100 | 3950 | ||||
| MF58□104□3975 | 100 | 3975 | ||||
| MF58□104□3990 | 100 | 3990 | ||||
| MF58□104□4100 | 100 | 4100 | ||||
| MF58□104□4200 | 100 | 4200 | ||||
| MF58□104□4360 | 100 | 4360 | ||||
| MF58□154□3950 | 150 | 3950 | ||||
| MF58□204□3500 | 200 | 3500 | ||||
| MF58□204□3899 | 200 | 3899 | ||||
| MF58□204□3950 | 200 | 3950 | ||||
| MF58□204□4200 | 200 | 4200 | ||||
| MF58□204□4260 | 200 | 4260 | ||||
| MF58□234□4160 | 230 | 4160 | ||||
| MF58□234□4260 | 230 | 4537(100/200℃) | ||||
| MF58□254□3950 | 250 | 3950 | ||||
| MF58□504□4050 | 500 | 4050 | ||||
| MF58□504□4260 | 500 | 4260 | ||||
| MF58□504□4300 | 500 | 4300 | ||||
| MF58□105□4200 | 1000 | 4200 | ||||
| MF58□105□4400 | 1000 | 4400 | ||||
| MF58□135□4400 | 1300 | 4400 | ||||
| MF58□1.388M□4400 | 1388 | 4400 | ||||
| MF58□1.388M□4600 | 1388 | 4600 | ||||
| P/N | Resistance | Beta Value | Specific parameter | Operating temperature | |||
| R25 (KΩ) | Tol. | (K) | Specific Beta | Tol. | (℃) | ||
| MF58□202□3839□X(5/25) | 2 | ±1％ ±2％ ±3％ ±5％ |
B5/25= 3839 | ±0.5％ ±1％ ±2％ |
R5=5.06KΩ | -40～350 | |
| MF58□202□3771□X(-18/25) | 2 | B-18/25= 3771 | R-18=16.9KΩ | ||||
| MF58□5.369K□3480□B | 5.369 | B25/85= 3480 | |||||
| MF58□103□3975□B | 10 | 3975 | |||||
| MF58□233□4200□A | 23 | 4200 | |||||
| MF58□40.27K□3979□B | 40.27 | B25/85= 3979 | |||||
| MF58□49.12K□3970□X(0/100) | 49.12 | B0/100= 3970 | R100=3.3KΩ | ||||
| MF58□503□4050□A | 50 | 4050 | |||||
| MF58□98.75K□4300□X(100/200) | 98.75 | B100/200= 4300 | R200=0.55KΩ | ||||
| MF58□98.63K□4300□X(100/200) | 98.63 | B100/200= 4300 | R200=0.55KΩ | ||||
| MF58□104□3899□A | 200 | 3899 | R160=1.50KΩ | ||||
| MF58□104□3930□A | 100 | 3930 | |||||
| MF58□104□3990□A | 100 | 3990 | |||||
| MF58□175T2.109K□3899□A | 3899 | R175=2.109KΩ | |||||
| MF58□204□3899□A | 200 | 3899 | R160=3.0KΩ | ||||
| MF58□231.5K□4537□X(100/200) | 231.5 | 4537 | R200=1.0KΩ | ||||
| MF58□1.388M□4500□A | 1388 | 4500 | R200=4.0KΩ | ||||
NTC Type Thermistor is a single-ended glass sealed thermistor in the MF5 series. It has a thermal time constant of 20 seconds, and its B-value range is from 3100K-4750K, with an accuracy of ±1%. The operating temperature range is from -55°C to +300°C, and the lead length is 28mm. It is specially designed for temperature measurement and temperature switch applications, and its rated power is ≤50mW.
| Product Attribute | Value |
|---|---|
| Tolerance | 2mW/°C |
| Operating Temperature | -55°C To +300°C |
| Shape | Axial Leaded |
| Thermal Time Constant | 20S |
| Lead Length | 28mm |
| B-Value 25/50 | 3100K-4750K ±1% |
| Dissipation Factor | 22mW/C(In Still Air) |
| Size | 4*2mm |
| Allowable Tolerance | ±1% ±2% ±3% ±5% |
| Resistance Range | 1KΩ To 500KΩ |
The MF58 glass sealed thermistor from Lin Kun is an ideal choice for customers who need a reliable and durable product. With a minimum order quantity of 5000 PCS and price of 0.045 USD/ PCS, this thermistor is certified by ROHS and UL and is available in bulk with 500pcs per polybag. It has a delivery time of 7 workdays and payment terms of T/T. With a supply ability of up to 20,000,000PCS per week, this thermistor is suitable for operating temperatures from -55°C To +300°C, thermal time constant of 20S, and lead length of 28mm. It is available with allowable tolerance of ±1%, ±2%, ±3%, ±5%. The NTC Thermistor MF58 Series is an ideal product for customers looking for premium quality thermistors.
Lin Kun offers customized NTC Type Thermistor to meet your special needs. Our products include MF5 Single-ended glass sealed thermistor, MF11 temperature compensated thermistor, MF55 film thermistor, MF58 glass encapsulated NTC thermistor and so on. Below are the details of our product:
If you are interested in our product, please contact us for more information.
At NTC, we provide world-class technical support and services for all of our NTC Type Thermistor products, including on-site installation and troubleshooting, remote diagnostics, and technical advice.
Our team of qualified technicians are available to provide on-site installation and troubleshooting services for NTC Type Thermistor products. Our technicians are highly skilled and knowledgeable in all aspects of thermostat installation and maintenance, so you can rest assured that your NTC Type Thermistor product is in good hands.
We also offer remote diagnostics support for NTC Type Thermistor products. Our remote diagnostics team can quickly diagnose any issues you may be experiencing with your NTC Type Thermistor product and provide solutions to get you up and running again quickly.
We are also available to provide technical advice on all aspects of NTC Type Thermistor products. Our team of experienced technicians can provide you with the knowledge and expertise you need to ensure that your NTC Type Thermistor product is working correctly and efficiently.
NTC Type Thermistor Packaging and Shipping:
NTC Type Thermistor products are carefully packaged in a polyethylene bag and placed in a cardboard box. The box is then secured with tape and labeled with the product name and serial number. Then, the box is placed in a larger cardboard box for shipment. The larger box is also labeled with the product name and serial number, and is securely sealed with tape.
