Product Details:
|
| Features: | Quick Reaction Time | Application: | Industry / Electronic Product |
|---|---|---|---|
| Logo: | SP213 | Model: | MZ11-08E800-161RM/12D391 |
| Technology: | PTC Thermistor | Package Type: | Throught Hole |
| Type: | Thermal Resistor | Certified: | RoHS-compatible / UL |
| PTC Zero Power Resistor（Rn: | 80-160）Ω±2% | PTC Curie Temperature: | 115±7℃ |
| Varistor Voltage: | 390±10% VDC | Working Voltage: | 265VAC |
| Highlight: | Practical Thermistor NTC PTC,Stable Thermistor NTC PTC,Electronic PTC Positive Thermistor |
||

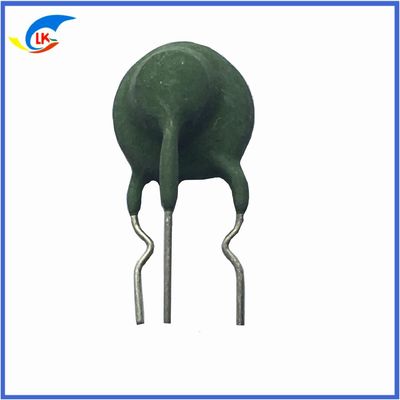

SP213 MZ11-08E800-161RM/12D391 Practical Stable Thermistor NTC PTC, Electronic Intelligent PTC Positive Temperature Ther
Electrical performance:
| Serial number | Project | experiment method | skills requirement |
| 2.0 | standard test conditions | Generally test at 25±2℃, 65%RH | |
| 2.1 | PTC zero power resistor(Rn) | After the test sample is placed in still air at 25±2°C for 2 hours, measure it with a resistance meter with an accuracy of not less than 0.5Ω. | (80-160)Ω±2% |
| 2.2 | PTC non-operating current | Place the PTC in still air at a temperature of 70±2°C with a power supply voltage of 220VAC and a current of 20mA for 60min. |
45mA ︱△R/Rn︱≤50%
|
| 2.3 | PTC action characteristics | Put the PTC in an environment with a temperature of 25±2°C, a power supply voltage of 220VAC, and a current of 100mA, and the PTC will enter a high-resistance state within 2 minutes. |
200mA≤300S
|
| 2.4 | PTC Curie temperature | Put the PTC in a constant temperature box, and measure the zero power resistance value with a multimeter at a heating rate of 5 minutes/°C. The resistance value is equal to the temperature when the resistance value is twice the room temperature resistance. |
115±7℃
|
| 2.5 | Varistor voltage | The voltage across the varistor at 1mA DC current. |
390±10% VDC
|
| 2.6 | Working voltage | Ambient temperature 25±2℃ |
265VAC
|
| 2.7 | PTC withstand power frequency voltage (V) | Under the ambient temperature of 25±2°C, the power supply voltage is 220VAC, the PTC initial current is 300mA for 15S, then suddenly changes to 420V, lasts 30S, stands still for 24h, and retests the zero-power resistance value according to 2-1. |
500Vac △R/Rn≤30% |
| Serial number | Project | Experiment method | Skills requirement |
|
3.1
|
Exterior | visual inspection | The surface is bright and smooth, and the printing is correct and clear, without any visible damage that reduces usability. |
| 3.2 | Terminal strength | According to GB2423-29 experiment u, test Ua, pull 10N, time 10S; test Ub, bend 90°, pull 5N, twice in a row; test Uc, twist 180°, twice in a row; stand at room temperature for 24 hours, Press 2-1 to retest the zero power resistance value. | no mechanical damage |
| 3.3 | Vibration test | The vibration frequency is 10Hz-55 Hz-10 Hz; the amplitude is the simple harmonic vibration of 0.75. According to 4.16 in GB10193-88 | no mechanical damage |
| 3.4 | Solderability | According to GB2423-28 experiment Ta, the experiment adopts welding bath method, the temperature is 235±5℃; the immersion time is 2±0.5 seconds; the immersion depth is 2±0.5mm. | At least 90% continuous fresh solder on the terminal |
| 3.5 | Resistance to soldering heat | Conduct the experiment according to GB2423-29 experiment Tb, after standing at room temperature for 24 hours, retest the zero power resistance value. | Change rate of resistance value before and after experiment△R/Rn≤20% |
四, Weather resistance test
| Serial number | Project | Experiment method | skills requirement |
| 4.1 | High temperature storage (except T type) | After being placed at 125±2°C without load for 1000 hours, take it into room temperature and humidity, place it for more than 1 hour and within 2 hours, and measure its characteristics | Nominal resistance change rate≤±15% |
| 4.2 | wet storage | After 1000 hours of no-load storage at 40±2℃, 90%-95%RH, take it into room temperature and humidity, place it for more than 1 hour and within 2 hours, and measure its characteristics | |
| 4.3 | low temperature storage | After being placed at -40±2°C without load for 1000 hours, take it into room temperature and humidity, place it for more than 1 hour and within 2 hours, and measure its characteristics |
High Reliability Long Life PTC Type Thdrmistor Quick Reaction Time RoHS-Compatible
Thermistors are a type of sensitive components, which are divided into positive temperature coefficient thermistors (PTC) and negative temperature coefficient thermistors (NTC) according to different temperature coefficients. A typical feature of a thermistor is that it is sensitive to temperature and exhibits different resistance values at different temperatures. Positive temperature coefficient thermistors (PTC) have larger resistance values at higher temperatures, and negative temperature coefficient thermistors (NTC) have lower resistance values at higher temperatures. They are both semiconductor devices.
Thermistor is a sensitive component developed early, with many types and mature development. Thermistors are composed of semiconducting ceramic materials and utilize the principle that temperature causes a change in resistance. When the temperature is lower than Tc, the negative charge at the grain boundary is partially offset by the polarization charge, so that the barrier height is greatly reduced, and the grain boundary is in a low-resistance state; when the temperature is higher than Tc, the spontaneous polarization disappears, and the negative charge at the grain boundary cannot It is obtained that the polarization charge barrier is at a high level, and the grain boundary is in a high-resistance state. The overall resistance of the material rises sharply.
Product Description
◆ Self protecting in case of overload with no risk of over-heating
◆ Encased thermistor disk with clamp contacts for high reliability
◆ For high pulse currents and a high number of inrush-power cycles
◆ Can handle 2kv energy-limited peak voltage
Application
◆ Automotive on-board charging
◆ Discharge - charge circuits
◆ Power inverters
◆ Server power surge protection
◆ Servo motor control
◆ Welding equipment
Structures and Dimensions
Electrical Specifications
| Order Number | Max. Voltage Vmax(VAC) |
Max. Link Voltage VLmax(VDC) |
Resistance At 25°C R25(Ω) |
Curie Temp. TC (°C) |
Heat Capacity Cth(J/K) |
Thermal Cooling Time Constant τth(s) |
| MZ22-22R□ | 280 | 400 | 22 | 135 | 2.3 | 150 |
| MZ22-33R□ | 280 | 400 | 33 | 135 | 2.3 | 150 |
| MZ22-56R□ | 440 | 620 | 56 | 135 | 2.3 | 150 |
| MZ22-101R□ | 560 | 800 | 100 | 135 | 2.3 | 150 |
| MZ22-501R□ | 780 | 1100 | 500 | 140 | 2.3 | 150 |
