Product Details:
|
| Way To Install: | Inserting | Assembly: | Insert Hole Or Lock |
|---|---|---|---|
| Terminals: | Brass Tin Plated | Max Power Consumptionmw: | 100nmw |
| Spectrum Peaknm: | 560 | Connector: | PH-2Y |
| Operating Voltage: | 3.3V To 5V | Measuring The Dielectric: | Temperature |
| B Toleranc: | 1% , 2% , 3% ,5% | Resistance: | R25＝10K±1%,B25/50＝3950±1% |
| Resistance Value: | 2K,2.2K,5K,10K,20K,50K,100K,200K Etc. | Rohs Compliant: | Yes |
| Warranty: | 2 Years | ||
| Highlight: | 100K NTC Temperature Sensor,High Precision NTC Temperature Sensor,OT Terminal Wire NTC Temperature Sensor |
||

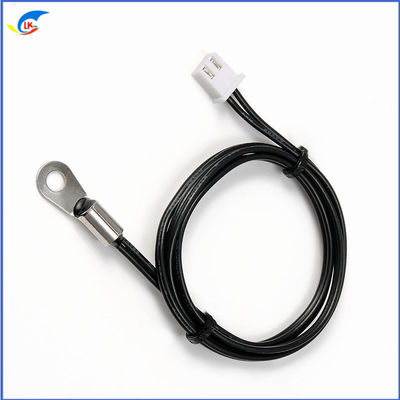

NTC Temperature Sensor OT Terminal Wire Ring Fixed Piece 100K 3950 1% High Precision ThermistorPRODUCT PARAMETERS
Product Usage:
Electric blankets, heated clothes, thermostatic coasters, bottle warmers, disinfection cabinets, car refrigerators, electric hot water faucets, refrigerators,
Freezers, water heaters, water dispensers, heaters, dishwashers, dryers, medium and low temperature drying ovens, and thermostatic ovens
Temperature measurement and control in other occasions.
Product Features:
1: This series of products is NTC thermistor temperature sensor
2:Wide resistance range: 1K9~200K9
3: Resistance and B values have high precision, fast response speed, and interchangeable resistance values.
4: Moisture-proof, good insulation, high reliability, small time constant and good insulation
5: Able to work stably for a long time with good consistency
6: Various shapes and packages can be provided according to the installation conditions used to facilitate user installation.
7: Provide a variety of wire types and connector types
Precautions:
Measuring: When measuring NTC thermistor, you must pay attention to the following matters:
●It cannot be measured in the air. The temperature difference in the air is large and the measurement is inaccurate, resulting in accuracy deviation.
●A high-precision constant temperature bath is used for measurement. After the NTC to be measured is placed in the constant temperature bath, it must wait for the temperature of the constant temperature bath.
After stabilization, measurement can be performed.
●The measurement voltage is as low as possible to reduce measurement errors caused by NTC self-heating.
●When measuring high temperature, use a thermometer to correct and check the temperature of the constant temperature chamber.
| Product parameters: | ||
| NTC temperature sensor | ||
| Commonly used resistance specifications: . | NTC 1K, 2K,5K,10K, 20K, 50K, 100K, 200K, 400K, 1000K等 | |
| temperature range: | -20~120°C, -30~250°C, -40~350°C,或者应注意 | |
| Resistance accuracy: | 0.5%, 1%,2%,3%,5% | |
| Probe shape | Bullet, cylindrical, surface mount, spiral, epoxy sealed injection molded probes are available.Cylindrical probes, unencapsulated probes, flange probes, microprobes, clamp styles, various coating configurations and housing materials | |
| Probe material | Nickel plated copper, brass, stainless steel, aluminum,ABS, PVC, PP, TPE, PTFE, PFA, silicone or suggestions | |
| Wire | Teflon cable, PVC cable, silicone cable, TPE cable, XL-PE cable, or customized length as suggested by customer | |
| Connector | TJC3 2.54, SMR, SMP, 5566,5264, PH, EH, XH, 557, etc. | |
| Special requirements | High temperature resistance, waterproof, dustproof, anti-corrosion, etc. | |
One of the standout features of the NTC Sensor is its B tolerance, which offers a variety of options to suit different needs. This tolerance ranges from 1% to 5%, allowing for precise and accurate measurements in a variety of settings.
In addition to its accuracy, the NTC Sensor is capable of withstanding extreme temperatures. Its storage temperature range of -55°C to 150°C means that it can be used in harsh environments without fear of damage.
The brass tin plated terminals of the NTC Sensor ensure a secure and reliable connection, making it easy to integrate into any project or system.
Overall, the NTC Sensor is a versatile and dependable choice for temperature sensing applications. Its wide power range, B tolerance options, and temperature resistance make it a top choice for professionals in a variety of industries.
| NTC Temperature Sensor | |
| Wire | PVC, Teflon, Enamel Insulation |
| Cable | XLPE Black Cable |
| Measuring The Dielectric | Temperature |
| Dark Resistance | 2-3MΩ |
| Max Power Consumptionmw | 100nmw |
| Operating Voltage | 3.3V To 5V |
| Storage Temperature Range | -55°C To 150°C |
| Connector | PH-2Y |
| Way To Install | Inserting |
| Assembly | Insert Hole Or Lock |
The PT100 Temperature Sensor is manufactured in Dongguan, Guangdong, China, and is designed to provide accurate temperature readings in a variety of environments. With a dark resistance of 2-3MΩ and a B tolerance of 1%, 2%, 3%, or 5%, this sensor is able to provide precise measurements in even the most challenging conditions.
The XLPE black cable that comes with the PT100 Temperature Sensor makes it easy to install in a variety of settings. It can be inserted into a device or connected to a circuit board, making it a versatile option for a range of applications.
Some common applications for the PT100 Temperature Sensor include temperature monitoring in industrial processes, HVAC systems, and household appliances. It can also be used in scientific research and development, as well as in automotive applications.
Whether you need to measure temperature in a laboratory or on a factory floor, the PT100 Temperature Sensor from LINKUN is a reliable and accurate option. With an operating voltage of 3.3V to 5V, it is compatible with a range of devices and can be easily integrated into existing systems.
The NTC Temperature Sensor product technical support and services include:
Our team of experienced engineers and technicians are dedicated to providing exceptional support and service to ensure the optimal performance and longevity of your NTC Temperature Sensor.
Product Packaging:
The NTC Temperature Sensor product will be packaged in a sturdy cardboard box with protective foam inserts. The product will be sealed in an anti-static bag to prevent any damage during shipping.
Shipping:
The NTC Temperature Sensor product will be shipped via a reliable courier service. The package will be tracked during transit to ensure timely delivery. Customers can expect to receive their product within 3-5 business days after placing their order.
