Product Details:
|
| Feature: | High Reliability Ceramic Structure | Application: | General Purpose, Electronic Product |
|---|---|---|---|
| Accuracy: | +/-1% ~5% | Operating Temperature: | -50-200 Degrees Celsius |
| Resistance Tolerance: | 10%-0.15% | Operating Range: | -50~200c |
| Highlight: | Surface Mount SMD NTC Thermistor,5V SMD NTC Thermistor,12V Surface Mount Varistor |
||

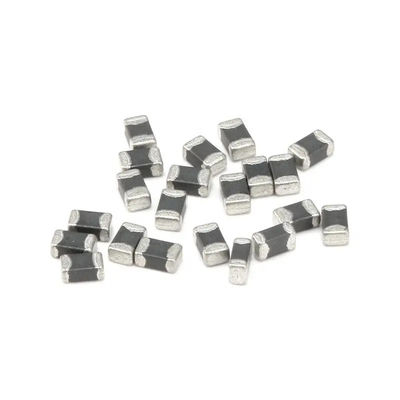

SMD Varistor 5V 8V 12V 18V 25V 30V 42V Multiple Specifications Volume 0402 0603 1206 1210 1812
What are the main functions, characteristics and application range of SMD chip thermistor?
Features: High precision, no leads, small size, excellent solderability, high stability. Features: multilayer structure allows different resistance values in the same B constant; ultra-small size, low capacitance, high B value; glass coating for long-term reliability; non-polarized for installation; suitable for wave soldering and reflow weld.
Applications: temperature compensation of crystal oscillators (TCXO); temperature compensation of personal computers; temperature detection of CPU and storage devices; temperature detection of battery packs; temperature compensation of LCD contrast; temperature compensation and sensing of car audio equipment (CD , MD, tuner).
Specification
1. Professional Varistorr supplier. SMD series
2. Wide parameter range for your choice.
3. High quality guaranteed ISO9001:2008 quality approve
4. Application: Electronic products, new products, new designs.
5.Technical support and professional recommendation
| type |
size L×W×T(mm) |
R25 (kΩ) | B(25/50) (K) |
allowable working current (25℃) (mA) |
Thermal time constant
|
| QN0201 | 0.60×0.30×0.30 | 1.0～220 | 3380～4485 | 0.06～1.00 | ＜3 |
| QN0402 | 1.00×0.50×0.50 | 1.0～680 | 3380～4500 | 0.03～1.00 | ＜3 |
| QN0603 | 1.60×0.80×0.80 | 1.0～1300 | 3380～4500 | 0.02～1.00 | ＜5 |
| QN0805 | 2.00×1.25×0.85 | 1.0～1300 | 3380～4500 | 0.02～1.40 | ＜5 |
| QN1206 | 3.20×1.60×0.85 | 10～1300 | 3380～4500 | 0.03～0.66 | ＜8 |
| P/N | R@25℃ | Tolerance(%) | Beta Value | Tolerance(%) |
| MF11-050 | 5 | ±5 ±10 ±20 | 2400 | ±5 ±10 |
| MF11-100 | 10 | 2800 | ||
| MF11-150 | 15 | 2800 | ||
| MF11-200 | 20 | 2800 | ||
| MF11-220 | 22 | 2800 | ||
| MF11-270 | 27 | 3000 | ||
| MF11-330 | 33 | 3000 | ||
| MF11-390 | 39 | 3000 | ||
| MF11-470 | 47 | 3100 | ||
| MF11-500 | 50 | 3100 | ||
| MF11-680 | 68 | 3100 | ||
| MF11-820 | 82 | 3100 | ||
| MF11-101 | 100 | 3200 | ||
| MF11-121 | 120 | 3200 | ||
| MF11-151 | 150 | 3200 | ||
| MF11-201 | 200 | 3200 | ||
| MF11-221 | 220 | 3500 | ||
| MF11-271 | 270 | 3500 | ||
| MF11-331 | 330 | 3500 | ||
| MF11-391 | 390 | 3500 | ||
| MF11-471 | 470 | 3500 | ||
| MF11-501 | 500 | 3500 | ||
| MF11-561 | 560 | 3500 | ||
| MF11-681 | 680 | 3800 | ||
| MF11-821 | 820 | 3800 | ||
| MF11-102 | 1000 | 3800 | ||
| MF11-122 | 1200 | 3800 | ||
| MF11-152 | 1500 | 3800 | ||
| MF11-202 | 2000 | 4000 | ||
| MF11-222 | 2200 | 4000 | ||
| MF11-272 | 2700 | 4000 | ||
| MF11-302 | 3000 | 4000 | ||
| MF11-332 | 3300 | 4000 | ||
| MF11-392 | 3900 | 4000 | ||
| MF11-472 | 4700 | 4050 | ||
| MF11-502 | 5000 | 4050 | ||
| MF11-562 | 5600 | 4050 | ||
| MF11-682 | 6800 | 4050 | ||
| MF11-822 | 8200 | 4050 | ||
| MF11-103 | 10000 | 4050 | ||
| MF11-123 | 12000 | 4050 | ||
| MF11-153 | 15000 | 4150 | ||
| MF11-203 | 20000 | 4300 | ||
| MF11-303 | 30000 | 4300 | ||
| MF11-473 | 47000 | 4300 | ||
| MF11-503 | 50000 | 4300 | ||
| MF11-683 | 68000 | 4300 | ||
| MF11-104 | 100000 | 4500 | ||
| MF11-124 | 120000 | 4700 | ||
| MF11-154 | 150000 | 4700 | ||
| MF11-204 | 200000 | 4700 | ||
| MF11-304 | 300000 | 4700 | ||
| MF11-504 | 500000 | 4800 | ||
| MF11-105 | 1000000 | 4900 |
1.TCXO,Temperature compensating circuit of LCD
2.Temperature sensing in rechargeable batteries and chargers/CPU
3.IC and semiconductor protecting.
4.Printer temperature compensating circuit. Player Driver
5.Telecom exchanger
6.DC/AC transformer and HIC over heat protecting.
|
Part No.
|
R25℃
(KΩ)
|
B(K)
25/50℃
|
Rated Power @25℃(mW)
|
Dissipation Factor(δ)
(mW/℃)
|
Thermal time
Constant (S)
|
|
TS502□3274A
|
5.0
|
3274
|
10-20
|
2-4
|
5-20
|
|
TS502□3435B
|
5.0
|
3435
|
10-20
|
2-4
|
5-20
|
|
TS502□3470A
|
5.0
|
3470
|
10-20
|
2-4
|
5-20
|
|
TS502□3950A
|
5.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS103□3274A
|
10.0
|
3274
|
10-20
|
2-4
|
5-20
|
|
TS103□3435B
|
10.0
|
3435
|
10-20
|
2-4
|
5-20
|
|
TS103□3470A
|
10.0
|
3470
|
10-20
|
2-4
|
5-20
|
|
TS103□3950A
|
10.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS103□4100A
|
10.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS153□3950A
|
15.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS153□4100A
|
15.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS203□3950A
|
20.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS203□4100A
|
20.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS223□4200A
|
22.0
|
4200
|
10-20
|
2-4
|
5-20
|
|
TS403□3928A
|
40.0
|
3928
|
10-20
|
2-4
|
5-20
|
|
TS503□3950A
|
50.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS503□4100A
|
50.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS104□3950A
|
100.0
|
3950
|
10-20
|
2-4
|
5-20
|
|
TS104□4100A
|
100.0
|
4100
|
10-20
|
2-4
|
5-20
|
|
TS104□4400A
|
100.0
|
4400
|
10-20
|
2-4
|
5-20
|
Negative temperature coefficient thermistor, also known as NTC thermistor, is a kind of sensor resistance whose resistance value decreases with the increase of temperature. Widely used in various electronic components, such as temperature sensors, resettable fuses and self-adjusting heaters, etc.
