Product Details:
|
| Product Name: | MF72 Series NTC Thermistor | Resistance Range（25℃): | 16 Ohm |
|---|---|---|---|
| Maximum Steady State Current(A): | 4A | Diameter: | 15mm |
| Tolerance: | ±20% | Operating Temperature Range: | -40°C To +170°C |
| Feature:: | Small Size, Strong Power | Terminal Type: | Radial, |
| Lead Wire Material: | Tinned Copper Clad Steel Wire | Heat Dissipation Coefficient(mv/℃) 12(mv/℃): | 19(mv/℃) |
| Time Constant(S): | 77（S) | Maximum Current Residual Resistance: | 307（mΩ) |
| Highlight: | MF72 NTC Thermistor 10 Ohm,NTC Thermistor for Adapter Power Supply,5A 15mm NTC Thermistor |
||

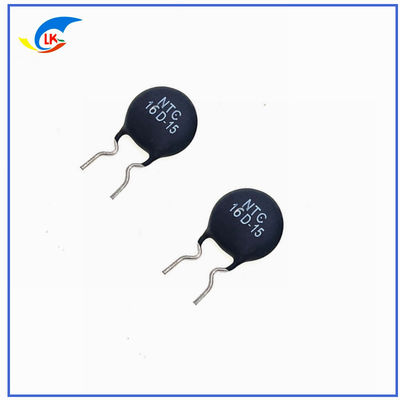

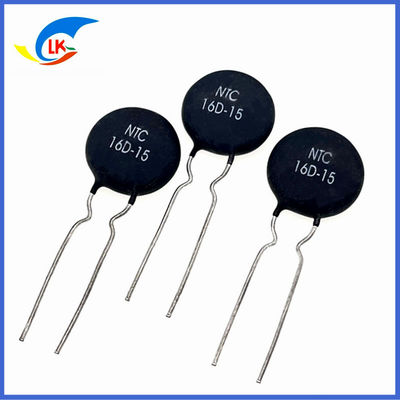

MF72 NTC Thermistor 16D-15 16 Ohm 4A 15 Mm Inrush Current Suppressor For UPS Power SupplyMF72 Power NTC Thermistor Series
The main function of the MF72 series power NTC thermistor is to provide surge current suppression for sensitive electronics. Connecting the MF72 in series with the power supply will limit the current surge that is usually created when turning on. Once the circuit is powered on, the MF72 power NTC thermistor will quickly drop to a very low value, the power dissipation can be ignored and will not affect the normal operating current. Using the MF72 power NTC thermistor is one of the most cost-effective ways to suppress surge current and protect sensitive electronics from damage.
Applications:
• Can be installed in power circuits of:
• Power supplies and inverters
• Uninterruptible power supplies
• Energy-saving lamps
• Electronic ballasts
• Filament protection for various lamps
• Some types of heaters
• For higher power circuits compared to MF73 high power NTC thermistor
Product Features:
• Small size and fast response
• High power handling capability and long-term stability and reliability
• Fast response to surge current
• High material constant (B value)
• Low residual resistance
• Wide operating temperature range -55 to + 200C
• R25 tolerance of ±20%
Specifications and dimensions:
Specifications:
|
DMAX
|
Dmax | Tmax | d | F1 | F2 | Straight Leads | Bend Leads | |
| ±0.05 | ±1 | ±1.5 | Lmin | Lmin | L2±2 | |||
| MF72□D5 | 7 | 5 | 0.6 / 0.45 | 5 / 2.5 | 3 | 25 | 17/5.0 | 8/5.0 |
| MF72□D7 | 9 | 5 | 0.6 | 5 | 3 | 25 | 17/5.0 | 8/5.0 |
| MF72□D9 | 11 | 5.5 | 0.8 / 0.6 | 7.5 / 5 | 5/3 | 25 | 17/5.0 | 8/5.0 |
| MF72□D11 | 13 | 5.5 | 0.8 | 7.5 / 5 | 5/3 | 25 | 17/5.0 | 8/5.0 |
| MF72□D13 | 15.5 | 6 | 0.8 | 7.5 | 5 | 25 | 17/5.0 | 8/5.0 |
| MF72□D15 | 17.5 | 6 | 0.8 | 10 / 7.5 | 5 | 25 | 17/5.0 | 8/5.0 |
| MF72□D20 | 22.5 | 7 | 1 | 10 / 7.5 | / | 25 | / | / |
| MF72□D25 | 27.5 | 8 | 1 | 10 / 7.5 | / | 25 | / | / |
Main technical parameters:
| D-5 NTC Thermistor | |||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 3D-5 | 3 | 1.3 | 0.177 | 7 | 16 | -40〜+ 150 | |
| 5D-5 | 5 | 1 | 0.353 | 7 | 16 | -40〜+ 150 | √ |
| 10D-5 | 10 | 0.7 | 0.771 | 7 | 16 | -40〜+ 150 | √ |
| 20D-5 | 20 | 0.5 | 1.154 | 6 | 17 | -40〜+ 150 | |
| 60D-5 | 60 | 0.3 | 1.878 | 6 | 17 | -40〜+ 150 | |
| 200D-5 | 200 | 0.1 | 18.7 | 5 | 17 | -40〜+ 150 | √ |
|
D-7 NTC Thermistor |
|||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 2.5D-7 | 2.5 | 3 | 0.132 | 11 | 27 | -40〜+ 150 | |
| 3D-7 | 3 | 2.5 | 0.145 | 11 | 27 | -40〜+ 150 | |
| 5D-7 | 5 | 2 | 0.283 | 9 | 23 | -40〜+ 150 | √ |
| 8D-7 | 8 | 1 | 0.539 | 9 | 28 | -40〜+ 150 | √ |
| 10D-7 | 10 | 1 | 0.616 | 9 | 23 | -40〜+ 150 | √ |
| 12D-7 | 12 | 1 | 0.816 | 9 | 23 | -40〜+ 150 | |
| 16D-7 | 16 | 0.7 | 1.003 | 8 | 23 | -40〜+ 150 | √ |
| 22D-7 | 22 | 0.6 | 1.108 | 8 | 23 | -40〜+ 150 | √ |
| 33D-7 | 33 | 0.5 | 1.485 | 8 | 23 | -40〜+ 150 | √ |
| 200D-7 | 200 | 0.2 | 11.65 | 7 | 21 | -40〜+ 150 | √ |
|
D-9 NTC Thermistor |
|||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 1.5D-9 | 1.5 | 5 | 0.3 | 11 | 36 | -40〜+ 170 | |
| 2.5D-9 | 2.5 | 4.5 | 0.06 | 11 | 36 | -40〜+ 170 | |
| 3D-9 | 3 | 4 | 0.12 | 11 | 35 | -40〜+ 170 | √ |
| 4D-9 | 4 | 3 | 0.19 | 11 | 35 | -40〜+ 170 | √ |
| 5D-9 | 5 | 3 | 0.21 | 11 | 34 | -40〜+ 170 | √ |
| 6D-9 | 6 | 2 | 0.315 | 11 | 34 | -40〜+ 170 | √ |
| 8D-9 | 8 | 2 | 0.4 | 11 | 32 | -40〜+ 170 | √ |
| 10D-9 | 10 | 2 | 0.458 | 11 | 32 | -40〜+ 170 | √ |
| 12D-9 | 12 | 1 | 0.652 | 11 | 32 | -40〜+ 170 | √ |
| 16D-9 | 16 | 1 | 0.802 | 11 | 31 | -40〜+ 170 | √ |
| 20D-9 | 20 | 1 | 0.864 | 11 | 30 | -40〜+ 170 | √ |
| 22D-9 | 22 | 1 | 0.95 | 11 | 30 | -40〜+ 170 | √ |
| 30D-9 | 30 | 1 | 1.022 | 11 | 30 | -40〜+ 170 | √ |
| 33D-9 | 33 | 1 | 1.124 | 11 | 30 | -40〜+ 170 | √ |
| 50D-9 | 50 | 1 | 1.252 | 11 | 30 | -40〜+ 170 | √ |
| 100D-9 | 100 | 0.7 | 1.356 | 11 | 28 | -40〜+ 170 | |
| 200D-9 | 200 | 0.5 | 1.485 | 10 | 28 | -40〜+ 170 | |
| 400D-9 | 400 | 0.2 | 1.652 | 9 | 25 | -40〜+ 170 | |
| D-11 NTC Thermistor | |||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 1D-11 | 1 | 5.5 | 0.07 | 13 | 46 | -40〜+ 170 | |
| 1.5D-11 | 1.5 | 5.5 | 0.085 | 13 | 46 | -40〜+ 170 | |
| 2.5D-11 | 2.5 | 5 | 0.095 | 13 | 43 | -40〜+ 170 | √ |
| 3D-11 | 3 | 5 | 0.1 | 13 | 43 | -40〜+ 170 | √ |
| 4D-11 | 4 | 4 | 0.15 | 13 | 44 | -40〜+ 170 | √ |
| 5D-11 | 5 | 4 | 0.156 | 13 | 45 | -40〜+ 170 | √ |
| 6D-11 | 6 | 3 | 0.24 | 13 | 45 | -40〜+ 170 | √ |
| 8D-11 | 8 | 3 | 0.255 | 14 | 47 | -40〜+ 170 | √ |
| 10D-11 | 10 | 3 | 0.275 | 14 | 47 | -40〜+ 170 | √ |
| 12D-11 | 12 | 2 | 0.462 | 14 | 48 | -40〜+ 170 | √ |
| 16D-11 | 16 | 2 | 0.47 | 14 | 50 | -40〜+ 170 | √ |
| 20D-11 | 20 | 2 | 0.512 | 15 | 52 | -40〜+ 170 | √ |
| 22D-11 | 22 | 2 | 0.563 | 15 | 52 | -40〜+ 170 | √ |
| 30D-11 | 30 | 1.5 | 0.667 | 15 | 52 | -40〜+ 170 | √ |
| 33D-11 | 33 | 1.5 | 0.734 | 15 | 52 | -40〜+ 170 | √ |
| 50D-11 | 50 | 1.5 | 1.021 | 15 | 52 | -40〜+ 170 | √ |
| 60D-11 | 60 | 1.5 | 1.215 | 15 | 52 | -40〜+ 170 | √ |
| 80D-11 | 80 | 1.2 | 1.656 | 15 | 52 | -40〜+ 170 | √ |
| D-13 NTC Thermistor | |||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 1.3D-13 | 1.3 | 7 | 0.062 | 13 | 60 | -40〜+ 200 | √ |
| 1.5D-13 | 1.5 | 7 | 0.073 | 13 | 60 | 40〜+ 200 | √ |
| 2.5D-13 | 2.5 | 6 | 0.088 | 13 | 60 | 40〜+ 200 | √ |
| 3D-13 | 3 | 6 | 0.092 | 14 | 60 | 40〜+ 200 | √ |
| 4D-13 | 4 | 5 | 0.12 | 15 | 67 | 40〜+ 200 | √ |
| 5D-13 | 5 | 5 | 0.125 | 15 | 68 | 40〜+ 200 | √ |
| 6D-13 | 6 | 4 | 0.17 | 15 | 65 | 40〜+ 200 | √ |
| 7D-13 | 7 | 4 | 0.188 | 15 | 65 | 40〜+ 200 | √ |
| 8D-13 | 8 | 4 | 0.194 | 15 | 60 | 40〜+ 200 | √ |
| 10D-13 | 10 | 4 | 0.206 | 15 | 65 | 40〜+ 200 | √ |
| 12D-13 | 12 | 3 | 0.316 | 16 | 65 | 40〜+ 200 | √ |
| 15D-13 | 15 | 3 | 0.335 | 16 | 60 | 40〜+ 200 | √ |
| 16D-13 | 16 | 3 | 0.338 | 16 | 60 | 40〜+ 200 | √ |
| 20D-13 | 20 | 3 | 0.372 | 16 | 65 | 40〜+ 200 | √ |
| 30D-13 | 30 | 2.5 | 0.517 | 16 | 65 | 40〜+ 200 | √ |
| 47D-13 | 47 | 2 | 0.81 | 17 | 65 | 40〜+ 200 | √ |
| 120D-13 | 120 | 1.2 | 2.124 | 17 | 65 | 40〜+ 200 | √ |
|
D-15 NTC Thermistor |
|||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 1.3D-15 | 1.3 | 8 | 0.048 | 18 | 68 | -40〜+ 200 | √ |
| 1.5D-15 | 1.5 | 8 | 0.052 | 18 | 69 | -40〜+ 200 | √ |
| 2.5D-15 | 2.5 | 7 | 0.065 | 18 | 76 | -40〜+ 200 | √ |
| 3D-15 | 3 | 7 | 0.075 | 18 | 76 | -40〜+ 200 | √ |
| 5D-15 | 5 | 6 | 0.112 | 20 | 76 | -40〜+ 200 | √ |
| 6D-15 | 6 | 5 | 0.155 | 20 | 80 | -40〜+ 200 | √ |
| 7D-15 | 7 | 5 | 0.173 | 20 | 80 | -40〜+ 200 | √ |
| 8D-15 | 8 | 5 | 0.178 | 20 | 80 | -40〜+ 200 | √ |
| 10D-15 | 10 | 5 | 0.18 | 20 | 75 | -40〜+ 200 | √ |
| 12D-15 | 12 | 4 | 0.25 | 20 | 75 | -40〜+ 200 | √ |
| 15D-15 | 15 | 4 | 0.268 | 21 | 85 | -40〜+ 200 | √ |
| 16D-15 | 16 | 1 | 0.276 | 21 | 70 | -40〜+ 200 | √ |
| 20D-15 | 20 | 4 | 0.288 | 21 | 86 | -40〜+ 200 | √ |
| 30D-15 | 30 | 3.5 | 0.438 | 21 | 75 | -40〜+ 200 | √ |
| 47D-15 | 47 | 3 | 0.68 | 21 | 86 | -40〜+ 200 | √ |
| 120D-15 | 120 | 1.8 | 1.652 | 22 | 87 | -40〜+ 200 | √ |
| 220D-15 | 220 | 1 | 2.0358 | 24 | 90 | -40〜+ 20 | |
|
D-20 NTC Thermistor |
|||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 0.7D-20 | 7 | 11 | 0.018 | 27 | 89 | -40〜+ 200 | √ |
| 1D-20 | 1 | 10 | 0.023 | 27 | 89 | -40〜+ 200 | |
| 1.3D-20 | 1.3 | 9 | 0.037 | 27 | 88 | -40〜+ 200 | √ |
| 3D-20 | 3 | 8 | 0.055 | 25 | 88 | -40〜+ 200 | √ |
| 5D-20 | 5 | 7 | 0.087 | 25 | 87 | -40〜+ 200 | √ |
| 6D-20 | 6 | 6 | 0.113 | 25 | 103 | -40〜+ 200 | √ |
| 8D-20 | 8 | 6 | 0.142 | 25 | 105 | -40〜+ 200 | √ |
| 10D-20 | 10 | 6 | 0.162 | 24 | 102 | -40〜+ 200 | √ |
| 12D-20 | 12 | 5 | 0.195 | 24 | 100 | -40〜+ 200 | √ |
| 16D-20 | 16 | 5 | 0.212 | 24 | 100 | -40〜+ 200 | √ |
| 20D-20 | 20 | 4.5 | 0.345 | 23 | 115 | -40〜+ 200 | |
| 30D-20 | 30 | 4 | 0.492 | 23 | 115 | -40〜+ 200 | |
| 47D-20 | 47 | 3.5 | 0.675 | 23 | 120 | -40〜+ 200 | |
|
D-25 NTC Thermistor |
|||||||
|
Part Number MF72 NTC |
R25 (Ω) |
Max steady-state current(A) |
Approximate resistance value at maximum current Ω) |
Dissipation coefficient approx. (MW /℃) |
Thermal time constant approx. (S) |
Operating temperature (°C) | UL |
| 0.7D-25 | 0.7 | 12 | 0.014 | 30 | 120 | -40〜+ 200 | |
| 1.5D-25 | 1.5 | 10 | 0.027 | 30 | 121 | -40〜+ 200 | |
| 3D-25 | 3 | 9 | 0.044 | 32 | 124 | -40〜+ 200 | |
| 5D-25 | 5 | 8 | 0.07 | 32 | 125 | -40〜+ 200 | |
| 8D-25 | 8 | 7 | 0.114 | 33 | 125 | -40〜+ 200 | |
| 10D-25 | 10 | 7 | 0.13 | 32 | 127 | -40〜+ 200 | |
| 12D-25 | 12 | 6 | 0.156 | 32 | 126 | -40〜+ 200 | |
| 16D-25 | 16 | 6 | 0.16 | 35 | 126 | -40〜+ 200 | |
| 20D-25 | 20 | 4.5 | 0.184 | 35 | 126 | -40〜+ 200 | |
Note: Multiple resistance values and pin types can be customized on demand.
What is an inrush current suppression power type NTC thermistor
A power NTC thermistor can be a cost-effective device for limiting the amount of inrush current in a switching power supply or other equipment when power is first applied. A power NTC thermistor limits inrush current by acting as a power resistor that drops from a high cold resistance to a low hot resistance when heated by the current flowing through it.
The inrush current limiter supplies the NTC thermistor protection circuit with unnecessarily high current, suppressing high inrush current surges while its resistance remains negligible during continuous operation. Due to its low resistance in the operating state, power thermistors dissipate much less power than fixed resistors commonly used in this application.
Application of Inrush Current Suppression Power Type NTC Thermistor
Limiting inrush current, suitable for protection of switching power supplies, UPS power supplies, transformers, motors, various electric heating appliances, energy-saving lamps, ballasts, various power circuits, amplifiers, color displays, monitors, color TVs, filament protection, etc.
Power thermistor elements can also be used for soft starting of motors, for example, in vacuum cleaners with a continuous current of up to 20 A.
Inrush current suppression power type NTC thermistor advantages:
· Low-cost solid-state device for suppressing inrush current.
· Minimizes line current distortion and radio noise.
· Protects switches, rectifier diodes and smoothing capacitors from premature failure.
· Prevents false fuse blowing.
Inrush current suppression power type NTC thermistor features:
· Resin coated disc thermistor with non-insulated leads.
· Suitable for AC and DC circuits up to 265 V (rms).
· Wide range of resistances, currents and sizes.
· Excellent mechanical strength.
· Suitable for PCB mounting.
Several factors to consider when selecting an inrush current suppression power NTC thermistor
1) Maximum operating current > actual operating current in the power circuit
2) At 25°CRated zero power resistance, E: loop voltage, Im: surge current
For conversion power, recovery power, switching power, UPS power, Im = 100 times the operating current For filaments, heaters, Im = 30 times the operating current
3) The larger the B value, the smaller the residual resistance and the lower the operating temperature.
4) Generally speaking, the larger the time constant and dissipation coefficient, the larger the NTC thermal capacity, and the stronger the surge current suppression capability of the NTC thermistor.
Inrush Current Suppression Power Type NTC Thermistor Application Notes
1) For inrush current limiting, the NTC thermistor must be connected in series with the load circuit. Several inrush current limiters can also be connected in series for higher damping. Inrush current limiters must not be connected in parallel.
2) Generally, inrush current limiters need time to return to a cold state, where they can provide adequate inrush current limiting due to their high resistance. The cooling time depends on the ambient conditions.
3) It should be taken into account that the surrounding area of the NTC thermistor may become hot. Make sure that adjacent components are kept at a sufficient distance from the thermistor to ensure a proper cooling time for the thermistor.
4) Make sure that the design operating temperature of the adjacent materials is comparable to the surface temperature of the thermistor. Make sure that the surrounding components and materials can withstand this temperature.
5) Ensure that the thermistor is adequately ventilated to avoid overheating.
6) Avoid contamination of the thermistor surface.
7) Avoid contact of the NTC thermistor with any liquids and solvents. M
| Because the thermistor is basically customized products, the price of goods is not the original price, the price is subject to the formal quotation. | |
| Features | RoHS compliant |
| Halogen-Free (HF) series are available | |
| Body size: Ф5mm | |
| Radial lead resin coated | |
| Operating temperature range: -30℃~+125℃ | |
| Wide resistance range | |
| Cost effective | |
| Recommended Applications | Home appliances;Automotive electronics; Computers;Switch mode power supplies;Adapters |
|
|
Storage Temperature: -10℃~+40℃ |
| Relative Humidity: ≦75%RH | |
| Keep away from corrosive atmosphere and sunlight. | |
| Period of Storage | 1 year |
| P/N | R@25℃ | Tolerance(%) | Beta Value | Tolerance(%) |
| MF11-050 | 5 | ±5 ±10 ±20 | 2400 | ±5 ±10 |
| MF11-100 | 10 | 2800 | ||
| MF11-150 | 15 | 2800 | ||
| MF11-200 | 20 | 2800 | ||
| MF11-220 | 22 | 2800 | ||
| MF11-270 | 27 | 3000 | ||
| MF11-330 | 33 | 3000 | ||
| MF11-390 | 39 | 3000 | ||
| MF11-470 | 47 | 3100 | ||
| MF11-500 | 50 | 3100 | ||
| MF11-680 | 68 | 3100 | ||
| MF11-820 | 82 | 3100 | ||
| MF11-101 | 100 | 3200 | ||
| MF11-121 | 120 | 3200 | ||
| MF11-151 | 150 | 3200 | ||
| MF11-201 | 200 | 3200 | ||
| MF11-221 | 220 | 3500 | ||
| MF11-271 | 270 | 3500 | ||
| MF11-331 | 330 | 3500 | ||
| MF11-391 | 390 | 3500 | ||
| MF11-471 | 470 | 3500 | ||
| MF11-501 | 500 | 3500 | ||
| MF11-561 | 560 | 3500 | ||
| MF11-681 | 680 | 3800 | ||
| MF11-821 | 820 | 3800 | ||
| MF11-102 | 1000 | 3800 | ||
| MF11-122 | 1200 | 3800 | ||
| MF11-152 | 1500 | 3800 | ||
| MF11-202 | 2000 | 4000 | ||
| MF11-222 | 2200 | 4000 | ||
| MF11-272 | 2700 | 4000 | ||
| MF11-302 | 3000 | 4000 | ||
| MF11-332 | 3300 | 4000 | ||
| MF11-392 | 3900 | 4000 | ||
| MF11-472 | 4700 | 4050 | ||
| MF11-502 | 5000 | 4050 | ||
| MF11-562 | 5600 | 4050 | ||
| MF11-682 | 6800 | 4050 | ||
| MF11-822 | 8200 | 4050 | ||
| MF11-103 | 10000 | 4050 | ||
| MF11-123 | 12000 | 4050 | ||
| MF11-153 | 15000 | 4150 | ||
| MF11-203 | 20000 | 4300 | ||
| MF11-303 | 30000 | 4300 | ||
| MF11-473 | 47000 | 4300 | ||
| MF11-503 | 50000 | 4300 | ||
| MF11-683 | 68000 | 4300 | ||
| MF11-104 | 100000 | 4500 | ||
| MF11-124 | 120000 | 4700 | ||
| MF11-154 | 150000 | 4700 | ||
| MF11-204 | 200000 | 4700 | ||
| MF11-304 | 300000 | 4700 | ||
| MF11-504 | 500000 | 4800 | ||
| MF11-105 | 1000000 | 4900 |
Negative temperature coefficient thermistor, also known as NTC thermistor, is a kind of sensor resistance whose resistance value decreases with the increase of temperature. Widely used in various electronic components, such as temperature sensors, resettable fuses and self-adjusting heaters, etc.
Application·Scope
Power NTC Thermistor is the perfect protector for high-power electronic devices. It features a small size and strong power, and can operate in a temperature range from -40°C to +125°C, with a tolerance of ±20%. This MF72 power type negative temperature coefficient thermistor (NTC) can also be used for storage in the same temperature range. This high-performance NTC thermistor is an ideal choice for protecting your electronic devices.
| Property | MF72 Power Type NTC Thermistor |
|---|---|
| Usage | Surge Current Protection |
| Lead Wire Material | Tinned Copper Clad Steel Wire |
| Terminal Type | Radial |
| Storage Temperature Range | -40°C to +125°C |
| Tolerance | ±20% |
| Application | Electronic |
| Resistance Range (25°C) | 0.5Ω to 400Ω |
| Operating Temperature Range | -40°C to +125°C |
| Lead Wire Length | 3mm to 30mm |
| Feature | Small Size, Strong Power, Inrush Current Suppression |
LIN KUN Power NTC Thermistor MF72 is designed to provide overcurrent protection for high power applications, with RoHS and UL certifications, it is highly reliable and effective. This product is made of tinned copper clad steel wire with small size, strong power and lead wire length from 3mm to 30mm, radial terminal type. It has a storage temperature range of -40°C to +125°C. It is available in 500PCS/Bag with minimum order quantity of 500PCS with a negotiable price and delivery time of 5-7 days. It has a high supply ability of 1000000PCS/Month with payment terms of D/P, T/T,Paypal, Western Union. LIN KUN Power NTC Thermistor MF72 is the perfect choice for high power applications, providing reliable and effective overcurrent protection.
Brand Name: LIN KUN
Model Number: MF72
Place of Origin: China
Certification: RoHS UL
Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: 500PCS/Bag
Delivery Time: 5-7 Days
Payment Terms: D/P, T/T,Paypal, Western Union
Supply Ability: 1000000PCS/Month
Resistance Range(25℃): 0.5Ω To 400Ω
Temperature Range: -40°C To +200°C
Tolerance: ±20%
Storage Temperature Range: -40°C To +125°C
Usage: Surge Current Protection
LIN KUN MF72 Power NTC Thermistor provides high current protection and is used for surge current protection. It features a resistance range of 0.5Ω to 400Ω, temperature range from -40°C to +200°C and storage temperature range from -40°C to +125°C. It is RoHS UL certified and has a tolerance of ±20%.
Power NTC Thermistor provides technical support and services to ensure that our customers are able to use our products to their fullest potential. Our technical support team is available to assist customers with any issues they may have with our products. We also offer a wide range of services, such as installation and repair services, to ensure that our customers are able to maintain and operate our products safely and effectively.
In addition to technical support and services, we also offer training programs to help our customers better understand and utilize our products. Our training programs are designed to provide comprehensive and in-depth knowledge about our products, as well as how to use them in various applications. We also provide online resources to help our customers find the answers they need quickly and easily.
Power NTC Thermistor is shipped in a box with the following dimensions: length: 23 cm, width: 30 cm, height: 10 cm. The thermistor is placed in a foam holder and protected by anti-static material. The box is sealed with tape and labeled with the product name and model number. The box is then placed in a cardboard shipping box with the dimensions: length: 35 cm, width: 45 cm, height: 17 cm. The cardboard box is then sealed with tape and labeled with the product name and model number.
Contact Person: Ms. Huang
Tel: 13423305709
