Product Details:
|
| Product Name:: | Ceramic Gas Discharge Tube GDT | Shape: | SMD Type |
|---|---|---|---|
| Size: | 3.2 X 4.5 Mm*2.7 (4532) | Impulse Spark Over Voltage (1kv/Μs):: | ≤600V |
| Mounting Type:: | Surface Mount | AC Discharge Current:: | 2A(50Hz 1s 10times) |
| Impulse Discharge Current:: | 2KA (8/20μs 10times) | Electrode Capacitance 1MHz 0.5V:: | ≤1PF |
| Use: | Communication | High Light:: | SMD1812 Patch GDT Ceramic Gas Discharge Tube Lightning Protection Tube 600V2KA 4532 Ceramic Gas Discharge Tube |
| Highlight: | GDT Ceramic Gas Discharge Tube,SMD1812 electric discharge tube,Ceramic Gas Discharge Tube |
||
Product performance:
Ceramic gas discharge tube is the most widely used switching device in lightning protection equipment. Whether it is lightning protection for AC or DC power supplies or lightning protection for various signal circuits, it can be used to discharge lightning current into the earth. Its main characteristics are: large discharge current, small inter-electrode capacitance (≤3pF), high insulation resistance (≥109Ω), large breakdown voltage dispersion (±20%), and slightly slower reaction speed (the shortest is 0.1~0.2μs). ). According to the number of electrodes, there are two types: diode discharge tubes and triode discharge tubes (equivalent to two diode discharge tubes connected in series). Its appearance is cylindrical, and it has two structural forms: with and without leads (some also have a protection card for short circuit when overheating).

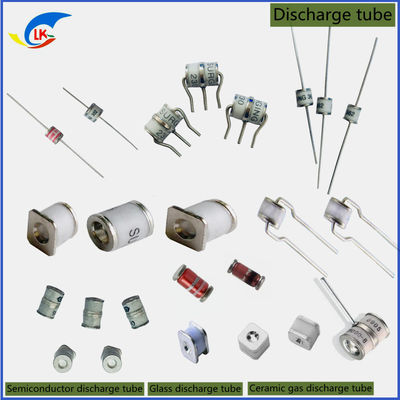

Glass-sealed discharge tube (product description) Micro surge absorber is an overvoltage protection device that suppresses abnormal high-voltage pulses and protects low-voltage circuits from damage by instantaneous high-voltage (such as lightning, high-voltage noise from the power grid, high-voltage static electricity, etc.) . It is a guided protection component developed using the principle of micro-gap discharge and the activation of semiconductor chips. It has the advantages of fast response, impact resistance, stable performance, good repeatability and long life.
A semiconductor discharge tube (also called a solid discharge tube) is a PNPN component, which is regarded as a free voltage-controlled thyristor without a gate electrode. When the voltage exceeds its off-state peak voltage (or avalanche voltage) When the semiconductor discharge occurs, the transient voltage will be clamped to within the switching voltage (or breakover voltage) value of the component. When the voltage continues to increase, the semiconductor discharge tube enters the conduction state due to the negative resistance effect. Only when the current is less than the holding current, the component resets and returns to its high impedance state.

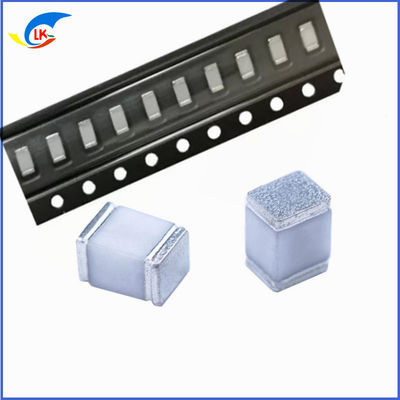

SMD1812(4532) Patch GDT Ceramic Gas Discharge Tube Lightning Protection Tube SMD600XM Ceramic Gas Discharge Tube
|
Catalog No. |
DC Spark Over Voltage (100v/s)V
|
Impulse Spark Over Voltage (1kv/μs)V |
Insulation Resistance GΩ |
Electrode Capacitance 1MHz 0.5V PF |
Impulse Discharge Current (8/20μs 10 times)
|
AC Discharge Current (50Hz 1s 10 times)A
|
| 4DS075H | 075±30% | ≤700 | ≥1 | ≤1 | 2KA | 2A |
| 4DS090H | 090±30% | ≤700 | ≥1 |
≤1 | 2KA | 2A |
| 4DS150H | 150±30% | ≤700 | ≥1 |
≤1 | 2KA | 2A |
| 4DS200H | 200±30% | ≤800 | ≥1 | ≤1 | 2KA | 2A |
| 4DS230H | 230±30% | ≤800 | ≥1 | ≤1 | 2KA | 2A |
| 4DS300H | 300±30% | ≤1000 | ≥1 | ≤1 | 2KA | 2A |
| 4DS350H | 350±30% | ≤1000 | ≥1 | ≤1 | 2KA | 2A |
| 4DS400H |
400±30% | ≤1100 | ≥1 | ≤1 | 2KA | 2A |
| 4DS470H |
470±30% | ≤1200 | ≥1 | ≤1 | 2KA | 2A |
| 4DS600H |
600±30% | ≤1400 | ≥1 | ≤1 | 2KA | 2A |
Electrical Ratings Of The SMD Ceramic Gas Discharge Tube 4.5x3.2x2.7mm
| Items | Test Condition/Description | Requirement |
| DC Spark-over Voltage | The voltage is measured with voltage ramp dv/dt=100V/s. | To meet the specified value |
| Maximum Impulse Spark-over Voltage | The maximum impulse spark-over voltage is measured with voltage ramp dv/dt=1000V/μs. | |
| Insulation Resistance | The resistance of gas tube shall be measured between two electrodes. | |
| Capacitance |
The capacitance of gas tube shall be measured between two electrodes. Test frequency: 1MHz |
|
| Impulse Discharge Current | Maximum 8/20μs surge current that can be applied between two electrodes, 5 positive and 5 negative surges, with 3 minutes interval tim. | |
| Impulse Withstanding Voltage | The maximum 10/700μs surge that can be applied to the Gas Tube, 5 positive and 5 negative surges, with 1 minute interval time, without causing the DC spark-over voltage to change more than 25% from its initial value. |
Gas Discharge Tube Family
1. Reference implementation standards: ITU-T K.12, GB/T9043-2008 "General Technical Conditions for Gas Discharge Tubes for Overvoltage Protection of Communication Equipment".
2. Withstand AC (50 Hz) current up to 2A. During the test, the AC voltage should be greater than the upper limit of DC breakdown voltage.
3. The test frequency of inter-electrode capacitance is 1MHz and the test voltage is 0.5V.
4. Working and storage temperature: -40°C~+85°C
5. Packaging: The product is packed in tape and reel, 2500PCS/reel
Gas Discharge Tube (GDT) is a three-pole discharge device that provides reliable circuit protection for lightning and surge protection. It features a fast response time of 1kv/μs, a surge current of 8x10mm, and a DC spark over voltage of 230v (100v/s). GDTs are widely used in many industrial and commercial applications, such as telecommunications, power supply, and surge suppression. The three-pole discharge tube is able to effectively and quickly dissipate large current surges by releasing the stored energy during an overvoltage event. This ensures the safety and reliability of the power system and helps extend the service life of the GDT.
| Parameter | Value |
|---|---|
| Product Name | Ceramic Gas Discharge Tube GDT |
| Suppressor Type | 3 Electrode Gas Discharge Tube |
| Diode discharge tube | SMD 3 Gas Discharge Tube, 3 Pin GDT Gas Discharge Tube |
| Solid discharge tube | 230V 20% 10kA Gas Tube Arrester |
| Gas-Discharge Device | High Light |
| Electrode Capacitance 1MHz 0.5V | ≤1.5PF |
| Surge Current | 8x10mm |
| Maximum Surge Current | 10 KA |
| Insulation Resistance | ≥1GΩ |
| Impulse Spark Over Voltage (1kv/Μs) | ≤600V |
| DC Spark Over Voltage | 230V(100v/s) |
| AC Discharge Current | 10A(50Hz 1s 10times) |
LINKUN 8TL230M Gas-Discharge Tube is a type of gas-discharge component, which is also known as a solid discharge tube. It is designed with 3pin and 8x10mm and has a maximum surge current of 10KA. It has an insulation resistance of ≥1GΩ. It is a reliable and effective component for a wide range of applications and scenarios.
In industrial applications, LINKUN 8TL230M Gas-Discharge Tube is widely used for surge protection, lightning protection, over-voltage protection, over-current protection and over-temperature protection. It is also a popular choice for high-voltage transformers, electronic devices, communication systems and automotive electronics.
In commercial applications, LINKUN 8TL230M Gas-Discharge Tube is widely used in high-frequency switch power supplies, computer peripheral devices, audio-visual equipment, radio and television equipment, etc. It provides reliable protection from over-voltage, over-current, over-temperature and other conditions.
In residential applications, LINKUN 8TL230M Gas-Discharge Tube is used for protection against over-voltage, over-current, over-temperature and other conditions. It is widely used in household appliances, power tools, lighting fixtures, and other electronic equipment.
LINKUN 8TL230M Gas-Discharge Tube is a reliable and effective solution for a wide range of applications and scenarios. With its superior performance, it is an ideal choice for electrical and electronic equipment, providing reliable protection from over-voltage, over-current, over-temperature and other conditions.
Brand Name: LINKUN
Model Number: 8TL230M
Place of Origin: Dongguan, Guangdong, China
Impulse Spark Over Voltage (1kv/Μs): ≤600V
Maximum Surge Current: 10 KA
Number Of Pin: 3pin
Surge Current: 8x10mm
Insulation Resistance: ≥1GΩ
Gas Discharge Tube is a reliable product that offers technical support and service. We provide comprehensive support for our customers, including installation, troubleshooting, product training and technical support. Our technical support team is available 24/7 to answer any questions and provide assistance. In addition, we offer a variety of training courses to ensure that our customers have the knowledge and skills to properly operate and maintain their Gas Discharge Tube product.
For customers in need of service, we offer a wide range of services, including repairs, maintenance, and upgrades. Our team of qualified technicians is available to provide on-site or remote service, depending on the customer's needs. We also offer an extended warranty for our Gas Discharge Tube product, which provides additional protection and peace of mind for our customers.
At Gas Discharge Tube, we strive to provide the best customer service and technical support possible. We are committed to providing our customers with the highest quality products and services. If you have any questions or need assistance, please do not hesitate to contact us.
Packaging and Shipping for Gas Discharge Tube:
Gas Discharge Tube should be packaged and shipped in a manner that protects it from shock, vibration, dust, humidity, corrosive gases, and other environmental conditions. The packaging should be designed to protect the tube from damage during transit, while in storage, and while in use.
The packaging materials should be chosen based on the size, shape, and weight of the Gas Discharge Tube. Packaging materials should also be chosen to protect the tube from shock, vibration, dust, humidity, corrosive gases, and other environmental conditions.
When shipping Gas Discharge Tube, it should be packed with appropriate cushioning material to protect it from shock. The packaging should also be designed to absorb any shock or vibration that may occur during transit or while in storage.
