Product Details:
|
| Product Name: | Light Dependent Resistor | Model: | GM12516 |
|---|---|---|---|
| Lead Length: | 12mm | Bright Resistor(10Lux): | （5-10）KΩ |
| Dark Resistance: | 0.5MΩ | Pressure Resistant: | 150V DC |
| Power Consumptionmw: | 90mw | Environment Temperature℃: | -30~+70°C |
| Response Time(ms): | Rise30ms Decline30ms | ||
| Highlight: | 12mm CdS Photoresistor,CdS Photoresistor For Toys |
||

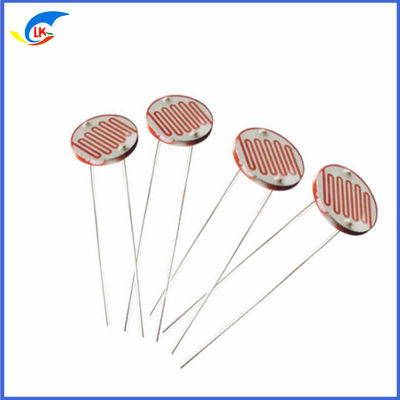

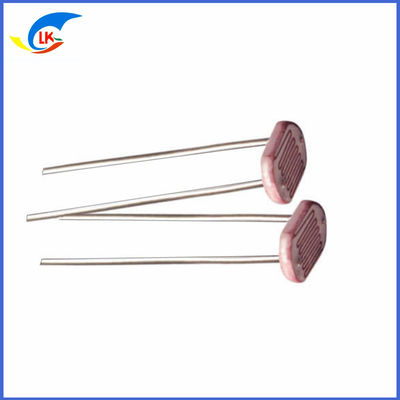

CdS photoresistor 125 series GM12516 bright resistance 5-10KΩ for toys, lamps, photography...
CdS series photoresistor 12MM
A photoresistor is a resistor made of semiconductor material, and its resistivity changes with changes in illumination. In order to achieve the purpose of light control and light measurement, the electronic industry uses this characteristic to make photoresistor products with different shapes and light-receiving areas. This product is widely used in toys, lamps, photography and other industries.
Performance and features
Coated with epoxy
Good reliability
Small volume
High sensitivity
Quick response
Good spectrum characteristic
Application scope
Camera automation photometry
Indoor sunlight control
Photoelectric control
Optical control switch
Optical control lamp
Electronic toy
Annunciator
Optical control musicI.C
Electronic proverbial vlitional
Industrial control
Specifications
Packaging and precautions
The product is packaged in neutral packaging, with 200 pieces in small packaging and 1,000 pieces in large packaging:
Do not place the photoresistor in a humid or high-temperature environment:
Note that the lead welding position should be more than 4mm away from the ceramic base:
Test Conditions
1. Bright resistance: resistance value measured with 10Lux illumination under standard light source A (color temperature 2854K).
2. Dark resistance: refers to the resistance value at the 10th second after the light is turned off (OLux).
R10 and R100 are the brightness resistance values under 10Lux and 100Lux illumination respectively, and the tolerance of γ value is ±0.1
3,The γ value refers to the standard value under 10Lux and 100Lux illumination.
4,Maximum power loss: Maximum power loss when the ambient temperature is 25°C.
5,Maximum applied voltage: refers to the maximum voltage that can be continuously applied to the component in the dark.
——————————————————————————————————————————————
Page 2 of 4
Light Dependent Resistor(LDR) is a 3mm series photoresistor that has a peak sensitivity at 540nm. It has a max voltage of 150VDC and a lead length of 5mm. This model, GM5506, is a bright resistor with 10Lux of resistance ranging from 2KΩ to 5KΩ. It is an ideal component for applications that require a light-sensitive device, such as alarms or light-activated switches.
LDR is a reliable and widely used device, and has been developed for use in many industries. It features a high sensitivity to light, excellent stability, fast response, and long life. It is suitable for the detection of various illumination levels and can be used for a wide range of applications, such as light-activated switches, light sensors, alarms, and more.
Light Dependent Resistor is an ideal choice for applications that require a reliable and sensitive light-sensitive device. It offers excellent performance, stability, and long life. With its wide range of applications, it is an ideal component for various industries and projects.
| Property | Value |
|---|---|
| Product Name | Light Dependent Resistor |
| Model | GM5506 |
| Dark resistance | 0.2MΩ |
| Bright resistor(10Lux) | (2-5)KΩ |
| Spectrum peak (nm) | 540 |
| Lead Length (mm) | 5 |
| Max Voltage (V DC) | 150 |
| Power consumption (mw) | 90 |
| Response time (ms) | Rise 30ms Decline 30ms |
| Environment temperature (℃) | -30~+70°C |
The LINKUN Photoresistor 5506 is a Light-Sensitive Resistor and High-Sensitive Resistor designed for a wide range of applications in both indoor and outdoor environments. The GM55 series and 7mm series are especially suited for applications that require a fast response time and accurate light level detection. The Photoresistor 5506 has a unique design with a Lead Length of 5mm, a Response time of Rise30ms & Decline30ms, and a Dark Resistance of 0.2MΩ. It also has an Environment Temperature of -30~+70°C and its Spectrum Peak is at 540nm.
The Photoresistor 5506 is the perfect choice for applications that require precise light level detection and fast response times. Its low power consumption, small size, and easy installation make it perfect for a wide range of applications. Whether you’re looking for a reliable solution for light level detection in an indoor environment or a reliable solution for outdoor light level detection, the Photoresistor 5506 is the perfect choice for you.
Brand Name: LINKUN
Model Number: Photoresistor 5506
Place of Origin: Dongguan,Guangdong,China
Product Name: Light Dependent Resistor
Power consumptionmw: 90
Environment temperature℃: -30~+70°C
Spectrum peaknm: 540
Lead Length: 5mm
Our Light Dependent Resistor are widely used in GM55 series photoresistor, 7mm series photoresistor, 7mm series photoresistor, 15mm series photoresistor.
Light Dependent Resistor technical support and services include:
When shipping a Light Dependent Resistor, it is important to package the item securely.
The Light Dependent Resistor will be packaged in a sturdy box with foam inserts. This will protect the item from any shock or other damage during shipping.
We will ship the Light Dependent Resistor via a reputable courier service. The package will be tracked and insured to ensure safe delivery.
