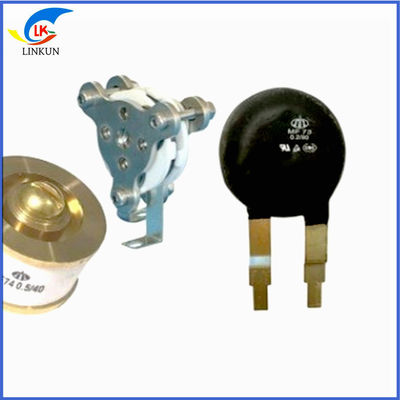

Product Details:
|
| Product Name:: | Super Power NTC Thermistor MF74 00.5/40 | Resistance: | R25℃=0.5OHM |
|---|---|---|---|
| Norminal Diameter: | 25mm | Imax:: | 40A |
| Operating Temperature:: | -55~+200C | Height:: | 20mm Max |
| Dissipation Factor:: | 118mW/C | Tolerance:: | 20% |
| High Light:: | High Power NTC Thermistor MF74 Series | ||
| Highlight: | UPS Power Supply NTC Thermistor,High Power NTC Thermistor,MF74 Series NTC Thermistor |
||
1.Product Features
Focus on the development and manufacture of NTC thermistors and temperature sensors
High-power NTC thermistor MF74 series
● Reliable structure, easy to install.
● Strong surge current suppression capability.
● Large steady-state current.
● Can work continuously under large steady-state current.
2.Dimension Of The Ultra Big Power NTC Thermistor MF73
3.Specification Of The Ultra Big Power NTC Thermistor MF73
| N0 | R25±20%(Ω) | Max steady state current Imax(A) | Approx R of Max current Rmax(Ω) | Thermal time constant (mW/C) | Thermal time constant (s) |
| MF74-0.5/40 | 0.5 | 40 | 0.00875 | 118 | 340 |
| MF74-1/32 | 1 | 32 | 0.0137 | 118 | 340 |
| MF74-2/25 | 2 | 25 | 0.024 | 120 | 340 |
| MF74-5/21 | 5 | 21 | 0.0364 | 123 | 350 |
| MF74-10/18 | 10 | 18 | 0.0555 | 125 | 360 |
| MF74-20/15 | 20 | 15 | 0.0745 | 125 | 345 |
4.The main technical parameters
| Part No. | R25 | Max Steady State Current | Approx. R of Max . Current | Dissi.Coef. | Thermal time Constant | Operating Temp. |
| (Ω) | Imax (A) | ℃ | (mW/"C) | (s) | (℃) | |
| 0.5/40 | 0.5 | 40 | 0.00875 | 118 | 340 | -55～+200 |
| 0. 7/36 . | 0.7 | 36 | 0.011 | 118 | 340 | |
| 1/32 | 1 | 32 | 0.0137 | 118 | 340 | |
| 1.3/27 | 1.3 | 27 | 0.0192 | 118 | 340 | |
| 1.5/27 | 1.5 | 27 | 0.0206 | 118 | 340 | |
| 2/25 | 2 | 25 | 0.024 | 120 | 340 | |
| 2.5/25 | 2.5 | 25 | 0.0252 | 120 | 350 | |
| 3/23 | 3 | 23 | 0.0293 | 123 | 350 | |
| 4/21 | 4 | 21 | 0.034 | 123 | 350 | |
| 5/21 | 5 | 21 | 0.0364 | 123 | 350 | |
| 6/18 | 6 | 18 | 0.0494 | 123 | 355 | |
| 8/18 | 8 | 18 | 0.0525 | 125 | 360 | |
| 10/18 | 10 | 18 | 0.0555 | 125 | 360 | |
| 12/15 | 12 | 15 | 0.0622 | 125 | 345 | |
| 16/15 | 16 | 15 | 0.0688 | 125 | 345 | |
| 20/15 | 20 | 15 | 0.0745 | 125 | 3.45 | |
| 25/15 | 25 | 15 | 0.0857 | 125 | 345 | |
| 30/12 | 30 | 12 | 0.117 | 125 | 345 |
5.Application Scope
*Conversion power supply, switching power supply, UPS power supply.
*Various types of high-power lighting fixtures.
*Electric heater.
The NTC Thermistor has a dissipation coefficient of 0.2mW/℃, which means it can dissipate 0.2mW of power for every degree Celsius of temperature change. This makes it suitable for use in low power applications where energy efficiency is critical. The maximum power rating for this product is 100mW, which means it can handle up to 100mW of power without getting damaged. The NTC Thermistor is designed to be mounted on the surface of a circuit board, which makes it easy to integrate into existing designs.
The NTC Thermistor provides an analog output signal that is proportional to the temperature being measured. This means that as the temperature increases, the output signal from the thermistor will also increase. This makes it easy to interface with other electronic components and systems. The analog output signal can be converted into a digital signal using an analog-to-digital converter (ADC) if required.
The MF11 temperature compensated thermistor is a type of NTC Thermistor that has a built-in compensation circuit. This compensation circuit is designed to provide accurate temperature sensing even in environments where the ambient temperature may fluctuate. The MF11 temperature compensated thermistor is ideal for applications where temperature accuracy is critical.
The MF5 Single-ended glass sealed thermistor is another type of NTC Thermistor that is designed for use in high-temperature environments. This thermistor is constructed using a glass sealed design that provides excellent stability and durability at high temperatures. The MF5 Single-ended glass sealed thermistor is ideal for applications where high-temperature sensing is required.
Overall, the NTC Thermistor is a highly versatile and reliable temperature sensing solution that is ideal for a wide range of applications. With its surface mount design, low power dissipation, and analog output signal, it is easy to integrate into existing designs and systems. Whether you need the accuracy of the MF11 temperature compensated thermistor or the high-temperature stability of the MF5 Single-ended glass sealed thermistor, the NTC Thermistor is sure to meet your needs.
| Parameter | Value |
|---|---|
| Norminal Diameter | 5mm, 7mm, 9mm, 11mm, 13mm, 15mm, 20mm, 25mm |
| Chip | NTC Thermistor |
| Dissipation Coefficient | 0.2mW/℃ |
| Mounting Type | Surface Mount |
| Lead Length | 30mm |
| Operating Temperature Range | -55°C To 125°C |
| Output Signal Type | Analog Type |
| Beta Value | 3100~4500 |
| Lead Wire Material | Copper Wire |
| Part Number | MF73T-1 2/25 |
The Lin Kun NTC Thermistor is available in different models and variations, including the MF73T-1 2/25 model. This thermistor has a thermal shock resistance of 300 cycles and a resistance of R25℃=2kΩ. It is an analog type temperature sensor that provides accurate and reliable temperature readings. The nominal diameter of the Lin Kun NTC thermistor is available in different sizes, including 5mm, 7mm, 9mm, 11mm, 13mm, 15mm, 20mm, and 25mm.
The Lin Kun NTC Thermistor is suitable for a wide range of applications and scenarios. It is commonly used in temperature sensing and control applications in the automotive, consumer electronics, and industrial sectors. It is particularly useful in applications where high accuracy and reliability are required.
The MF5 Single-ended glass sealed thermistor is a popular variation of the Lin Kun NTC Thermistor that is commonly used in the automotive industry. It is used for engine temperature sensing, coolant temperature sensing, and HVAC temperature sensing. The MF58 glass sealed thermistor is another popular variation that is commonly used in consumer electronics and industrial applications. It is used for temperature sensing and control in air conditioning systems, refrigerators, and other appliances.
The Lin Kun NTC Thermistor is also suitable for temperature compensation and temperature measurement applications. It is used in temperature compensation circuits for electronic devices and equipment. It is also used in temperature measurement applications in laboratories and research facilities.
Overall, the Lin Kun NTC Thermistor is a versatile and reliable temperature sensor that is suitable for a wide range of applications and scenarios. With its high accuracy, reliability, and affordability, it is an excellent choice for temperature sensing and control applications in various industries.
Choose between the MF52 temperature measuring thermistor, MF11 temperature compensated thermistor, or the MF11 temperature compensated thermistor to best suit your needs.
Our NTC Thermistor product comes with comprehensive technical support and services to ensure you get the most out of your purchase. Our team of experts is available to answer any questions you may have about the product, including installation, operation, and maintenance.
In addition, we offer repair and calibration services to help keep your NTC Thermistor functioning at peak performance. Our repair services are performed by certified technicians and we use only genuine replacement parts to ensure the highest level of quality.
If you require customized solutions, our team can work with you to design and develop NTC Thermistors that meet your specific needs. We also offer technical training to help you and your team develop the skills necessary to operate and maintain your NTC Thermistor.
