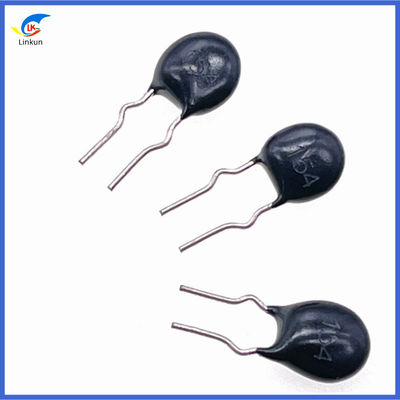

Product Details:
|
| Model: | MF11 Temperature Compensated NTC Thermistor | Resistance: | R25℃=15Ω 150Ω 1.5kΩ15kΩ 150kΩ |
|---|---|---|---|
| Beta Value: | 3100~4500 | Color:: | Green, Black |
| Resistance Value Accuracy(%): | ±5% ±10% ±20% | Lead Style: | Straight Lead; Bend Lead |
| Norminal Diameter: | Max 6.5mm | Lead Length: | 30mm |
| Highlight: | 15k ntc thermistor sensor,Temperature Compensation ntc thermistor sensor,termistor ntc 15k |
||
MF11 Temperature Compensated NTC Thermistor.pdf
NTC (negative temperature coefficient) thermistor is a heat-sensitive semiconductor resistor whose resistance value decreases with the increase of temperature, and the resistance temperature coefficient is in the range of -2%/k~-6%/k, about 10 times that of the metal resistance temperature coefficient. The change in the resistance value of the NTC thermistor can be caused by the change in the external ambient temperature, or it can be caused by the flow of current and its own heating. Its various uses are based on this property. NTC thermistors are composed of polycrystalline ceramics with mixed oxides. The conductive mechanism of this material is quite complex.
Dongguan Linkun electronic Technology Co., LTD is the domestic earlier production NTC thermistor professional manufacturers, the company produces the NTC thermistor is widely used in all kinds of handheld devices and miniaturization of electronic devices, are widely used in all kinds of temperature measurement and temperature compensation, the company production of NTC thermistor with low price, good quality, It can completely replace foreign brands such as Murata, TDK and EPCOS. 1. The scope of application: used for temperature measurement and general accuracy in measuring equipment, temperature compensation of transistor circuit. 2. Characteristics: MF11: B value error range is small, the resistance error range in 5% of the products, its consistency, good interchangeability. MF12: a wide range of impedance values maximum nominal resistance up to 2 m, stability is good.
used for temperature measurement and general accuracy in measuring equipment, temperature compensation of transistor circuit.
MF11: B value error range is small, the resistance error range in 5% of the products, its consistency, good interchangeability.
MF12: a wide range of impedance values maximum nominal resistance up to 2 m, stability is good.
Appearance structure and size:
Main technical parameters:
Time constant ≤ 30 s
Measuring power ≤0.1 Mw
Use temperature range – 55 to ~ + 125 ℃
B value and allowable deviations are shown in the table below
Dissipation coefficient 6 mW / ℃
Rated power 0.5 W
Product number:
|
Type |
25℃ when rated zero-power resistanc |
B (value) |
||
| resistance (Ω) | allowable deviation range (%) | (25/50 ℃) nominal value (K) | Allow deviation (%) | |
|
MF11
|
3.3～33 6800～68000 |
±5 ±10
|
2700 4250 |
±5 |
Note: Our company can also supply according to the special requirements of users
Reduced power consumption curve:
Ambient temperature (℃)
Rated power 0.5W
| Specification and model | Zero power resistance rated at 25℃ | Resistance value accuracy(%) | Value | B-value accuracy |
| MF11-050 | 5 | ±5 ±10 ±20 |
2400 | ±5 ±10 |
| MF11-100 | 10 | 2800 | ||
| MF11-150 | 15 | 2800 | ||
| MF11-200 | 20 | 2800 | ||
| MF11-220 | 22 | 2800 | ||
| MF11-270 | 27 | 3000 | ||
| MF11-330 | 33 | 3000 | ||
| MF11-390 | 39 | 3000 | ||
| MF11-470 | 47 | 3100 | ||
| MF11-500 | 50 | 3100 | ||
| MF11-680 | 68 | 3100 | ||
| MF11-820 | 82 | 3100 | ||
| MF11-101 | 100 | 3200 | ||
| MF11-121 | 120 | 3200 | ||
| MF11-151 | 150 | 3200 | ||
| MF11-201 | 200 | 3200 | ||
| MF11-221 | 220 | 3500 | ||
| MF11-271 | 270 | 3500 | ||
| MF11-331 | 330 | 3500 | ||
| MF11-391 | 390 | 3500 | ||
| MF11-471 | 470 | 3500 | ||
| MF11-501 | 500 | 3500 | ||
| MF11-561 | 560 | 3500 | ||
| MF11-681 | 680 | 3800 | ||
| MF11-821 | 820 | 3800 | ||
| MF11-102 | 1000 | 3800 | ||
| MF11-122 | 1200 | 3800 | ||
| MF11-152 | 1500 | 3800 | ||
| MF11-202 | 2000 | 4000 | ||
| MF11-222 | 2200 | 4000 | ||
| MF11-272 | 2700 | 4000 | ||
| MF11-302 | 3000 | 4000 | ||
| MF11-332 | 3300 | 4000 | ||
| MF11-392 | 3900 | 4000 | ||
| MF11-472 | 4700 | 4050 | ||
| MF11-502 | 5000 | 4050 | ||
| MF11-562 | 5600 | 4050 | ||
| MF11-682 | 6800 | 4050 | ||
| MF11-822 | 8200 | 4050 | ||
| MF11-103 | 10000 | 4050 | ||
| MF11-123 | 12000 | 4050 | ||
| MF11-153 | 15000 | 4150 | ||
| MF11-203 | 20000 | 4300 | ||
| MF11-303 | 30000 | 4300 | ||
| MF11-473 | 47000 | 4300 | ||
| MF11-503 | 50000 | 4300 | ||
| MF11-683 | 68000 | 4300 | ||
| MF11-104 | 100000 | 4500 | ||
| MF11-124 | 120000 | 4700 | ||
| MF11-154 | 150000 | 4700 | ||
| MF11-204 | 200000 | 4700 | ||
| MF11-304 | 300000 | 4700 | ||
| MF11-504 | 500000 | 4800 | ||
| MF11-105 | 1000000 | 4900 |
Note: Our company can also supply according to the special requirements of customers
MF72 Power NTC Thermistor Series
Applications
Coversion power-supply, switch power, ups power
Electronic energy saving lamps,electronic ballast and all kinds of electric heater
All kinds of RT, display
Bulb and other lighting lamps
Conventional product electrical performance parameters
| Part No.Mf72 | R25 | Max,Steady Stale Current(A) | Approx. R of Maz.Cur. | Dissi.Coef.(MW/℃) | Thermal time Constant(S) | Operating Temp.(℃) |
| 5D5 | 5 | 1 | 0.353 | 6 | 20 | -55~+200 |
| 10D5 | 10 | 0.7 | 0.771 | 6 | 20 | |
| 60D5 | 60 | 0.3 | 1.878 | 6 | 18 | |
| 200D5 | 200 | 0.1 | 18.70 | 6 | 18 | |
| 5D7 | 5 | 2 | 0.283 | 10 | 30 | |
| 8D7 | 8 | 1 | 0.539 | 9 | 28 | |
| 10D7 | 10 | 1 | 0.616 | 9 | 27 | |
| 12D7 | 12 | 1 | 0.816 | 9 | 27 | |
| 16D7 | 16 | 0.7 | 1.003 | 9 | 27 | |
| 22D7 | 22 | 0.6 | 1.108 | 9 | 27 | |
| 33D7 | 33 | 0.5 | 1.485 | 10 | 28 | |
| 200D7 | 200 | 0.2 | 11.65 | 11 | 28 | |
| 3D9 | 3 | 4 | 0.120 | 11 | 35 | |
| 4D9 | 4 | 3 | 0.190 | 11 | 35 | |
| 5D9 | 5 | 3 | 0.210 | 11 | 34 | |
| 6D9 | 6 | 2 | 0.315 | 11 | 34 | |
| 8D9 | 8 | 2 | 0.400 | 11 | 32 | |
| 10D9 | 10 | 2 | 0.458 | 11 | 32 | |
| 12D9 | 12 | 1 | 0.652 | 11 | 32 | |
| 16D9 | 16 | 1 | 0.802 | 11 | 31 | |
| 20D9 | 20 | 1 | 0.864 | 11 | 30 | |
| 22D9 | 22 | 1 | 0.950 | 11 | 30 | |
| 30D9 | 30 | 1 | 1.022 | 11 | 30 | |
| 33D9 | 33 | 1 | 1.124 | 11 | 30 | |
| 50D9 | 50 | 1 | 1.252 | 11 | 30 | |
| 60D9 | 60 | 0.8 | 1.502 | 11 | 30 | |
| 80D9 | 80 | 0.8 | 2.010 | 11 | 30 | |
| 120D9 | 120 | 0.8 | 3.015 | 11 | 30 | |
| 200D9 | 200 | 0.5 | 5.007 | 11 | 32 | |
| 400D9 | 400 | 0.2 | 30.30 | 11 | 32 | |
| 2.5D11 | 2.5 | 5 | 0.095 | 13 | 43 | |
| 3D11 | 3 | 5 | 0.100 | 13 | 43 | |
| 4D11 | 4 | 4 | 0.150 | 13 | 44 | |
| 5D11 | 5 | 4 | 0.156 | 13 | 45 | |
| 6D11 | 6 | 3 | 0.240 | 13 | 45 | |
| 8D11 | 8 | 3 | 0.255 | 14 | 47 | |
| 10D11 | 10 | 3 | 0.275 | 14 | 47 | |
| 12D11 | 12 | 2 | 0.462 | 14 | 48 | |
| 16D11 | 16 | 2 | 0.470 | 14 | 50 | |
| 20D11 | 20 | 2 | 0.512 | 15 | 52 | |
| 22D11 | 22 | 2 | 0.563 | 15 | 52 | |
| 30D11 | 30 | 1.5 | 0.667 | 15 | 52 | |
| 33D11 | 33 | 1.5 | 0.734 | 15 | 52 | |
| 50D11 | 50 | 1.5 | 1.021 | 15 | 52 | |
| 60D11 | 60 | 1.5 | 1.215 | 15 | 52 | |
| 80D11 | 80 | 1.2 | 1.656 | 15 | 52 | |
| 1.3D13 | 1.3 | 7 | 0.062 | 13 | 52 | |
| 1.5D13 | 1.5 | 7 | 0.073 | 13 | 60 | |
| 2.5D13 | 2.5 | 6 | 0.088 | 13 | 160 | |
| 3D13 | 3 | 6 | 0.092 | 14 | 60 | |
| 4D13 | 4 | 5 | 0.120 | 15 | 67 | |
| 5D13 | 5 | 5 | 0.125 | 15 | 68 | |
| 6D13 | 6 | 4 | 0.170 | 15 | 65 | |
| 7D13 | 7 | 4 | 0.188 | 15 | 65 | |
| 8D13 | 8 | 4 | 0.194 | 15 | 60 | |
| 10D13 | 10 | 4 | 0.206 | 15 | 65 | |
| 12D13 | 12 | 3 | 0.316 | 16 | 65 | |
| 15D13 | 15 | 3 | 0.335 | 16 | 60 | |
| 16D13 | 16 | 3 | 0.338 | 16 | 60 | |
| 20D13 | 20 | 3 | 0.372 | 16 | 65 | |
| 30D13 | 30 | 2.5 | 0.517 | 16 | 65 | |
| 47D13 | 47 | 2 | 0.810 | 17 | 65 | |
| 120D13 | 120 | 1.2 | 2.124 | 16 | 65 | |
| 1.3D15 | 1.3 | 8 | 0.048 | 18 | 65 | |
| 1.5D15 | 1.5 | 8 | 0.052 | 18 | 68 | |
| 3D15 | 3 | 7 | 0.075 | 18 | 69 | |
| 5D15 | 5 | 6 | 0.112 | 18 | 76 | |
| 6D15 | 6 | 5 | 0.155 | 20 | 76 | |
| 7D15 | 7 | 5 | 0.173 | 20 | 80 | |
| 8D15 | 8 | 5 | 0.178 | 20 | 80 | |
| 10D15 | 10 | 5 | 0.180 | 20 | 80 | |
| 12D15 | 12 | 4 | 0.250 | 20 | 80 | |
| 15D15 | 15 | 4 | 0.268 | 21 | 75 | |
| 16D15 | 16 | 4 | 0.276 | 21 | 75 | |
| 20D15 | 20 | 4 | 0.288 | 21 | 85 | |
| 30D15 | 30 | 3.5 | 0.438 | 21 | 70 | |
| 47D15 | 47 | 3 | 0.680 | 21 | 86 | |
| 120D15 | 120 | 1.8 | 1.652 | 22 | 87 | |
| 0.7D20 | 0.7 | 11 | 0.018 | 24 | 89 | |
| 1.3D20 | 1.3 | 9 | 0.037 | 24 | 88 | |
| 3D20 | 3 | 8 | 0.055 | 24 | 88 | |
| 5D20 | 5 | 7 | 0.087 | 24 | 87 | |
| 6D20 | 6 | 6 | 0.113 | 25 | 103 | |
| 8D20 | 8 | 6 | 0.142 | 25 | 105 | |
| 10D20 | 10 | 6 | 0.162 | 25 | 102 | |
| 12D20 | 12 | 5 | 0.195 | 25 | 100 | |
| 16D20 | 16 | 5 | 0.212 | 25 | 100 | |
| 0.7D25 | 0.7 | 12 | 0.014 | 30 | 120 | |
| 1.5D25 | 1.5 | 10 | 0.027 | 30 | 121 | |
| 3D25 | 3 | 9 | 0.044 | 32 | 124 | |
| 5D25 | 5 | 8 | 0.070 | 32 | 125 | |
| 8D25 | 8 | 7 | 0.114 | 33 | 125 | |
| 10D25 | 10 | 7 | 0.130 | 32 | 125 | |
| 12D25 | 12 | 6 | 0.156 | 32 | 126 | |
| 16D25 | 16 | 6 | 0.160 | 35 | 126 |
Application·Scope
The NTC thermistor is a type of temperature sensor that works by measuring changes in resistance as temperature changes. It is a chip-based sensor with a nominal diameter of 5mm and a lead length of 30mm. The operating temperature range is from -55°C to 125°C, making it suitable for use in extreme temperature environments.
The NTC thermistor's chip is made from a special material that gives it excellent stability and accuracy. It is available in two types - the MF52 temperature measuring thermistor and the MF55 film thermistor. The MF52 temperature measuring thermistor is commonly used in temperature measurement and control applications. The MF55 film thermistor, on the other hand, is ideal for overcurrent protection and temperature compensation.
With a minimum order quantity of 5000 PCS and a price of 0.045 USD/PCS, the NTC thermistor is a cost-effective option for businesses looking for a reliable temperature sensor. The product is packaged in bulk, with 500pcs per polybag, and has a delivery time of 7 workdays. Payment terms are T/T, and the product has a supply ability of 20,000,000 PCS per week.
The NTC thermistor's lead style is available in straight lead and bend lead, making it suitable for a variety of applications. It is widely used in the automotive, aerospace, medical, and industrial sectors. Whether it's for temperature measurement, overcurrent protection, or temperature compensation, the NTC thermistor is a reliable and cost-effective solution for any business.
Brand Name: lin kun
Model Number: NTC thermistor
Place of Origin: Dong Guan China
Certification: ROHS,UL
Minimum Order Quantity: 5000 PCS
Price: 0.045 USD/ PCS
Packaging Details: Bulk,500pcs per polybag
Delivery Time: 7 workdays
Payment Terms: T/T
Supply Ability: 20,000,000PCS per week
Beta Value: 3100~4500
Norminal Diameter: 5mm
Color: Green, Black
Lead Style: Straight Lead; Bend Lead
Resistance value accuracy(%): ±5% ±10% ±20%
Product Customization Services:
The NTC Thermistor product comes with the following technical support and services:
- Support for product selection and customization based on specific application needs
- Assistance with product integration and testing
- Technical documentation and resources for product installation and usage
- Troubleshooting and diagnostics support for any product issues or failures
- Warranty and repair services for damaged products
Product Packaging:
The NTC thermistor product will be packaged securely in a small box to ensure safe delivery. The box will be labeled with the product name, quantity and any necessary handling instructions. The thermistors will be individually wrapped in anti-static packaging to prevent any damage during transportation.
Shipping:
The NTC thermistor product will be shipped via a reputable courier service to ensure timely and safe delivery. The shipping cost will be calculated based on the weight and destination of the package. Customers will be provided with a tracking number to monitor the status of their shipment. We aim to process and ship orders within 24-48 hours of receiving payment.
Q: What is the brand name of this thermistor?
A: The brand name of this thermistor is lin kun.
Q: What is the model number of this thermistor?
A: The model number of this thermistor is NTC thermistor.
Q: Where is this thermistor manufactured?
A: This thermistor is manufactured in Dong Guan China.
Q: What certifications does this thermistor have?
A: This thermistor has ROHS and UL certifications.
Q: What is the minimum order quantity for this thermistor?
A: The minimum order quantity for this thermistor is 5000 PCS.
Q: What is the price of this thermistor?
A: The price of this thermistor is 0.045 USD/PCS.
Q: How is this thermistor packaged?
A: This thermistor is packaged in bulk, with 500pcs per polybag.
Q: What is the delivery time for this thermistor?
A: The delivery time for this thermistor is 7 workdays.
Q: What are the payment terms for this thermistor?
A: The payment terms for this thermistor are T/T.
Q: What is the supply ability for this thermistor?
A: The supply ability for this thermistor is 20,000,000PCS per week.
