Product Details:
|
| Features: | Long Life And High Reliability | Application: | Industrial Electronics |
|---|---|---|---|
| Technology: | PTC Thermistor | Package Type: | Throught Hole |
| Type: | Thermal Resistor | Certified: | RoHS-compatible / UL |
| Diameter Of Resistance: | 10max | Material: | Silicon |
| Resistant For Zero Rated Power: | 100Ω±30% | Over Voltage Withstanding: | 300V |
| Max. Operating Voltage: | 265V | Over Current Withstanding: | 1000mA |
| Curie Temperature: | 120℃ | Non-operating Current: | 100mA@60℃ |
| Operating Current: | 200mA@20℃ | ||
| Highlight: | Electronics Positive Temperature Coefficient Thermistor,Stable Positive Temperature Coefficient Thermistor,Protection PTC Positive Temperature Coefficient |
||

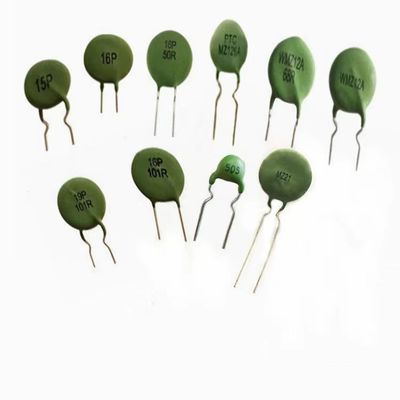

Small Volume Large Power PTC Thermistor For Protection For High Pulse Currents And A High Number Of Inrush-Power Cycles
The thermistor has high sensitivity, wide operating temperature range, small size, easy to use, easy to process into complex shapes, good stability, and strong overload capacity. In the application, it can not only measure temperature as a measuring element, but also control temperature and circuit compensation element as a control element. According to different temperature coefficients, thermistors are divided into positive temperature coefficient (PTC) thermistors and negative temperature coefficient (NTC). PTC thermistor is a thermistor with positive temperature coefficient, which belongs to semiconductor linear element and is sensitive to temperature. The resistance value is proportional to the temperature change. Within a certain temperature range, the resistance changes with temperature, and the resistivity also increases with temperature. PTC thermistor has three characteristics: voltage-current, current-time, resistance-temperature. The voltage-current characteristic is a volt-ampere characteristic, which refers to the relationship between the voltage clamped at the terminal of the thermistor and the current that reaches the steady state of thermal equilibrium.
Product Description
◆ Self protecting in case of overload with no risk of over-heating
◆ Encased thermistor disk with clamp contacts for high reliability
◆ For high pulse currents and a high number of inrush-power cycles
◆ Can handle 2kv energy-limited peak voltage
Application
◆ Automotive on-board charging
◆ Discharge - charge circuits
◆ Power inverters
◆ Server power surge protection
◆ Servo motor control
◆ Welding equipment
Structures and Dimensions
Electrical Specifications
| Order Number | Max. Voltage Vmax(VAC) |
Max. Link Voltage VLmax(VDC) |
Resistance At 25°C R25(Ω) |
Curie Temp. TC (°C) |
Heat Capacity Cth(J/K) |
Thermal Cooling Time Constant τth (s) |
Dimensions(mm) | ||
| D | H | T | |||||||
| MZ21X209-700□B6# | 260 | 370 | 70 | 120 | 0.4 | 70 | 9.0 | 13.5 | 7.5 |
| MZ21X209-121□B6# | 260 | 370 | 120 | 120 | 0.6 | 80 | 9.0 | 13.5 | 7.5 |
| MZ21X209-151□B6# | 260 | 370 | 150 | 120 | 0.6 | 80 | 9.0 | 13.5 | 7.5 |
| MZ21X212-250□B8# | 280 | 400 | 25 | 120 | 1 | 100 | 12.5 | 16.5 | 5 |
| MZ21X213-500□B8# | 280 | 400 | 50 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 |
| MZ21X213-800□B8# | 280 | 400 | 80 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 |
| MZ21X413-600□C5# | 350 | 500 | 60 | 140 | 1.45 | 105 | 13.5 | 17 | 7 |
| MZ21X315-560□D4# | 440 | 620 | 56 | 130 | 2.1 | 100 | 15.0 | 19.0 | 7.5 |
| MZ21X213-121□D4# | 440 | 620 | 120 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 |
| MZ21X417-600□D4# | 440 | 625 | 60 | 140 | 2.3 | 120 | 17 | 21 | 7.5 |
| MZ21X413-121□D4# | 440 | 625 | 120 | 140 | 1.45 | 105 | 13.5 | 17 | 7 |
| MZ21X213-151□D4# | 440 | 620 | 150 | 120 | 1.4 | 120 | 13.0 | 18.0 | 7.5 |
| MZ21X209-501□D4# | 440 | 620 | 500 | 120 | 0.6 | 80 | 9.0 | 13.5 | 7.5 |
| MZ21X109-103□D4# | 440 | 620 | 1100 | 115 | 0.6 | 80 | 9.0 | 13.5 | 7.5 |
| MZ21X417-121□D6# | 460 | 650 | 120 | 140 | 2.3 | 120 | 17 | 21 | 7.5 |
| MZ21X315-120□D8# | 480 | 680 | 120 | 130 | 2.1 | 100 | 15.0 | 19.0 | 7.5 |
| MZ21X413-251□D8# | 480 | 680 | 250 | 140 | 1.45 | 105 | 13.5 | 17 | 7 |
| MZ21X113-501□E6# | 560 | 800 | 500 | 115 | 1.4 | 120 | 13.0 | 18.0 | 7.5 |
| MZ21X413-501□E6# | 560 | 800 | 500 | 140 | 1.45 | 105 | 13.5 | 17 | 7 |
| MZ21X417-251□F0# | 600 | 850 | 250 | 140 | 2.3 | 120 | 17 | 21 | 7.5 |
| MZ21X413-102□F0# | 600 | 850 | 1000 | 140 | 1.45 | 105 | 13.5 | 17 | 7 |
| MZ21X417-501□G0# | 700 | 1000 | 500 | 140 | 2.3 | 120 | 17 | 21 | 7.5 |
Common models of LKMZB series overcurrent protection PTC thermistor
| Model | Curie | Resistance | Action | No action | Maximum | Naximum | Dimensions | |
| temperature | typical value | electric current | electric current | electric current | Work | |||
| @25℃ | @60℃ | @25℃ | Voltage | |||||
| Tc(℃) | Rn(Ω) | It(mA) | Ih(mA) | Imax(A) | Vmax(V) | Dmax | Hmax | |
| LKMZB-03I202-302R | 85±7 | 2500 | 16 | 3 | 0.2 | 420 | 4.0 | 5 |
| LKMZB-03I102-202R | 85±7 | 1500 | 18 | 4 | 0.2 | 420 | 4.0 | 5 |
| LKMZB04I801-122R | 85±7 | 1000 | 25 | 6 | 0.2 | 420 | 4.5 | 5 |
| LKMZB-04I501-801R | 85±7 | 650 | 28 | 7 | 0.2 | 420 | 4.5 | 5 |
| LKMZB-04I301-501R | 85±7 | 400 | 32 | 8 | 0.2 | 420 | 4.5 | 5 |
| LKMZB-04M101-202R | 105±7 | 1500 | 25 | 6 | 0.2 | 420 | 4.5 | 5 |
| LKMZB-04M801-122R | 105±7 | 1000 | 28 | 8 | 0.2 | 420 | 4.5 | 5 |
| LKMZB-04M501-801R | 105±7 | 650 | 30 | 10 | 0.2 | 420 | 4.5 | 5 |
| LKMZB-06S102-202R | 115±7 | 1500 | 30 | 10 | 0.3 | 420 | 6.5 | 5 |
| LKMZB-06S801-122R | 115±7 | 1000 | 35 | 12 | 0.3 | 420 | 6.5 | 5 |
| LKMZB-06S601-901R | 115±7 | 750 | 42 | 14 | 0.3 | 420 | 6.5 | 5 |
| LKMZB-06S501-801R | 115±7 | 650 | 45 | 15 | 0.3 | 420 | 6.5 | 5 |
| LKMZB-06S401-601R | 115±7 | 500 | 50 | 16 | 0.3 | 420 | 6.5 | 5 |
| LKMZB-06S201-401R | 115±7 | 300 | 60 | 20 | 0.3 | 420 | 6.5 | 5 |
| LKMZB-06S151-251R | 115±7 | 200 | 75 | 25 | 0.3 | 265 | 6.5 | 5 |
| LKMZB-06S101-201R | 115±7 | 150 | 80 | 28 | 0.3 | 265 | 6.5 | 5 |
| LKMZB-06S900-151R | 115±7 | 120 | 90 | 30 | 0.3 | 265 | 6.5 | 5 |
| LKMZB-06M600-100R | 105±7 | 80 | 100 | 32 | 0.3 | 265 | 6.5 | 5 |
| LKMZB-06M400-800R | 105±7 | 60 | 120 | 35 | 0.3 | 265 | 6.5 | 5 |
| LKMZB-08S301-501R | 115±7 | 400 | 80 | 20 | 0.8 | 420 | 8 | 5 |
| LKMZB-08S201-301R | 115±7 | 250 | 80 | 25 | 0.8 | 420 | 8 | 5 |
| LKMZB-08S151-251R | 115±7 | 200 | 100 | 28 | 0.8 | 420 | 8 | 5 |
| LKMZB-08S900-151R | 115±7 | 120 | 120 | 35 | 0.8 | 420 | 8 | 5 |
| LKMZB-08S600-101R | 115±7 | 80 | 140 | 40 | 0.8 | 420 | 8 | 5 |
| LKMZB-08S400-800R | 115±7 | 60 | 160 | 50 | 0.8 | 265 | 8 | 5 |
| LKMZB-08S300-500R | 115±7 | 40 | 180 | 60 | 0.8 | 265 | 8 | 5 |
| LKMZB-10S300-500R | 115±7 | 40 | 200 | 70 | 3 | 265 | 9 | 5 |
| LKMZB-10S200-300R | 115±7 | 25 | 250 | 80 | 3 | 265 | 9 | 5 |
| LKMZB-13S200-300R | 115±7 | 25 | 300 | 100 | 4 | 265 | 13 | 5 |
| LKMZB-13S100-200R | 115±7 | 15 | 360 | 120 | 4 | 265 | 13 | 5 |
| LKMZB-16S200-300R | 115±7 | 25 | 360 | 120 | 8 | 265 | 16 | 5 |
| LKMZB-16S100-200R | 115±7 | 15 | 420 | 140 | 8 | 265 | 16 | 5 |
| LKMZB-16S080-150R | 115±7 | 12 | 420 | 160 | 8 | 265 | 16 | 5 |
Note: Various types of products can be customized according to customer requirements, and the maximum non-operating current value can reach 400mA@60℃.
Note:
1.is the resistance tolerance M:±20% X:±25% N:±30% S: Special
2. is the internal control code
3.The F value can be selected for 5mm, 7.5mm, 10mm
4.The L value canbe selected for 3mm, 20mm, 25mm, 35mm
5.The d value can be selected for 0.6mm, 0.8mm, 1.0mm
6.Other type are available on request
