Product Details:
|
| Product Number: | PT100/PT1000 Temperature Sensor | Package Size: | Φ4mm X30mm Stainless Steel (can Be Customized) |
|---|---|---|---|
| Wire:: | Three-core Silver-plated Shielded Wire (can Be Customized) | Thermometry Chip:: | Heraeus, Germany |
| Temperature Measurement Accuracy: : | A/B/2B (can Be Customized) | Tail Terminal:: | 0305 Terminal (can Be Customized |
| Output Type:: | Analog | Line Length:: | 1 Meter (can Be Customized) |
| Highlight: | Platinum NTC Temperature Sensor,Anti Corrosion NTC Temperature Sensor |
||
| Product Model | ||||
| Thermal resistance: Straight tube type | ||||
| Component type | PT100/PT1000 | |||
| Accuracy | Class B | |||
| Wire form | 3 core wire | |||
| Temperature measurement range | (-50℃～250℃) | |||
| Material | Protective tube | S304 | ||
| Silicone hose heat resistant temperature | 150℃ | |||
| Wire (usable temperature range) | PTFE coated (-50℃～250℃) | |||
Product Features:
▲.The protective tube cannot be bent.

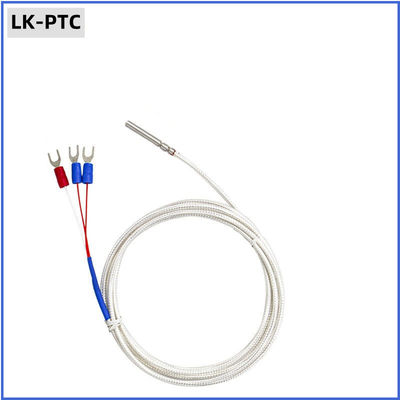

■Features: The shape of the wire is pulled directly from the protective tube. Since there is no casing, the distance to the heating object and the installation space can be reduced.
■※Straight tube thermal resistance
| Model | Probe specifications | Wire length | Grade | Terminal | |
| PT100/PT1000 (Thermometer resistance) | D(mm) | L(mm) | F(m) | ||
| 4 | 30 | 0.5-10.0 | A | N/M/Y | |
| 5 | 30 | N/M/Y | |||
| 5 | 40 | B | N/M/Y | ||
| 6 | 50 | N/M/Y | |||
●※High temperature annealed stainless steel pipe
The probe shell is made of 304 and 316L materials, which are waterproof, anti-corrosion and oil-resistant. The diameter and length of the shell can be customized according to customer requirements. The default size is 30*4mm.
●※Original imported Heraeus chips
The component adopts imported original thin film platinum resistor, its resistance value will change with the change of temperature. These components have exceptionally small dimensions and very good long-term stability.
●※Select authentic 304 stainless steel high-density multi-strand core shielded network cable.
The precision wire is insulated by double layers of high-temperature refractory glass fiber (ordinary single layer), which effectively reduces the shunt effect and ensures the accuracy of long-distance measurements!
●※High-quality terminal blocks
The wires are led out of M4 U-shaped crimp terminals, which makes wiring faster and more convenient, not easy to fall off, and has more stable performance.
Temperature sensor customization is roughly divided into: resistance, packaging shell, wire parameters, wire end processing (tin dipping or connecting terminals)
1. Customized according to customer needs, common types are as follows
| Category | 1 | 2 | 3 | 4 | ||||||||
| Resistance | NTC thermistor | PT100/PT1000 platinum resistor | DS18B20 | Thermocouple | ||||||||
| Encapsulation shell | Stainless steel (304, 316) | Nickel plated copper shell | ABS shell | Injection molded shell | ||||||||
| Wire parameters | Stainless steel mesh braided wire | Silicone wire/PVC wire | Fiberglass mica wire | wire | ||||||||
| Tail connection | 2.5/3.5mm audio plug | Connectors (customized on demand) | Blade terminal | Bare wire dipped in tin | ||||||||
| 2. The specific parameters are as follows: | ||||||||||||
|
Category name
|
Resistance parameters | Accuracy | Specifications and models | Temperature resistance range | ||||||||
| NTC thermistor (R) | 5K,10K,50K,100K, | 1%,2%,3%,5% | MF52,MF58 | 〔-30℃～300℃〕 | ||||||||
| NTC thermistor (B) | 3435,3470,3950,3970,3977 | |||||||||||
| Platinum resistance | PT100/PT1000 | Class A, Class B | ～ | (-50℃～500℃) | ||||||||
| DS18B20 | DS18B20 | ±0.5% | ～ | (-50℃～125℃) | ||||||||
| Thermocouple | K type | Level 1, Level 2 | ～ | (-50℃～600℃) | ||||||||
| Wire | ～ | ～ | AWG:18/20/22/24/26/28 | (-105℃～500℃) | ||||||||
3. Usage and working environment: food temperature measurement, smart home appliances, agriculture, industry, etc., waterproof and moisture-proof, high/low temperature resistance, corrosion resistance, etc.
Product Number: PT100/PT1000 Temperature Sensor
The NTC Temperature Sensor is a highly accurate and reliable temperature sensor used in various industries such as automotive, medical, and industrial applications. This sensor is designed to measure the temperature of a specific environment and convert it into an electrical signal for further processing and control.
The NTC Sensor is a type of thermistor, which is a temperature-sensitive resistor. It is made of a ceramic or polymer material that exhibits a large, predictable and precise change in resistance in relation to temperature. This makes it an ideal sensor for temperature measurement.
The NTC Temperature Sensor comes in a compact package size of Φ4mm X30mm, which is made of stainless steel. This package can be customized to fit specific design requirements. The small size of the sensor allows for easy installation and integration into various systems and equipment.
| Product Number | Output Type | Wire | Line Length |
|---|---|---|---|
| PT100/PT1000 Temperature Sensor | Analog | Three-core Silver-plated Shielded Wire | 1 Meter |
Note: All specifications can be customized according to specific design requirements.
The NTC Temperature Sensor is widely used in various industries for temperature measurement and control, including:
The NTC Temperature Sensor is a highly accurate and reliable sensor designed for precise temperature measurement. With its compact size, customizable package, and versatile applications, it is an essential component in many industries. Choose the NTC Temperature Sensor for your temperature sensing needs and experience its excellent performance and durability.
| NTC Sensor | NTC Sensor |
|---|---|
| Working Temperature | -50℃～200℃ |
| Thermometry Chip | Heraeus, Germany |
| Product Number | PT100/PT1000 Temperature Sensor |
| Temperature Measurement accuracy | A/B/2B (can Be Customized) |
| Wire | Three-core Silver-plated Shielded Wire (can Be Customized) |
| Output Type | Analog |
| Line Length | 1 Meter (can Be Customized) |
| Package Size | Φ4mm X30mm Stainless Steel (can Be Customized) |
| Tail Terminal | 0305 Terminal (can Be Customized) |
Welcome to LINKUN, your reliable source for high-quality NTC temperature sensors. Our NTC Sensor products are designed to provide accurate and reliable temperature measurement in a wide range of applications. With our advanced technology and strict quality control, we are committed to providing our customers with the best products and services.
Our NTC Sensor products are widely used in various industries, including but not limited to:
Our NTC Sensor products are suitable for both NTC Sensor professionals and hobbyists. They are perfect for any application that requires accurate and reliable temperature measurement. Whether you are a manufacturer, designer, or end-user, our NTC Sensor products will meet your needs and exceed your expectations.
Our NTC temperature sensors are available in various models, including our popular Model Number: PT100 Temperature Sensor and Product Number: PT100/PT1000 Temperature Sensor. These sensors are manufactured in our state-of-the-art facility located in Dongguan, Guangdong, China, using the highest quality materials and components. Our sensors are designed to withstand extreme temperatures ranging from -50℃ to 200℃, making them suitable for use in both hot and cold environments.
At LINKUN, we understand that each application has its unique requirements. That's why we offer customizable options for our NTC Sensor products. You can choose the Working Temperature range, Wire type, and Temperature Measurement Accuracy (A/B/2B) that best suits your needs. Our Three-core Silver-plated Shielded Wire is the standard option, but we also offer customized options to meet specific needs.
Our NTC Sensor products are known for their high precision and stability. They provide Analog output, making them easy to integrate into your existing systems. Our sensors are also highly durable and have a long lifespan, ensuring their performance and accuracy over time.
Experience the quality and reliability of our NTC Sensor products for yourself. Contact us today to learn more about our products and services, or visit our website to browse our extensive collection of NTC temperature sensors. We look forward to becoming your trusted partner in temperature measurement solutions.
Thank you for choosing LINKUN - your reliable source for NTC temperature sensors.
Website: www.linkun.com
Email: info@linkun.com
Phone: +86-769-8895-4945
LINKUN offers customized solutions for our NTC Temperature Sensor.
With LINKUN's NTC Temperature Sensor customized service, you can choose from the following options to create a sensor that meets your specific needs:
Choosing LINKUN's NTC Temperature Sensor customized service provides you with the following benefits:
Interested in our NTC Temperature Sensor customized service? Contact us today for a quote or more information.
Phone: +86-769-88902746
Email: sales@linkunsensor.com
Address: No. 188, Xiangying Road, Xinan Community, Chang'an Town, Dongguan City, Guangdong Province, China
The NTC temperature sensor is carefully packaged to ensure safe delivery to our customers. The packaging includes:
Our packaging materials are environmentally friendly and can be recycled.
We offer a variety of shipping options to meet our customers' needs, including:
We work with reliable shipping carriers to ensure timely and safe delivery of our products.
For bulk orders, we can also arrange for special shipping methods and packaging to meet your specific requirements.
