Product Details:
|
| Product Number: | PT100/PT1000 Temperature Sensor | Package Size: | Φ4mm X30mm Stainless Steel (can Be Customized) |
|---|---|---|---|
| Tail Terminal:: | 0305 Terminal (can Be Customized | Output Type:: | Analog |
| Line Length:: | 1 Meter (can Be Customized) | Thermometry Chip:: | Heraeus, Germany |
| Working Temperature:: | -50℃～200℃ | Temperature Measurement Accuracy: : | A/B/2B (can Be Customized) |
| Highlight: | NTC Temperature Sensor Waterproof,NTC Temperature Sensor Oil Proof |
||
| Product Model | ||||
| Thermal resistance: Straight tube type | ||||
| Component type | PT100/PT1000 | |||
| Accuracy | Class B | |||
| Wire form | 3 core wire | |||
| Temperature measurement range | (-50℃～250℃) | |||
| Material | Protective tube | S304 | ||
| Silicone hose heat resistant temperature | 150℃ | |||
| Wire (usable temperature range) | PTFE coated (-50℃～250℃) | |||
Product Features:
▲.The protective tube cannot be bent.
■Features: The shape of the wire is pulled directly from the protective tube. Since there is no casing, the distance to the heating object and the installation space can be reduced.
■※Straight tube thermal resistance
| Model | Probe specifications | Wire length | Grade | Terminal | |
| PT100/PT1000 (Thermometer resistance) | D(mm) | L(mm) | F(m) | ||
| 4 | 30 | 0.5-10.0 | A | N/M/Y | |
| 5 | 30 | N/M/Y | |||
| 5 | 40 | B | N/M/Y | ||
| 6 | 50 | N/M/Y | |||

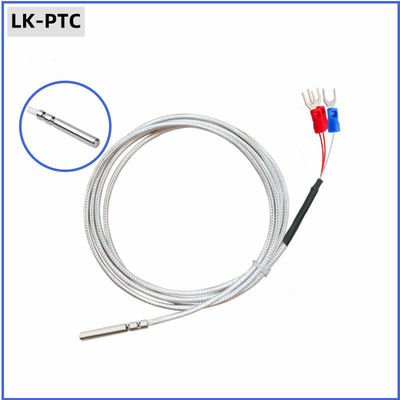

●※High temperature annealed stainless steel pipe
The probe shell is made of 304 and 316L materials, which are waterproof, anti-corrosion and oil-resistant. The diameter and length of the shell can be customized according to customer requirements. The default size is 30*4mm.
●※Original imported Heraeus chips
The component adopts imported original thin film platinum resistor, its resistance value will change with the change of temperature. These components have exceptionally small dimensions and very good long-term stability.
●※Select authentic 304 stainless steel high-density multi-strand core shielded network cable.
The precision wire is insulated by double layers of high-temperature refractory glass fiber (ordinary single layer), which effectively reduces the shunt effect and ensures the accuracy of long-distance measurements!
●※High-quality terminal blocks
The wires are led out of M4 U-shaped crimp terminals, which makes wiring faster and more convenient, not easy to fall off, and has more stable performance.
Temperature sensor customization is roughly divided into: resistance, packaging shell, wire parameters, wire end processing (tin dipping or connecting terminals)
1. Customized according to customer needs, common types are as follows
| Category | 1 | 2 | 3 | 4 | ||||||||
| Resistance | NTC thermistor | PT100/PT1000 platinum resistor | DS18B20 | Thermocouple | ||||||||
| Encapsulation shell | Stainless steel (304, 316) | Nickel plated copper shell | ABS shell | Injection molded shell | ||||||||
| Wire parameters | Stainless steel mesh braided wire | Silicone wire/PVC wire | Fiberglass mica wire | wire | ||||||||
| Tail connection | 2.5/3.5mm audio plug | Connectors (customized on demand) | Blade terminal | Bare wire dipped in tin | ||||||||
| 2. The specific parameters are as follows: | ||||||||||||
|
Category name
|
Resistance parameters | Accuracy | Specifications and models | Temperature resistance range | ||||||||
| NTC thermistor (R) | 5K,10K,50K,100K, | 1%,2%,3%,5% | MF52,MF58 | 〔-30℃～300℃〕 | ||||||||
| NTC thermistor (B) | 3435,3470,3950,3970,3977 | |||||||||||
| Platinum resistance | PT100/PT1000 | Class A, Class B | ～ | (-50℃～500℃) | ||||||||
| DS18B20 | DS18B20 | ±0.5% | ～ | (-50℃～125℃) | ||||||||
| Thermocouple | K type | Level 1, Level 2 | ～ | (-50℃～600℃) | ||||||||
| Wire | ～ | ～ | AWG:18/20/22/24/26/28 | (-105℃～500℃) | ||||||||
3. Usage and working environment: food temperature measurement, smart home appliances, agriculture, industry, etc., waterproof and moisture-proof, high/low temperature resistance, corrosion resistance, etc.
Product Number: PT100/PT1000 Temperature Sensor
The NTC Temperature Sensor is a highly accurate and reliable sensor designed for measuring temperature in various applications. It is available in two different types - PT100 and PT1000, providing precise readings for a wide range of temperature values.
The sensor is compact and lightweight, with a package size of Φ4mm X30mm, making it easy to install and suitable for use in tight spaces. It is made of durable stainless steel material, ensuring excellent performance and longevity.
The NTC Temperature Sensor can be customized to meet the specific needs of different applications. Some of the available customization options include:
These options allow the sensor to be tailored to fit perfectly into any project, ensuring accurate and reliable temperature measurement.
The NTC Temperature Sensor is suitable for a wide range of applications, including but not limited to:
Its high precision and stability make it an ideal choice for temperature measurement in critical and demanding environments.
The NTC Temperature Sensor offers several advantages over other temperature sensors:
With its superior performance and reliability, the NTC Temperature Sensor is the preferred choice of engineers and professionals for temperature measurement.
| Product Name | NTC Temperature Sensor |
|---|---|
| Package Size | Φ4mm X30mm Stainless Steel (can Be Customized) |
| Product Number | PT100/PT1000 Temperature Sensor |
| Tail Terminal | 0305 Terminal (can Be Customized) |
| Working Temperature | -50℃～200℃ |
| Wire | Three-core Silver-plated Shielded Wire (can Be Customized) |
| Line Length | 1 Meter (can Be Customized) |
| Thermometry Chip | Heraeus, Germany |
| Temperature Measurement Accuracy | A/B/2B (can Be Customized) |
| Output Type | Analog |
LINKUN's NTC Temperature Sensor is the latest cutting-edge technology product designed for precision temperature measurement and control. With over 20 years of experience in the industry, LINKUN is known for its high-quality products and excellent customer service.
The NTC Temperature Sensor is a high-performance sensor that is widely used in various industries such as industrial automation, electronic appliances, environmental monitoring, and more. It is designed to accurately measure and detect temperature changes in the range of -50℃ to 200℃.
The sensor is equipped with a Heraeus thermometry chip imported from Germany, ensuring the highest level of accuracy and reliability in temperature measurement. It is suitable for a wide range of applications, from basic temperature detection to precision measurement.
The NTC Temperature Sensor is widely used in various industries and applications such as:
At LINKUN, we understand that different applications may have specific requirements. That's why we offer customization options for our NTC Temperature Sensor, including:
Our team of experts will work closely with you to understand your needs and provide a customized solution that meets your requirements.
The NTC Temperature Sensor by LINKUN is a high-quality, reliable, and accurate product that is perfect for various industrial and commercial applications. With its advanced technology and customizable options, it is an ideal choice for anyone looking for precision temperature measurement and control. Contact us today to learn more about our NTC Temperature Sensor and how it can benefit your business.
Brand Name: LINKUN
Model Number: PT100 Temperature Sensor
Place of Origin: Dongguan, Guangdong, China
Package Size: Φ4mm X30mm Stainless Steel (can be customized)
Working Temperature: -50℃～200℃
Temperature Measurement Accuracy: A/B/2B (can be customized)
Thermometry Chip: Heraeus, Germany
Wire: Three-core Silver-plated Shielded Wire (can be customized)
At LINKUN, we understand that every customer has unique needs and preferences. That's why we offer a customized service for our NTC Temperature Sensor. Our high-quality PT100 Temperature Sensor is designed and manufactured in Dongguan, Guangdong, China using premium Φ4mm X30mm Stainless Steel material. It has a wide working temperature range of -50℃～200℃ and can be customized to meet your specific temperature measurement accuracy requirements, whether it's A/B/2B or any other specifications.
The thermometry chip used in our NTC Temperature Sensor is from the renowned brand Heraeus in Germany, ensuring accurate and reliable readings. We also offer the option to customize the wire of the sensor to a three-core silver-plated shielded wire, providing better stability and durability.
Choose LINKUN for your NTC Temperature Sensor needs and enjoy our top-notch customized service. Contact us now to discuss your requirements and get a quote!
NTC Temperature Sensor is carefully packaged to ensure safe delivery to our customers. Each sensor is placed in a protective plastic bag and then placed in a sturdy cardboard box with cushioning materials to prevent any damage during transportation.
The shipping options available for NTC Temperature Sensor are standard ground shipping, express shipping, and international shipping. Customers can select their preferred shipping method during the checkout process.
For international shipping, we provide all necessary documentation and comply with all customs regulations to ensure a smooth delivery process. Our team works closely with reliable shipping carriers to provide timely and efficient delivery to our international customers.
Once the order is shipped, customers will receive a tracking number to monitor the status of their shipment. We strive to deliver our products within the estimated delivery time and provide prompt customer service for any shipping inquiries.
At NTC Temperature Sensor, we are committed to providing high-quality products and reliable shipping services to meet the needs of our customers worldwide.
