Product Details:
|
| Operating Temperature: | 145(℃) | Sensor Type:: | Three-phase Motor Protection |
|---|---|---|---|
| Package/casing: | Casing Type | Product Name: | MZ6-145-DS PTC Thermistor Sensor For Motors |
| Series:: | PTC Sensor | Output Type Wire Type: | (three Cores) |
| Installation Type: | Welding | Accuracy: | ±5℃ |
| High Light:: | Ptc Motor Protection,ptc Thermistor Motor Protection,motor Ptc Thermistor | ||
| Highlight: | Three Head PTC Thermistor,Single Head PTC Thermistor |
||

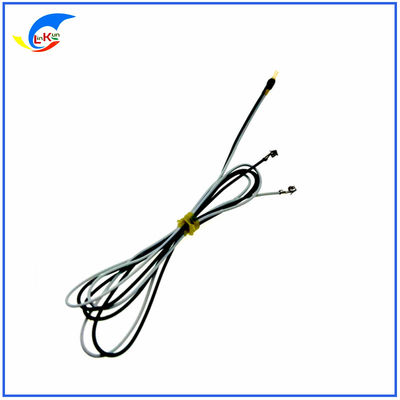

PTC Thermistor Sensor MZ6 Series 145℃ Degree Motor Dedicated Single/Double/Three-Head Thermal Protector
1. Scope of application:
The MZ6 type PTC thermistor of Dongguan Linkun Electronic Technology Co., Ltd. is one of our company's main PTC products. It has been used in many motor customers in conjunction with our company's PT100 platinum resistance temperature sensor, mainly used in three-phase motors, Temperature protection and temperature measurement and control of servo motors.
2.Overall dimensions and structure (unit: mm)
| Number | Name | Material |
| 1 | Shrink sleeve | Polyvinylidene fluoride |
| 2 | PTC thermistor | BaTi03 ceramics |
| 3 | Wire | Fluorine plastic high temperature wire |
3.Wire color marking core (the middle connecting wire for three cores is yellow)
| Tk Temperature (℃) | 60 | 70 | 80 | 90 | 100 | 105 | 110 | 115 | 120 | 125 |
| Thread color | White | White | White | Green | Red | Blue | Brown | Blue | Ash | Red |
| Thread color | Ash | Brown | White | Green | Red | Ash | Brown | Green | Ash | Green |
| Tk temperature (℃) | 130 | 135 | 140 | 145 | 150 | 155 | 160 | 165 | 170 | 180 |
| Thread color | Blue | Red | White | White | Black | Blue | Blue | Blue | White | White |
| Thread color | Blue | Black | Blue | Black | Black | Black | Red | Brown | Green | Red |
4.Resistor temperature characteristic curve representative diagram
5.Electrical and other properties
| Project | Specification | Experiment method | |
| Single core | Three cores | ||
| Maximum working voltage | Umax=25V | Umax=25V | |
| Rated operating temperature | TK=60℃-180℃ | TK=60℃-180℃ | |
| TK tolerance | ±5℃ | ±5℃ | |
| Repeatability of TK | △T=±0.5℃ | △T=±0.5℃ | |
| Room temperature resistance value | R25≤100Ω | R25≤300Ω | Measure with a digital multimeter at room temperature of 25℃±1℃. Measuring voltage ≤ DC2.5V. |
| TK-5℃ resistance value | R TK-5≤100Ω | R TK-5≤1650Ω | In a high temperature oil tank, use a digital multimeter to measure. Measuring voltage ≤ DC2.5V. |
| TK+5℃ resistance value | R TK+5≥1330Ω | R TK+5≥3990Ω | In a high temperature oil tank, use a digital multimeter to measure. Measuring voltage ≤ DC2.5V. |
| TK+15℃ resistance value | R TK+15≥4KΩ | R TK+15≥12KΩ | In a high temperature oil tank, use a digital multimeter to measure. Measuring voltage ≤ DC2.5V. |
| TK action time | TD＜5S | TD＜5S | Use a timer to measure. |
| Dielectric strength | 2.5KV | 2.5KV | Measure with high voltage tester |
| maximum allowable storage temperature | 160℃ | 160℃ | |
| Minimum allowable storage temperature | ( -25℃) | ( -25℃) | |
| Wire color markings | See this specification | ||
| Weight | ＜3g | ＜3g | |
| Exterior | The wires have no scratches or cracks, and the shrink sleeve has no burrs. | Visual inspection. | |
| 6.Packaging |
| (1) Use plastic packaging. 100 pieces (bag) |
| (2) Put the plastic bag into the packaging box. 5000 pieces/50 bags/box |
| 7.Quality acceptance criteria |
| Inspection sampling shall be carried out in accordance with GB/T2828.1 "Counting Sampling Inspection Procedure, Part 1: Batch-by-batch Inspection Sampling Plan Retrieved by Acceptance Quality AQL", a normal inspection sampling plan. |
| Number | Test items | Index number | Check level | AQL value | Remark |
| 1 | Exterior | 3.2 | Ⅱ | 0.65 | |
| 2 | Dimensions | 3.1 | Ⅱ | 0.65 | |
| 3 | Room temperature resistance value | 3.2 | Ⅱ | 0.65 | |
| 4 | Rated operating temperature | 3.2 | S-3 | 2.5 | |
| 5 | TK-5℃ resistance value | 3.2 | S-3 | 2.5 | |
| 6 | TK+5℃ resistance value | 3.2 | S-3 | 2.5 | |
| 7 | TK+15℃ resistance value | 3.2 | S-3 | 2.5 | |
| 8 | TK action time | 3.2 | S-3 | 2.5 | |
| 9 | Dielectric strength | 3.2 | S-3 | 2.5 |
8. Usage methods and precautions
| A: How to use: | ||
| Embed the thermistor inside the coil, press and tie it tightly and then dip it into paint together with the coil (do not hit it hard to avoid damage) | ||
| B: Notes: | ||
| (1) Do not forcefully squeeze during installation to avoid damage; | ||
| (2) The wire should not bear large pulling force; | ||
| (3) Do not exceed the maximum operating voltage. | ||
9.PTC motor protection product specification comparison table
| Sensor | TK value | Resistance (TK-5) | Resistance (TK+5) | Resistance (TK+15) |
| MZ6-100-DS | 100 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-110-DS | 110 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-120-DS | 120 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-130-DS | 130 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-140-DS | 140 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-150-DS | 150 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-155-DS | 155 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-160-DS | 160 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-170-DS | 170 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
| MZ6-180-DS | 180 | ≤1650Ω | ≥3990Ω | ≥12KΩ |
Product Description:The MZ6 PTC Thermistor For Motor is a highly reliable and accurate temperature sensing device designed specifically for use in motors. This product is part of our PTC Sensor series and is made with high-quality materials, including wire, to ensure durability and precision.
The MZ6 PTC Thermistor operates on the principle of Positive Temperature Coefficient (PTC), meaning its resistance increases with temperature. This allows for accurate temperature measurements in the range of 60℃-150℃, making it suitable for a wide range of motor applications.
The casing type for the MZ6 PTC Thermistor is carefully selected to provide maximum protection and stability. This ensures the device can withstand harsh environmental conditions and maintain its accuracy over time.
With its high precision and durability, the MZ6 PTC Thermistor is the perfect choice for temperature measurement in motors. It ensures optimal performance and protection for your motor, allowing for efficient and safe operation. Trust our PTC Sensor series to deliver top-notch quality and performance for all your temperature sensing needs.
| Product Name | MZ6 PTC Thermistor For Motor |
|---|---|
| Series | PTC Sensor |
| Package/casing | Casing Type |
| Material | Wire |
| Installation Type | Welding |
| Operating Temperature | 150(℃) |
| Temperature Measurement Range | 60℃-150℃ |
| Sensor Type | Three-phase Motor Protection |
| Accuracy | ±5℃ |
| Output Type | Wire Type (three Cores) |
The PTC Thermistor for Motor, also known as Positive Temperature Coefficient Thermistor, is an essential component in the motor industry. It is designed and manufactured by the renowned brand lin kun in China, known for its high-quality and reliable products.
This particular model, MZ6-150-DS, is specifically designed for motors and is widely used in various motor applications. It is a PTC thermistor with a temperature measurement range of 60℃-150℃, making it suitable for a wide range of motor temperatures.
The PTC thermistor for motor comes in a casing type package, ensuring its protection and durability during transportation and usage. It is also designed for easy installation through welding, making it convenient for motor manufacturers to integrate it into their products.
One of the key features of this PTC thermistor is its series as a PTC sensor. This means that it has a positive temperature coefficient, which means that its resistance increases as the temperature rises. This characteristic is crucial in motor applications as it helps to protect the motor from overcurrent and overheating.
The output type of this PTC thermistor is a wire type with three cores, making it suitable for various motor wiring systems. This allows for easy connectivity and compatibility with different motor designs.
The PTC Thermistor for Motor has various applications, including but not limited to:
In these applications, the PTC thermistor plays a critical role in protecting the motor from overheating, ensuring its longevity and efficient operation. It is also used for temperature measurement and control, ensuring that the motor operates within the desired temperature range.
Overall, the PTC Thermistor for Motor is a highly reliable and essential component in the motor industry. With its positive temperature coefficient, easy installation, and various applications, it is a must-have for any motor manufacturer looking to improve the performance and durability of their products.
Model Number: MZ6-150-DS PTC thermistor for motor
Place of Origin: China
Series: PTC Sensor
Package/casing: Casing Type
Sensor Type: Three-phase Motor Protection
Output type: Wire type (three Cores)
At lin kun, we understand the importance of reliable and efficient motor protection. That's why we offer customized services for our MZ6 PTC Thermistor for Motor.
Our PTC Thermistor is a Positive Temperature Coefficient Thermistor, meaning it has a high resistance at low temperatures and a low resistance at high temperatures. This allows it to effectively protect your motor from overheating and overloading.
Our MZ6 model is specifically designed for use in three-phase motors, providing comprehensive protection for your motor system.
We offer a variety of customized services to meet your specific needs and requirements. This includes:
With our customized service, you can ensure that our PTC Thermistor is perfectly tailored to your motor system, providing reliable and efficient protection.
Trust lin kun to provide you with the best quality PTC Thermistor for your motor. Contact us today to learn more about our customized service for the MZ6 PTC Thermistor for Motor.
Our PTC Thermistors are carefully packaged to ensure safe and secure delivery to our customers. Each product is individually wrapped in protective materials and placed in a sturdy box to prevent damage during transportation.
We also offer customizable packaging options for bulk orders to meet our customers' specific needs.
We offer a variety of shipping options to accommodate our customers' preferences and delivery timeframes. Our standard shipping methods include:
For urgent orders, we also offer expedited shipping options such as overnight and 2-day delivery.
We ship our PTC Thermistors internationally to customers all over the world. We work closely with our trusted shipping partners to ensure timely and efficient delivery.
For international shipments, please note that the customer is responsible for any applicable taxes, duties, or customs fees.
Once your order has been shipped, we will provide you with a tracking number so you can easily track the status of your package.
If you have any questions or concerns about packaging and shipping, please don't hesitate to contact us. We are committed to providing the best possible service to our customers.
