Product Details:
|
| Product Name: | Silicon PTC Thermistor Temperature Sensor | Terminal:: | 2.0 Copper Strip Terminal |
|---|---|---|---|
| Output Type Wire Type: | Temperature Sensor | Resistance:: | R25=1000Ω±30Ω |
| Tube Length:: | 50mm(customizable） | Tube:: | 2.0 PTFE Heat Shrinkable Tube |
| Sensing Thermistor:: | LK-KTY84-130 | High Light:: | Silicon KTY81 PTC Thermistor, Copper Strip Linear Ptc Thermistor |
| Highlight: | Accuracy Silicon Thermistor,LPTC Motor Winding Silicon Thermistor |
||
PTFE coated silicon PTC thermistor temperature sensor KTY81 KTY83 KTY84 KTY10 620MM
1. Description of silicon PTC thermistor temperature sensor
Silicon PTC thermistor temperature sensor KTY84-150-620TW is made of chip KTY84-150 and is compatible with KTY83-1KΩ series. The chip is soldered to the PTFE cable UL1332 26AWG TS Black through 2.0 copper bus terminals, and then encapsulated with 2.0 PTFE heat shrink tube for a compact design. It has the characteristics of fast response, long-term stability and good consistency. "Silicon material positive electrode" temperature coefficient "KTY series thermistor and temperature sensor" is suitable for "drive motors and control motors". The main models include KTY84-130, KTY84-150, KTY84-151 and KTY84-152. The sensor The lead length and color can be customized.
2.Typical Application Of The Silicon PTC Thermistor Temperature Sensor
Motion control temperature sensor, temperature sensing and controls in drives and motors, spindles, inverters and control systems, etc.
Industrial automation control equipment.
Home appliance temperature detection and compensation.
Precision circuit and crystal oscillator temperature compensation.
Temperature compensation of silicon semiconducting devices.
Temperature compensation of instrumentation amplifier.
A/D converter temperature compensation.
Micro motor timing control.
Automobile temperature detection and control.
Medical equipment temperature detection and control.
Linear PTC thermistors applications also include transmission, engine oil and coolant, heating system, overheating protection, amplifiers, power supplies, transducers, telemetry, computers, magnetic amplifiers, thermometry, meteorology, temperature regulation and over-temperature protection.
3. Dimension Of The Silicon PTC Thermistor Temperature Sensor (unit:mm)
| Serial number | Material name | Specifications / Models | Texture of material |
| 2-1. | LEAD WIRE | UL1332 26AWG TS Black(OD1.0±0.1mm) | PTFE |
| 2-2. | TERMINAL | 2.0 Copper strip terminal | |
| 2-3. | TUBE | 2.0 PTFE heat shrinkable tube | |
| 2-4. | THERMISTOR | R25=580Ω±40Ω | LK-KTY84-150 |
4. Specification Of The Silicon PTC Thermistor Temperature Sensor
| Serial number | Item | Test Conditions | Min. | Nor. | Max. | Unit |
| 3-1. | Resistance At 25℃ |
Ta=25±0.05℃ PT≦0.1mw |
540 | 580 | 620 | Ω |
| 3-2. | Resistance At 100℃ |
Ta=100±1℃ PT≦0.1mw |
950 | 1000 | 1050 | Ω |
| 3-3. | Insulation test | 100VDC | 100 | / | / | MΩ |
| 3-4. | Withstand voltage test |
1250V AC 2mA In still air |
5 | / | / | Sec |
| 3-5. | Operation Temperature Range | / | -40 | / | +150 | ℃ |
| 3-6. | Rated Current IN | / | / | 2 | / | mA |
| 3-7. | Max Current Imax | / | 8 | mA | ||
| 3-8. | Thermal Time τ | In still air | / | / | 7 | S |
| 3-9. | Dissipation factor δ | In still air | 1.5 | / | / | mW/℃ |
| 3-10. | Rated Power Pmax | / | / | / | 50 | mW |
5. R-T Characteristic Parameter Table Of The Silicon PTC Thermistor Temperature Sensor
| Celsius | Fahrenheit | LK-KTY84-150 | ||||
| ℃ | ℉ | %/(K) | (Ω) | (K) | ||
| MIN | TYP | MAX | ||||
| -40 | -40 | 0.97 | 294 | 322 | 350 | ±8.85 |
| -30 | -22 | 0.94 | 327 | 356 | 385 | ±8.76 |
| -20 | -4 | 0.91 | 361 | 392 | 423 | ±8.7 |
| -10 | 14 | 0.88 | 397 | 430 | 463 | ±8.65 |
| 0 | 32 | 0.87 | 434 | 469 | 504 | ±8.61 |
| 10 | 50 | 0.85 | 475 | 512 | 549 | ±8.58 |
| 20 | 68 | 0.82 | 517 | 556 | 595 | ±8.55 |
| 25 | 77 | 0.80 | 540 | 580 | 620 | ±8.54 |
| 30 | 86 | 0.79 | 562 | 603 | 644 | ±8.53 |
| 40 | 104 | 0.78 | 610 | 653 | 696 | ±8.5 |
| 50 | 122 | 0.75 | 659 | 704 | 749 | ±8.46 |
| 60 | 140 | 0.73 | 711 | 758 | 805 | ±8.42 |
| 70 | 158 | 0.67 | 768 | 814 | 860 | ±8.37 |
| 80 | 176 | 0.63 | 827 | 873 | 919 | ±8.31 |
| 90 | 194 | 0.62 | 887 | 935 | 983 | ±8.25 |
| 100 | 212 | 0.62 | 950 | 1000 | 1050 | ±8.17 |
| 110 | 230 | 0.62 | 1011 | 1068 | 1125 | ±8.66 |
| 120 | 248 | 0.58 | 1077 | 1138 | 1199 | ±9.17 |
| 130 | 266 | 0.52 | 1148 | 1209 | 1270 | ±9.69 |
| 140 | 284 | 0.51 | 1215 | 1282 | 1349 | ±10.24 |
| 150 | 302 | 0.50 | 1279 | 1352 | 1425 | ±10.8 |
6. Features Of The Silicon PTC Thermistor Temperature Sensor
1. KTY84 temperature sensor chip, the structure is based on the principle of diffusion resistance, with a true approximate linear temperature coefficient, ensuring high accuracy of temperature measurement. (The temperature changes from -40°C to +180°C, and the resistance value changes approximately linearly from about 300Ω to 1600Ω.)
2. KTY84 temperature sensor chip, based on "silicon batch processing technology", has good product consistency and strong interchangeability."
3. KTY84 temperature sensor chip, the main component is silicon, silicon is inherently stable, so it has extremely high reliability and extremely long service life (it has very little drift in up to 50 years, repeating its characteristics for millions of times The curve remains unchanged.)
4. KTY84 temperature sensor chip, the electrode is a Ni-Sn composite electrode, which has high reliability and good solderability.

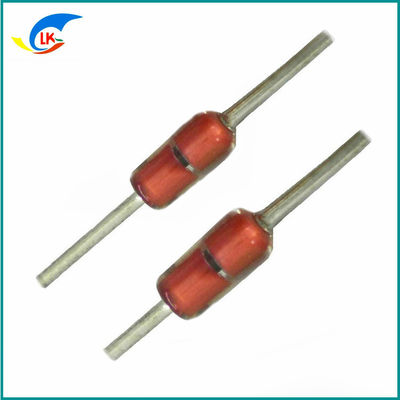

5. KTY84 standard components are DO-35 glass packaging structure with axial leads. The structure is firm, the electrode contact is stable, and it can be used in harsh environments such as high temperature, high humidity and extreme cold. The appearance is standardized, and it has a small size and fast response. advantage.
6. The KTY84 temperature sensor is packaged and connected with PTFE leads and heat shrinkable tubes, and can withstand temperatures above 200°C. The resistance and leads are connected by copper tape riveting.
7.Silicon Sensors Application Precaution Of The Silicon PTC Thermistor Temperature Sensor
Minimum lead wire length tailored to shall be ≥8mm.
In lead wire bending, bending point shall be more than 2mm away from glass body part.
8.Mounting and Handling Recommendations
Excessive forces applied to a sensor may cause serious damage. To avoid this, the following recommendations should be adhered to:
No perpendicular forces must be applied to the body
During bending, the leads must be supported
Bending close to the body must be done very carefully
Axial forces to the body can influence the accuracy of the sensor and should be avoided
These sensors can be mounted on a minimum pitch of >5 mm
9.Soldering and Welding
Avoid any force on the body or leads during, or just after, soldering.
Do not correct the position of an already soldered sensor by pushing, pulling or twisting the body.
Prevent fast cooling after soldering.
For hand soldering, where mounting is not on a printed-circuit board, the soldering temperature should be <300C the soldering time <3 s and the distance between body and soldering point >1.5 mm.
For hand soldering, dip, wave or other bath soldering, mounted on a printed-circuit board, the
soldering temperature should be <300C, the soldering time <5 s and the distance between body and soldering point >1.5 mm.
The distance between the body and the welding point should be >0.5 mm. Care should be taken to ensure that welding current never passes through the sensor.
﹡KTY types and LPTC types are all DO-35 precision glass sealed
﹡Our company undertakes the production of various sensors using the above components
﹡To facilitate installation, our company can undertake products of the same type and specifications with one-way lead plastic packaging components
﹡The company's research, development and production of silicon thermistors and sensors with various special parameters and structural forms
Different wire lengths can be customized, and the following specifications can be processed:
Model: KTY83-110 KTY83-120 KTY83-121 KTY83-122 KTY83-150 KTY83-151 KTY83-152
KTY83-110 R25℃=1000Ω ±1% operating temperature -40℃~175℃
KTY83-120 R25℃=1000Ω ±2% operating temperature -40℃~175℃
KTY83-121 R25℃=990Ω ±1% operating temperature -40℃~175℃
KTY83-122 R25℃=1010Ω ±1% operating temperature -40℃~175℃
KTY83-150 R25℃=1000Ω ±5% operating temperature -40℃~175℃
KTY83-151 R25℃=975Ω ±2.5% Working temperature -40℃~175℃
KTY83-152 R25℃=1025Ω ±2.5% Working temperature -40℃~175℃
Factory real shot display:
The PTC Thermistor is a highly efficient and reliable temperature sensing device that is widely used in various industries. It is designed to accurately measure temperature changes and provide a stable and precise output.
With a cable length of 620mm, this PTC Thermistor can be easily installed in different environments and applications. Its long cable also allows for flexibility in placement, making it suitable for a wide range of uses.
The PTC Thermistor has a resistance of R25=580Ω±40Ω, ensuring high precision and accuracy in temperature measurement. This resistance value remains stable even under extreme conditions, allowing for consistent and reliable performance.
The output type of this PTC Thermistor is wire type, with three cores for easy connection. This makes it convenient for installation and integration into various systems.
The PTC Thermistor is designed with a 2.0 PTFE heat shrinkable tube, providing protection against external factors such as moisture, chemicals, and mechanical stress. This tube also helps to enhance the durability and longevity of the device.
The terminal of the PTC Thermistor is made of 2.0 copper strip, which ensures a secure and stable connection. This material also has excellent conductivity, allowing for fast and accurate transmission of data.
With its high precision, fast response, stable performance, and durable construction, the PTC Thermistor is a reliable temperature sensing solution for a wide range of applications. It is flexible and easy to install, making it suitable for use in various industries such as automotive, HVAC, and industrial automation.
Choose the PTC Thermistor for your temperature sensing needs and experience its wide range of applications and benefits. With its efficient design and advanced technology, it is the ideal solution for accurate and reliable temperature measurement.
| Product Name | Silicon PTC Thermistor Temperature Sensor |
|---|---|
| Terminal | 2.0 Copper Strip Terminal |
| Sensing Thermistor | LK-KTY84-150 |
| High Light | Silicon KTY81 PTC Thermistor, Copper Strip Linear Ptc Thermistor |
| Cable | UL1332 26AWG TS Black PTFE |
| Tube Length | 50mm |
| Cable Length | 620mm |
| Resistance | R25=580Ω±40Ω |
| Tube | 2.0 PTFE Heat Shrinkable Tube |
| Output type Wire type | Three Cores |
Are you looking for a reliable and accurate temperature sensor for your electronic devices? Look no further, because we have the perfect solution for you - the Silicon PTC Thermistor Temperature Sensor by Lin Kun.
Our brand, Lin Kun, has been a trusted name in the industry for producing high-quality and efficient temperature sensors for various applications. With our Silicon PTC Thermistor, you can monitor and control the temperature of your devices with ease and precision.
The Silicon PTC Thermistor Temperature Sensor is a type of Positive Temperature Coefficient (PTC) thermistor, which means that its resistance increases with an increase in temperature. This unique characteristic makes it a highly reliable and accurate temperature sensor for various applications.
The PTC thermistor is encapsulated in a 2.0 PTFE heat shrinkable tube, ensuring its durability and protection against external elements. The tube length of 50mm provides enough space for the thermistor to measure the temperature accurately. The three-core wire type output allows for easy and convenient installation.
The Silicon PTC Thermistor Temperature Sensor is suitable for a wide range of applications, including:
With its high sensitivity and accuracy, our PTC Thermistor is the perfect choice for temperature monitoring and control in these applications.
At Lin Kun, we pride ourselves on providing top-quality products that meet the highest standards of performance and reliability. Our Silicon PTC Thermistor Temperature Sensor is no exception. Here are some reasons why you should choose our product:
Experience the convenience and precision of our Silicon PTC Thermistor Temperature Sensor today. Trust Lin Kun for all your temperature sensing needs.
Brand Name: Lin Kun
Model Number: Silicon PTC Thermistor Temperature Sensor
Place of Origin: China
Terminal: 2.0 Copper Strip Terminal
Sensing Thermistor: LK-KTY84-150
Tube: 2.0 PTFE Heat Shrinkable Tube
Resistance: R25=580Ω±40Ω
Cable: UL1332 26AWG TS Black PTFE
Positive Temperature Coefficient Thermistor is a type of thermistor that has a resistance that increases with increasing temperature. Our Lin Kun Silicon PTC Thermistor Temperature Sensor is a reliable and high-quality product that is suitable for various temperature sensing applications.
With our customized service, you can choose the specific terminal, sensing thermistor, tube, resistance, and cable for your PTC thermistor. Our 2.0 Copper Strip Terminal ensures a secure and stable connection, while our LK-KTY84-150 sensing thermistor provides accurate temperature readings. The 2.0 PTFE Heat Shrinkable Tube offers excellent insulation and protection for the thermistor, and the R25=580Ω±40Ω resistance ensures consistent and precise measurements. Additionally, our UL1332 26AWG TS Black PTFE cable is durable and suitable for various environments.
Choose Lin Kun for your PTC Thermistor needs and enjoy our Positive Temperature Coefficient Thermistor with our customized service. Contact us now to learn more!
PTC Thermistor is carefully packaged to ensure safe and secure delivery to our customers. Our packaging is designed to protect the product from any potential damage during transportation.
We offer various shipping options to meet the needs of our customers:
Our shipping team carefully handles all orders to ensure timely and accurate delivery. We also provide tracking information for all shipments so our customers can monitor the status of their orders.
