Product Details:
|
| Product Name: | Silicon PTC Thermistor Temperature Sensor | Model: | KTY84-130 |
|---|---|---|---|
| Terminal:: | 2.0 Copper Strip Terminal | Cable:: | UL1332 26AWG TS Black PTFE |
| Cable Length:: | 620mm | Tube:: | 2.0 PTFE Heat Shrinkable Tube |
| Tube Length:: | 50mm | Output Type Wire Type: | (three Cores) |
| High Light:: | Silicon KTY83 PTC Thermistor, Copper Strip Linear Ptc Thermistor | Temperature Measurement Range: | -40~125 Degrees |
| Series: | PTC | ||
| Highlight: | 620mm Cable Length Silicon Thermistor,KTY84-130 Silicon Thermistor |
||
PTFE coated silicon PTC thermistor temperature sensor KTY81 KTY83 KTY84 KTY10 620MM

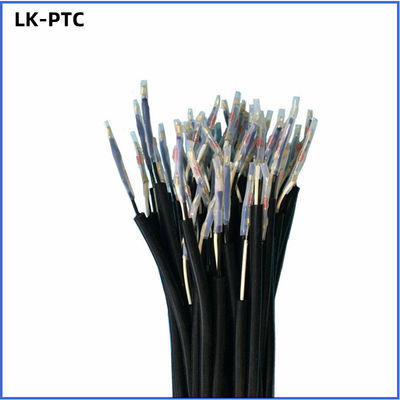

Silicon Thermistor Temperature Sensor KTY84-130 PTC Motor Temperature Protection Sensor
1. Description of silicon PTC thermistor temperature sensor
Silicon PTC thermistor temperature sensor KTY84-150-620TW is made of chip KTY84-150 and is compatible with KTY83-1KΩ series. The chip is soldered to the PTFE cable UL1332 26AWG TS Black through 2.0 copper bus terminals, and then encapsulated with 2.0 PTFE heat shrink tube for a compact design. It has the characteristics of fast response, long-term stability and good consistency. "Silicon material positive electrode" temperature coefficient "KTY series thermistor and temperature sensor" is suitable for "drive motors and control motors". The main models include KTY84-130, KTY84-150, KTY84-151 and KTY84-152. The sensor The lead length and color can be customized.
2.Typical Application Of The Silicon PTC Thermistor Temperature Sensor
Motion control temperature sensor, temperature sensing and controls in drives and motors, spindles, inverters and control systems, etc.
Industrial automation control equipment.
Home appliance temperature detection and compensation.
Precision circuit and crystal oscillator temperature compensation.
Temperature compensation of silicon semiconducting devices.
Temperature compensation of instrumentation amplifier.
A/D converter temperature compensation.
Micro motor timing control.
Automobile temperature detection and control.
Medical equipment temperature detection and control.
Linear PTC thermistors applications also include transmission, engine oil and coolant, heating system, overheating protection, amplifiers, power supplies, transducers, telemetry, computers, magnetic amplifiers, thermometry, meteorology, temperature regulation and over-temperature protection.
3. Dimension Of The Silicon PTC Thermistor Temperature Sensor (unit:mm)
| Serial number | Material name | Specifications / Models | Texture of material |
| 2-1. | LEAD WIRE | UL1332 26AWG TS Black(OD1.0±0.1mm) | PTFE |
| 2-2. | TERMINAL | 2.0 Copper strip terminal | |
| 2-3. | TUBE | 2.0 PTFE heat shrinkable tube | |
| 2-4. | THERMISTOR | R25=580Ω±40Ω | LK-KTY84-150 |
4. Specification Of The Silicon PTC Thermistor Temperature Sensor
| Serial number | Item | Test Conditions | Min. | Nor. | Max. | Unit |
| 3-1. | Resistance At 25℃ |
Ta=25±0.05℃ PT≦0.1mw |
540 | 580 | 620 | Ω |
| 3-2. | Resistance At 100℃ |
Ta=100±1℃ PT≦0.1mw |
950 | 1000 | 1050 | Ω |
| 3-3. | Insulation test | 100VDC | 100 | / | / | MΩ |
| 3-4. | Withstand voltage test |
1250V AC 2mA In still air |
5 | / | / | Sec |
| 3-5. | Operation Temperature Range | / | -40 | / | +150 | ℃ |
| 3-6. | Rated Current IN | / | / | 2 | / | mA |
| 3-7. | Max Current Imax | / | 8 | mA | ||
| 3-8. | Thermal Time τ | In still air | / | / | 7 | S |
| 3-9. | Dissipation factor δ | In still air | 1.5 | / | / | mW/℃ |
| 3-10. | Rated Power Pmax | / | / | / | 50 | mW |
5. R-T Characteristic Parameter Table Of The Silicon PTC Thermistor Temperature Sensor
| Celsius | Fahrenheit | LK-KTY84-150 | ||||
| ℃ | ℉ | %/(K) | (Ω) | (K) | ||
| MIN | TYP | MAX | ||||
| -40 | -40 | 0.97 | 294 | 322 | 350 | ±8.85 |
| -30 | -22 | 0.94 | 327 | 356 | 385 | ±8.76 |
| -20 | -4 | 0.91 | 361 | 392 | 423 | ±8.7 |
| -10 | 14 | 0.88 | 397 | 430 | 463 | ±8.65 |
| 0 | 32 | 0.87 | 434 | 469 | 504 | ±8.61 |
| 10 | 50 | 0.85 | 475 | 512 | 549 | ±8.58 |
| 20 | 68 | 0.82 | 517 | 556 | 595 | ±8.55 |
| 25 | 77 | 0.80 | 540 | 580 | 620 | ±8.54 |
| 30 | 86 | 0.79 | 562 | 603 | 644 | ±8.53 |
| 40 | 104 | 0.78 | 610 | 653 | 696 | ±8.5 |
| 50 | 122 | 0.75 | 659 | 704 | 749 | ±8.46 |
| 60 | 140 | 0.73 | 711 | 758 | 805 | ±8.42 |
| 70 | 158 | 0.67 | 768 | 814 | 860 | ±8.37 |
| 80 | 176 | 0.63 | 827 | 873 | 919 | ±8.31 |
| 90 | 194 | 0.62 | 887 | 935 | 983 | ±8.25 |
| 100 | 212 | 0.62 | 950 | 1000 | 1050 | ±8.17 |
| 110 | 230 | 0.62 | 1011 | 1068 | 1125 | ±8.66 |
| 120 | 248 | 0.58 | 1077 | 1138 | 1199 | ±9.17 |
| 130 | 266 | 0.52 | 1148 | 1209 | 1270 | ±9.69 |
| 140 | 284 | 0.51 | 1215 | 1282 | 1349 | ±10.24 |
| 150 | 302 | 0.50 | 1279 | 1352 | 1425 | ±10.8 |
6. Features Of The Silicon PTC Thermistor Temperature Sensor
1. KTY84 temperature sensor chip, the structure is based on the principle of diffusion resistance, with a true approximate linear temperature coefficient, ensuring high accuracy of temperature measurement. (The temperature changes from -40°C to +180°C, and the resistance value changes approximately linearly from about 300Ω to 1600Ω.)
2. KTY84 temperature sensor chip, based on "silicon batch processing technology", has good product consistency and strong interchangeability."
3. KTY84 temperature sensor chip, the main component is silicon, silicon is inherently stable, so it has extremely high reliability and extremely long service life (it has very little drift in up to 50 years, repeating its characteristics for millions of times The curve remains unchanged.)
4. KTY84 temperature sensor chip, the electrode is a Ni-Sn composite electrode, which has high reliability and good solderability.
5. KTY84 standard components are DO-35 glass packaging structure with axial leads. The structure is firm, the electrode contact is stable, and it can be used in harsh environments such as high temperature, high humidity and extreme cold. The appearance is standardized, and it has a small size and fast response. advantage.
6. The KTY84 temperature sensor is packaged and connected with PTFE leads and heat shrinkable tubes, and can withstand temperatures above 200°C. The resistance and leads are connected by copper tape riveting.
7.Silicon Sensors Application Precaution Of The Silicon PTC Thermistor Temperature Sensor
Minimum lead wire length tailored to shall be ≥8mm.
In lead wire bending, bending point shall be more than 2mm away from glass body part.
8.Mounting and Handling Recommendations
Excessive forces applied to a sensor may cause serious damage. To avoid this, the following recommendations should be adhered to:
No perpendicular forces must be applied to the body
During bending, the leads must be supported
Bending close to the body must be done very carefully
Axial forces to the body can influence the accuracy of the sensor and should be avoided
These sensors can be mounted on a minimum pitch of >5 mm
9.Soldering and Welding
Avoid any force on the body or leads during, or just after, soldering.
Do not correct the position of an already soldered sensor by pushing, pulling or twisting the body.
Prevent fast cooling after soldering.
For hand soldering, where mounting is not on a printed-circuit board, the soldering temperature should be <300C the soldering time <3 s and the distance between body and soldering point >1.5 mm.
For hand soldering, dip, wave or other bath soldering, mounted on a printed-circuit board, the
soldering temperature should be <300C, the soldering time <5 s and the distance between body and soldering point >1.5 mm.
The distance between the body and the welding point should be >0.5 mm. Care should be taken to ensure that welding current never passes through the sensor.
﹡KTY types and LPTC types are all DO-35 precision glass sealed
﹡Our company undertakes the production of various sensors using the above components
﹡To facilitate installation, our company can undertake products of the same type and specifications with one-way lead plastic packaging components
﹡The company's research, development and production of silicon thermistors and sensors with various special parameters and structural forms
Different wire lengths can be customized, and the following specifications can be processed:
Model: KTY83-110 KTY83-120 KTY83-121 KTY83-122 KTY83-150 KTY83-151 KTY83-152
KTY83-110 R25℃=1000Ω ±1% operating temperature -40℃~175℃
KTY83-120 R25℃=1000Ω ±2% operating temperature -40℃~175℃
KTY83-121 R25℃=990Ω ±1% operating temperature -40℃~175℃
KTY83-122 R25℃=1010Ω ±1% operating temperature -40℃~175℃
KTY83-150 R25℃=1000Ω ±5% operating temperature -40℃~175℃
KTY83-151 R25℃=975Ω ±2.5% Working temperature -40℃~175℃
KTY83-152 R25℃=1025Ω ±2.5% Working temperature -40℃~175℃
Factory real shot display:
Product Name: Silicon PTC Thermistor Temperature Sensor
Product Description: The Silicon PTC Thermistor Temperature Sensor is a type of Positive Temperature Coefficient Thermistor (PTC) used for temperature sensing. It is designed to have a high resistance at low temperatures and a low resistance at high temperatures, making it suitable for various temperature sensing applications.
Resistance: R25=580Ω±40Ω
Tube Length: 50mm
Tube: The sensor is enclosed in a 2.0 PTFE (Polytetrafluoroethylene) Heat Shrinkable Tube, providing protection against external elements and ensuring accurate temperature readings.
Terminal: The Silicon PTC Thermistor Temperature Sensor has 2.0 Copper Strip Terminals for easy and secure connection to a circuit or measurement device.
Applications: The Silicon PTC Thermistor Temperature Sensor is commonly used in various industries and applications, including but not limited to:
Advantages: The Silicon PTC Thermistor Temperature Sensor offers the following advantages:
Quality Control: The Silicon PTC Thermistor Temperature Sensor undergoes strict quality control measures to ensure consistent and reliable performance. Each sensor is tested for accuracy, resistance, response time, and durability before being released to the market.
Certifications: Our Silicon PTC Thermistor Temperature Sensor is RoHS (Restriction of Hazardous Substances) compliant and meets industry standards for quality and safety.
Customization: We offer customization services to meet specific requirements of our customers, such as different resistance values, tube lengths, and terminal options.
Conclusion: The Silicon PTC Thermistor Temperature Sensor is a versatile and reliable temperature sensing solution, suitable for a wide range of applications. With its high accuracy and fast response time, it is a valuable tool for temperature monitoring and control in various industries. Trust our product for accurate and reliable temperature sensing results.
| Parameter | Value |
|---|---|
| Cable Length | 620mm |
| Sensing Thermistor | LK-KTY84-150 |
| Tube | 2.0 PTFE Heat Shrinkable Tube |
| High Light | Silicon KTY81 PTC Thermistor, Copper Strip Linear PTC Thermistor |
| Resistance | R25=580Ω±40Ω |
| Tube Length | 50mm |
| Product Name | Silicon PTC Thermistor Temperature Sensor |
| Output Type | Wire Type (three Cores) |
| Cable | UL1332 26AWG TS Black PTFE |
| Terminal | 2.0 Copper Strip Terminal |
| Keyword | Positive Temperature Coefficient Thermistor |
Brand Name: Lin Kun
Model Number: Silicon PTC Thermistor Temperature Sensor
Place of Origin: China
PTC Thermistor is a type of temperature sensor that is widely used in various industries. The positive temperature coefficient thermistor (PTC) is a type of thermistor that exhibits a positive resistance-temperature characteristic. This means that as the temperature increases, the resistance of the PTC thermistor also increases. This makes it an ideal choice for temperature sensing applications.
The Silicon PTC Thermistor Temperature Sensor from Lin Kun can be used in a wide range of applications, including:
The Silicon PTC Thermistor Temperature Sensor from Lin Kun comes with the following features:
The Silicon PTC Thermistor Temperature Sensor from Lin Kun has the following specifications:
The Silicon PTC Thermistor Temperature Sensor from Lin Kun has several advantages, including:
The Silicon PTC Thermistor Temperature Sensor from Lin Kun is a versatile and reliable temperature sensor that can be used in various applications. With its high accuracy, wide operating temperature range, and easy installation, it is the perfect choice for all your temperature sensing needs. Trust Lin Kun for all your PTC thermistor requirements and experience the highest quality and performance.
Brand Name: Lin Kun
Model Number: Silicon PTC Thermistor Temperature Sensor
Place of Origin: China
Cable Length: 620mm
High Light: Silicon KTY81 PTC Thermistor, Copper Strip Linear PTC Thermistor
Output type: Wire type (three Cores)
Cable: UL1332 26AWG TS Black PTFE
Resistance: R25=580Ω±40Ω
Our Silicon PTC Thermistor Temperature Sensor is a Positive Temperature Coefficient Thermistor that offers reliable and accurate temperature sensing. With our customized service, you can tailor this product to fit your specific needs and requirements.
Our team at Lin Kun understands the importance of providing high-quality and customizable products to our customers. That's why we offer a variety of options for our Silicon PTC Thermistor Temperature Sensor, including cable length, output type, and cable type.
We use high-quality materials to ensure the durability and reliability of our Silicon PTC Thermistor Temperature Sensor. The cable length of 620mm provides flexibility and convenience for installation. The high light features, such as the Silicon KTY81 PTC Thermistor and Copper Strip Linear PTC Thermistor, offer superior performance and accuracy.
Our Silicon PTC Thermistor Temperature Sensor also comes with a UL1332 26AWG TS Black PTFE cable, which is resistant to high temperatures and offers excellent insulation properties. The resistance of R25=580Ω±40Ω ensures accurate and stable temperature readings.
Choose Lin Kun for your customized Silicon PTC Thermistor Temperature Sensor needs and experience reliable and accurate temperature sensing. Contact us today to learn more about our custom options and services.
The PTC Thermistor is carefully packaged to ensure safe delivery to our customers. Each thermistor is individually packaged in a protective plastic bag to prevent any damage during transit. The bag is then placed in a sturdy cardboard box with ample padding to further protect the thermistor from any potential impacts. The packaging is designed to withstand rough handling and extreme weather conditions, ensuring that the product arrives in perfect condition.
We offer various shipping options to meet the specific needs of our customers. Our standard shipping method is through reliable courier services, which provide tracking information for our customers to easily monitor the status of their shipment. For urgent orders, we also offer expedited shipping services at an additional cost. We strive to ship all orders within 24 hours of receiving them to ensure prompt delivery to our customers.
For international orders, we take extra care to comply with all customs regulations and provide all necessary documentation to ensure a smooth delivery process. We also offer the option for customers to use their own shipping accounts, if preferred.
At PTC Thermistor, we value the satisfaction of our customers and strive to provide a seamless packaging and shipping experience. If you have any specific packaging or shipping requirements, please feel free to contact us and we will do our best to accommodate your needs.
