Product Details:
|
| Wire: | UL10362 #24AWG | Filling: | FC500/FC505A-4HV |
|---|---|---|---|
| Cap: | 6.35*40+S19*7.4 SUS | B25/50: | 3950K±1% |
| R25: | 47KΩ±1% | ||
| Highlight: | 100K3950 Ntc Temperature Sensor,Smart Toilet Ntc Temperature Sensor,1% Ntc Temperature Sensor |
||
Description
Thermistor sensor also measures temperature through the temperature changes of the material, but it uses temperature -sensitive semiconductor materials such as silicon. As the temperature rises, the resistance value of semiconductor materials will be reduced, and the sensor will determine the temperature by measuring the change of this resistance.
Specification
| NTC Temperature Sensor [Fast and Sensitive] | ||||||
| Size parameters | D | L | E | F | Φod | G |
| Unit(mm) | / | 150.0 | 25.0 | / | 2.5 | / |
| Features |
1. Third-order bullet-shaped structure, fast response time 2. The temperature measurement point is precise and small 3. Work stably for a long time 4. Small temperature error 5.Wide resistance range: 1KΩ~500KΩ |
|||||
| Product applications | smart toilets, electric water heaters, coffee machines, water dispensers, car thermostatic cups, etc. | |||||
| Working temperature range | -40~150℃ | |||||
| Response time | Approx 3 S(depends on chip resistance) | |||||
| Withstand voltage | 1800V AC 0.5mA 30 seconds | |||||

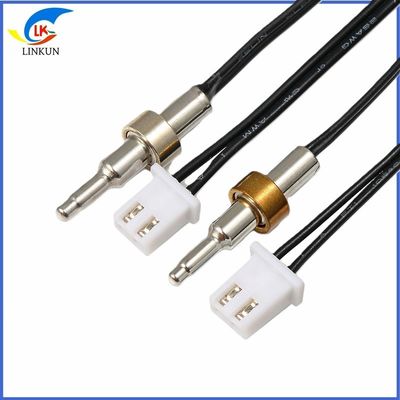

Actual Photo Display
