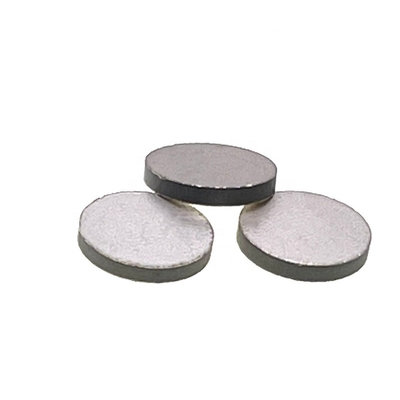

8mm PTC Heating Chip 14V 70C 18R for Automotive and Appliances

Large Image : 8mm PTC Heating Chip 14V 70C 18R for Automotive and Appliances

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Linkun
Model Number:	MZ4 Heating PTC Thermistor
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	500

Contact Now

8mm PTC Heating Chip 14V 70C 18R for Automotive and Appliances

Description

Diameter:	8mm	Thickness:	2mm
Operating Voltage:	14V	Surface Temperature:	70°C
Resistance:	18Ω ±25%	Resistance Tolerance:	±20% / ±25% / ±30%
Material:	Ceramic Composition	Electrode Material:	Silver/Aluminum
Series:	MZ4	Shape:	Round
Curie Temperature:	70°C	Maximum Voltage:	30V
Size Options:	8x1.95mm / 8x2mm / 8x3mm / 8x4mm	Function:	Temperature Regulation
Power Consumption:	Not Specified
Highlight:	8mm PTC heating chip for automotive , 14V PTC heating element with warranty , 70C PTC heater for appliances

Round PTC Heating Thermistor - 8mm Diameter, 2mm Thickness

Product Specifications

Attribute	Value
Specification	8*2 14V 70C 18R
Packaging Type	Vacuum blister + carton
Application	Automobile industry/household appliance industry
Package / Case	Ceramic Composition
Series	MZ4
Features	Round piece
Size / Dimension	81.95 /82 / 83mm/84mm
Description	Constant temperature PTC heating chip
Resistance	18R±25%
Resistance Tolerance	±20% ± 25% ± 30% 50%
Name	Heating PTC Thermistor
Shape	Round
Surface temperature	R25:M:±20% X:±25% N:±30% S:Special
Function	Temperature regulation and automatic control function
Material	Ceramic Composition/Silver electrode/aluminum electrode

Product Description

Applications

Automotive Industry: Cabin heating for electric vehicles, diesel preheating, windshield washer nozzle heating, battery pack temperature control
Household Industry: Washing machine door locks, warm air heating, mosquito repellents, medical equipment, fuel burner preheating
Other Applications: Fiber optic communication distributors, camera lenses, plastic welding

Key Features

Excellent lifespan characteristics, outperforming nickel-chromium heaters
Built-in temperature regulation and self-control functions
Compatible with bimetallic strip mechanisms
Compact and lightweight design for easy installation
No fire risk during operation

Technical Specifications

Low Voltage Models

Product Number	Curie Temp (°C)	Surface Temp (°C)	25°C Resistance (Ω)	Operating Voltage (V)	Max Voltage (V)	Size (mm)

Notes: 1. □ represents R25 deviation range (M:±20%, X:±25%, N:±30%, S:Special) 2. Operating voltage: 1.5-68V 3. Surface temperature: 35-350°C 4. Custom specifications available

High Voltage Models

Product Number	Curie Temp (°C)	Surface Temp (°C)	25°C Resistance (Ω)	Operating Voltage (V)	Max Voltage (V)	Size (mm)

Notes: 1. □ represents R25 deviation range (M:±20%, X:±25%, N:±30%, S:Special) 2. Operating voltage: 100-1000V 3. Surface temperature: 35-350°C 4. Custom specifications available

PTC Thermistor for Motor Starting

Chip Type (MZ9 Series)

Applications

Compressor starting for refrigerators, air conditioners, and heat pumps
Single-phase induction motor starting
Inrush current suppression for power supplies and controllers

Features

Reliable metal electrode construction
Pressure clamp installation for long life
No electrical noise, easy installation
High voltage and impact current resistance
Safety certifications: UL, CUL, VDE, CQC
RoHS compliant
