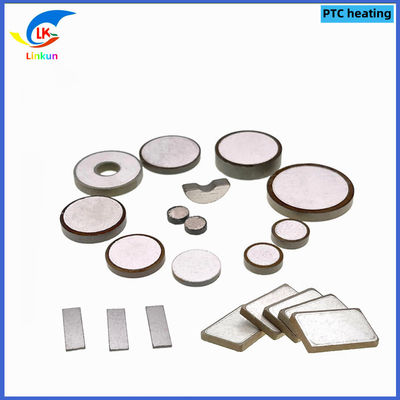

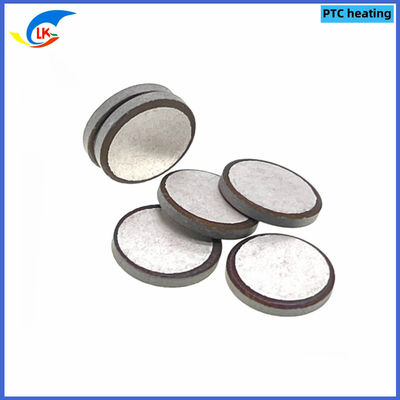

Household appliances low-voltage disc ceramic heating plate PTC thermistor mosquito repellent hair straightener heating plate for rice cooker
PTC thermistor for heating
--Low voltage use type
--High voltage use type
category
PTC thermistor for heating
Product Description
application
• Automobile industry
◆ Cabin heating system for electric vehicles
◆ Diesel preheating and filter heating
◆ Heating of crankcase exhaust system
◆ Windshield washer nozzle heating
◆ Electric vehicle battery pack constant temperature
• Household industry
◆ Heating of washing machine door lock and thermostat bimetal piece
◆ Warm air heating
◆ Heating of mosquito repellent and perfume vaporizer
◆ Heating of medical devices
◆ Oil preheating of oil burner
◆ Heating of thermal actuator
• Others
◆ Heating of optical fiber communication distributors
◆ Heating of camera lens
◆Heating of sol gun and plastic welding
Features
◆ Excellent life characteristics, ensuring a longer service life than nickel-chromium heaters under normal operating conditions
◆ The heater element itself has temperature adjustment and self-control functions
◆ Combined with bimetallic plates to achieve interlocking or obtain available stroke displacement
◆ Easy to achieve compact and lightweight component design and easy installation
◆ No fire risk
Structure and parameters
Model and parameters
◆ Low voltage use
| Product number |
Curie temperature |
Surface temperature |
25°C zero power resistor |
Operating Voltage |
Maximum voltage |
size |
| Tc(℃) |
Ts(±10℃) |
(Ω) |
Vr(V) |
Vmax(V) |
D/L(mm) |
d/W(mm) |
T(mm) |
| MZ4X1Φ190415-2R0□9/40 |
0 |
40 |
2 |
9 |
18 |
Φ19.0 |
Φ4.3 |
1.5 |
| MZ4P4S1210-9R0□V12/70 |
40 |
70 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4P6S1210-9R0□V12/80 |
60 |
80 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4P8S1210-9R0□V12/95 |
80 |
95 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4P9S0825-360□V24/115 |
90 |
115 |
36 |
24 |
30 |
Φ8.5 |
- |
2.5 |
| MZ4X0S0815-180□V24/120 |
100 |
120 |
18 |
24 |
30 |
Φ8.0 |
- |
1.5 |
| MZ4X1Φ160415□12/120 |
110 |
120 |
2.4 |
12 |
24 |
Φ16.0 |
Φ4.3 |
1.5 |
| MZ4X0S0815-100□V24/125 |
100 |
125 |
10 |
24 |
30 |
Φ8.0 |
- |
1.5 |
| MZ4X2S1210-9R0□V12/130 |
120 |
130 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4X3S1215-3R0□V12/140 |
130 |
140 |
3 |
12 |
14 |
Φ12.0 |
- |
1.5 |
| MZ4X3S1215-1R5□V12/145 |
135 |
145 |
1.55 |
13.5 |
28 |
Φ12.0 |
- |
1.5 |
| MZ4X5S1216-2R0□V13/160 |
150 |
160 |
2 |
13.5 |
28 |
Φ12.0 |
- |
1.6 |
| MZ4X5S1210-9R0□V12/165 |
155 |
165 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4X8S1210-9R0□V12/185 |
180 |
185 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4X9S0820-100□V18/215 |
195 |
215 |
100 |
18 |
36 |
Φ8.0 |
- |
2 |
| MZ4Y4S1516-4R5□V13/250 |
240 |
250 |
4.5 |
13.5 |
24 |
Φ14.7 |
- |
1.65 |
| MZ4P8S350614-3R2□V12/110 |
80 |
110 |
3.2 |
12 |
20 |
35 |
6.2 |
1.4 |
| MZ4X3S221225-1R8□V14/145 |
135 |
145 |
1.88 |
14 |
18 |
22 |
12 |
2.5 |
| MZ4X3S341524-3R1□V24/145 |
135 |
145 |
3.13 |
24 |
36 |
34 |
15 |
2.4 |
| MZ4X2S350614-3R2□V12/145 |
120 |
145 |
3.2 |
12 |
20 |
35 |
6.2 |
1.4 |
| MZ4X4S281216-1R6□V14/150 |
140 |
150 |
1.65 |
13.5 |
28 |
28 |
12 |
1.65 |
| MZ4X4S360820-5R0□V24/150 |
140 |
150 |
5 |
24 |
36 |
36 |
8 |
2 |
| MZ4X5S300610-4R5□V14/160 |
150 |
160 |
4.5 |
13.5 |
24 |
30 |
5.8 |
1 |
| MZ4X5S160416-1R5□V12/165 |
155 |
165 |
1.5 |
12 |
24 |
16.5 |
4.5 |
1.65 |
| MZ4X6S341524-1R7□V12/170 |
160 |
170 |
1.7 |
12 |
24 |
34 |
15 |
2.4 |
| MZ4X6S300610-200□V48/170 |
160 |
170 |
20 |
48 |
60 |
30 |
5.8 |
1 |
| MZ4X7S300610-2R3□V12/180 |
170 |
180 |
2.35 |
12 |
24 |
30 |
5.8 |
1 |
| MZ4X7S300610-3R0□V12/180 |
170 |
180 |
3 |
12 |
24 |
30 |
5.8 |
1 |
| MZ4X6S350614-3R2□V12/180 |
160 |
180 |
3.2 |
12 |
20 |
35 |
6.2 |
1.4 |
| MZ4X8S350614-3R2□V12/200 |
180 |
200 |
3.2 |
12 |
20 |
35 |
6.2 |
1.4 |
| MZ4Y2S350614-6R4□V12/230 |
220 |
230 |
6.4 |
12 |
20 |
35 |
6.2 |
1.4 |
| Remark: |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| 1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special |
| |
|
|
|
|
|
|
|
|
| 2. The operating voltage can be selected from 1.5-68V, and the surface temperature can be selected from 35-350℃ |
| |
|
|
|
|
|
|
|
|
| 3. Other specifications or parameters can be customized |
|
|
|
| |
|
|
|
|
|
|
|
|
| ◆ High voltage use |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| Product number |
Curie temperature |
Surface temperature |
25°C zero power resistor |
Operating Voltage |
Maximum voltage |
size |
| Tc(℃) |
Ts(±10℃) |
(Ω) |
Vr(V) |
Vmax(V) |
D/L(mm) |
W(mm) |
T(mm) |
| MZ4P5S1220-122□V230/100 |
50 |
100 |
1200 |
230 |
270 |
Φ11.8 |
- |
2 |
| MZ4P9S1220-122□V230/125 |
90 |
125 |
1200 |
230 |
270 |
Φ11.8 |
- |
2 |
| MZ4X2S1325-102□V110/135 |
120 |
135 |
1000 |
110 |
140 |
Φ13.0 |
- |
2.5 |
| MZ4X1S0803-422□V230/135 |
110 |
135 |
4200 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4X1S1220-122□V230/140 |
110 |
140 |
1200 |
230 |
270 |
Φ11.8 |
- |
2 |
| MZ4X3S1220-122□V230/160 |
130 |
160 |
1200 |
230 |
270 |
Φ11.8 |
- |
2 |
| MZ4X5S0803-422□V230/170 |
150 |
170 |
4200 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4X5S1220-122□V230/180 |
150 |
180 |
1200 |
230 |
270 |
Φ11.8 |
- |
2 |
| MZ4X8S0803-422□V230/200 |
180 |
200 |
4200 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4Y2S0803-602□V230/235 |
220 |
235 |
6000 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4Y3S0803-102□V230/240 |
230 |
240 |
1000 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4P5S350620-701□V230/100 |
50 |
100 |
700 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4P7S350620-701□V230/115 |
70 |
115 |
700 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4X1S350620-701□V230/145 |
110 |
145 |
700 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4X3S350620-701□V230/160 |
130 |
160 |
700 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4X6S241520-302□V220/170 |
160 |
170 |
3000 |
220 |
480 |
24 |
15 |
2 |
| MZ4X6S241524-152□V360/170 |
160 |
170 |
1500 |
360 |
420 |
24 |
15 |
2.4 |
| MZ4X5S350620-701□V230/180 |
150 |
180 |
700 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4X5S281221-302□V400/190 |
155 |
190 |
3000 |
400 |
600 |
28.8 |
12.4 |
2.1 |
| MZ4X8S350620-701□V230/205 |
180 |
205 |
700 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4X9S291021-402□V350/215 |
190 |
215 |
4000 |
350 |
800 |
28.8 |
9.8 |
2.1 |
| MZ4X9S393126-151□V600/220 |
195 |
220 |
150 |
600 |
750 |
39.2 |
30.8 |
2.6 |
| MZ4Y2S393119-871□V350/240 |
220 |
240 |
875 |
350 |
450 |
39.2 |
30.8 |
1.9 |
| MZ4Y2S393125-871□V540/240 |
220 |
240 |
875 |
540 |
600 |
39.2 |
30.8 |
2.5 |
| MZ4Y2S350620-102□V230/240 |
220 |
240 |
1000 |
230 |
270 |
35 |
6.2 |
2 |
| MZ4Y7S350620-132□V230/280 |
270 |
280 |
1300 |
230 |
270 |
35 |
6.2 |
2 |
Remark:
1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special
2. The working voltage can be selected from 100-1000V, and the surface temperature can be selected from 35-350℃
3. Other specifications or parameters can be customized
Product Description
Product Description:
PTC Chip is an electronic component that is used to generate heat for devices. It has a wide range of inductance, from 10mH to 10000mH. The dimension of the chip is from 5mm to 20mm. The impedance is from 5Ω to 10000Ω. It is a heating chip and a PTC chip resistor, which makes it suitable for many applications. PTC Chip offers reliable and efficient performance, making it an ideal choice for a wide range of applications.
Features:
- Product Name: PTC Heating Chip
- Temperature: 50-300°C
- Dimension: 5mm -20mm
- Package: Foam Packaging
- Weight: 0.1g-1g
Technical Parameters:
| Name |
PTC Chip |
| Voltage |
5V-250V |
| Material |
Silicon |
| Weight |
0.1g-1g |
| Capacitance |
1μF |
| Package |
Foam Packaging |
| Resistance |
2Ω-10000Ω |
| Frequency |
2MHz |
| Power |
5W |
| Impedance |
5Ω-10000Ω |
Applications:
The LK-PTC PTC Chip is a versatile product designed to provide reliable performance in a wide variety of applications. With its unique combination of inductance (10mH), capacitance (1μF), material (silicon) and dimension (5mm -20mm), it is perfect for use in a range of applications. It is an ideal choice for use in PTC starter chips, PTC ceramic heaters or any other PTC applications.
The LK-PTC PTC Chip can be used to provide a reliable and efficient power source in a variety of situations. It is an ideal choice for powering electric vehicles, providing reliable heat sources for heating systems, and for powering small electronic appliances. Its versatile design makes it perfect for use in both industrial and residential settings. The chip is also designed to be highly resistant to wear and tear, making it a durable and reliable choice for long-term use.
The LK-PTC PTC Chip is a highly reliable and efficient product that is designed to meet the demands of a wide range of applications. With its combination of high performance, low cost and durability, it is an ideal choice for both commercial and residential applications. Whether you are looking for a reliable source of power for your electric vehicle, an efficient heat source for your heating system, or a cost-effective solution for powering small electronic devices, the LK-PTC PTC Chip is the perfect choice.
Customization:
Customize Your PTC Chip!
Introducing the LK-PTC PTC Heatrs, PTC Heating Chip, and PTC Start Relay Chip! Our PTC Chip are available in a wide range of sizes from 5mm to 16mm, and we offer customization options to get the exact product you need. Our PTC Chip can come with a variety of specs to meet your needs, such as weight from 0.1g to 1g, inductance up to 10mH, resistance ranging from 2Ω to 10000Ω, temperature from 50 to 300°C, and frequency up to 2MHz. Produced in China, LK-PTC PTC Chip provide the reliable durability and performance you need.
Support and Services:
PTC Chip provides technical support and services, to help ensure your product is working properly and that your questions are answered quickly and efficiently.
Our technical support and services include:
- Free technical support for all our products
- Online chat and phone support
- Email support
- On-site technical support and maintenance
- Software and hardware updates
At PTC Chip, we strive to provide the best technical support and service possible. We are committed to helping you get the most out of your product, and making sure that you are satisfied with your purchase.
Packing and Shipping:
Packaging and Shipping PTC Chip
PTC Chip comes in a small package, designed to keep the product secure and safe during transportation. It is shipped in a padded envelope or box with bubble wrap surrounding the product. The shipping label includes a tracking number and is affixed to the package so customers can track the progress of their order. We take pride in our fast and reliable shipping services. Our goal is to have all orders delivered within 2-3 business days.
FAQ:
Q1: What is LK-PTC?
A1: LK-PTC is a brand of chip PTC (positive temperature coefficient) products, with model number 5mm-16mm, manufactured in China.
Q2: What is the size of the chip PTC?
A2: The chip PTC size ranges from 5mm to 16mm.
Q3: Where is LK-PTC manufactured?
A3: LK-PTC is manufactured in China.
Q4: How to use the chip PTC?
A4: Generally, it can be used for overcurrent and overtemperature protection, surge absorption, linear current sensing and temperature compensation.
Q5: What are the advantages of LK-PTC?
A5: LK-PTC products have a high sensitivity, a wide resistance range, a small hysteresis, a low temperature coefficient and a small size.
