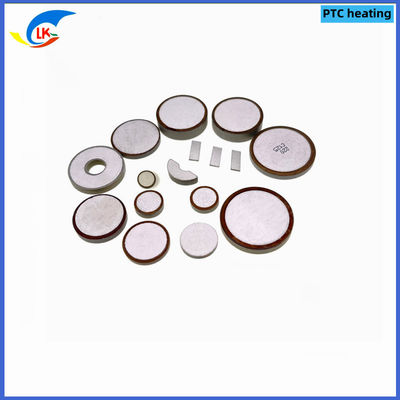

PTC thermistor for heating.pdf

Part No: MZ4HX5S160525-7R5SV12/170

3-12Ω

Rev: 0/A ( Nov. 18, 23)

Page 1 of 6

1-1. Dimensions (mm)尺寸

PTC THERMISTOR

3-12Ω

Rev: 0/A ( Nov. 18, 23)

Page 2 of 6

Item

Specification

Test Conditions & Methods

2-1. Rated Zero-power Resistance

(RN)

Ambient temp. range : 25℃±1℃

Testing voltage : 1.5VDC

2-2. Curie Temperature

 (TC)

The resistance at TC is twice of RN

2-3. Operating Voltage

2-4.Surface Temperature

(TS)

At ambient Temperature: 25℃±2℃

Applying Voltage:36V_DC

Test Instruments:Digital Thermometer

After applying 36V_DC for 10minutes,test the middle of the disc temperature.

2-5. Withstand Voltage

At ambient Temperature: 25℃±2℃

Test circuit diagram

Voltage

3-1 Packing Method

On package should indicate the following content: the use of Chinese characters

1,The factory name or registered trademark;

2,The product name and model;

3,The box, PTC quantity;

3-2. Storage Condition

Temperature: -10℃～+60℃

Humidity: ≤70%RH

Term: ≤12 months (First-in/ First-out)

After unpacking of the minimum package, reseal it promptly or store it inside a sealed container with a drying agent.

PTC THERMISTOR

3-12Ω

Rev: 0/A ( Nov. 18, 23)

Page 3 of 6

Example :

MZ4H X5 S160525 – 7R5 S V12/ 170

(1) (2) (3) (4) (5) (6) (7)

(1)――PTC Thermistor for Heating

(2)――Curie Temperature

P5――50℃ P9――90℃

X1――110℃ X5――150℃

Y2――220℃ Y8――280℃

(3)――Disc Size

S0820――Ф8.0*2.0

S160525――Ф16*5*2.5

(4)――Resistance at 25℃

7R5――7.5Ω

350――35Ω

102――1000Ω

202――2000Ω

(5)――Tolerance of Resistance

M――±20％

N――±30％

X――±25％

S――Specialties

(6)――Max. Rated Voltage

3V7――3.7V

V12 ――12V

V110――110V

V265――265V

(7)――Surface Temperature

170――170℃

210――210℃

270――270℃

PTC THERMISTOR

3-12Ω

Rev: 0/A ( Nov. 18, 23)

Page 4 of 6

5.R-T CURVE

Part No: M Z4HX5S160525-7R5SV12/170

7. ATTENTION

(1)Please read this specification before use the product.

(2)Please do not expose posistor to any abnormal environment. Or it may deteriorate posistor's character, worsely, may cause malfunction(or damage).

●Please use posistor within the specified maximum voltage.

●When this product is operated, please make sure that surrounding parts and inserting material can withstand the temperature. If the surrounding part and materials is kept under such condition, they may be deteriorated or may produce harmful gas(C12,H2S,NH3,Sox,Noxetc.).And, such harmful gas may deteriorate the element.

●This product does not have waterproof construction. A splashed water may cause failure mode such as decline of characteristic or current leak.

●The ceramic element of this product is fragile, and care must be taken not to load a excessive pressforce or not to give a shock at handling, Such forces may cause cracking or chipping.

●Please store posistor under following conditions, without breaking package

①Storage temperature:between-10℃ and 40℃

Storage humidity: less than 85%RH(no dew)

②Storage place : keep away from sun, any halogen gas, such as chorine or sulfurous Materials.

●Please do keep Posistor away

①From caustic and reductive gas(such as Cl2,H2S,NH3,SOx, NOx, etc.)

②From volatile and combustible gas.

③From water salt solution,oil, lotion and organic solvent.

(3)You are requested not to use our product deviating from the agreed specifications.

(4)Please make sure that your product has been evaluated in view of your specifications with our product

Being mounted to your product receipt. If the duplicate is not returned by the date this product specification will be deemed to have been received by you.

8.RoHS-compatib
