Product Details:
|
| Dimension: | 5mm -45mm | Rated Zero-power Resistance: | 1Ω-10000Ω |
|---|---|---|---|
| Withstand Voltage(Ub): | 20V-220V/60S | Curie Temperature: | （50℃-310℃）±7℃ |
| Surface Temperature: | (50℃-300℃)±10℃ | Name: | PTC Heating Plate |
| Material: | Ceramics | ||
| Highlight: | Long Life PTC Heating Sheet,Silver Electrode PTC Heating Sheet |
||

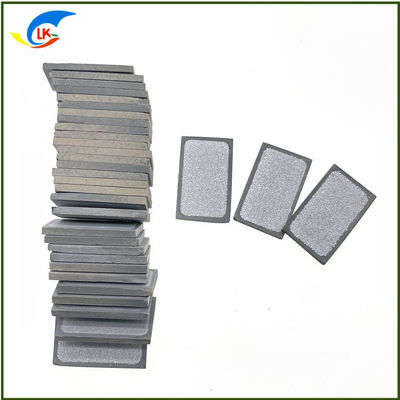

PTC Heating Sheet For High-End Hair Salons 205℃ Silver Electrode, Fast Heat Conduction, Long Life
PTC thermal ceramic heating piece
The characteristics of PTC ceramic heating pads are mainly reflected in its three main aspects: resistance-temperature characteristics, volt-ampere characteristics, and current-time characteristics. Among them, resistance-temperature characteristics are the most basic characteristics and the most important factor in determining the performance of PTC materials. special.
working principle:
PTC thermistor ceramic heating piece has special functions of constant temperature, temperature adjustment and self-temperature control.
When an AC or DC voltage is applied to a PTC element, below the Curie point temperature, the resistivity is very low and the temperature rises quickly. Once the Curie point temperature is exceeded, the resistivity suddenly increases, causing the current to drop to a stable value. To achieve the purpose of automatic temperature control and constant temperature, no additional temperature control circuit device is needed, and the living temperature of the PTC element can be adjusted according to different temperature requirements through formulas to achieve the required operating temperature in different application scenarios.
External structure:
There are three types of chip PTC heating element structures: double-sided electrode lead type, single-sided electrode lead type, and side electrode lead type.
| Type | Features | Advantage | Shortcoming |
| Double-sided electrode lead wire | The electrode surfaces are on the upper and lower large planes of the PTC ceramic sheet. | Simple structure, low cost, resistance can be made very small | The large upper and lower surfaces require metal contact pieces to conduct electricity, which is not as reliable as welding. |
| Single sided electrode lead wire | The two electrical contact points are on the same large plane of the PTC ceramic sheet | Can be welded, the entire heater is small in size and highly reliable | The cost is more expensive than the double-sided electrode lead, and it cannot be used to make a heating plate with a small area. |
| Side electrode leads | Two electrical contact points are on the two small sides of the PTC ceramic piece | Welding on the circuit board or welding wires on the side does not affect heat transfer | The smaller the resistance, the more difficult it is to make. The surface temperature of PTC cannot exceed the soldering temperature.. |
In order to facilitate customer installation, we also provide products with other structures, such as: PTC heating parts with insulation layer (and wires), PTC heating pieces with shell (and wires), used for water heating, hair straighteners, air heating, etc. For PTC heaters, see this link to the left.
2.Usage examples:
Heaters, air conditioning heating, clothes dryers, mosquito killers, motorcycle carburetors, car cold start preheating, electric humidifiers, moisture-proof electrical instruments, electric hot plates, massagers, thermotherapy instruments, glue guns, curling hair, Hair straightener heating, hot coffee machine, milk warmer, boiling water, water heater, steam beauty, etc. When the product terminal temperature is below 260°C, PTC heating can be used to maintain a constant temperature without temperature control. It has a compact structure and long service life, which has great advantages.
3.Usage precautions:
1) The PTC heating element has the characteristics of automatic constant temperature and does not require a temperature control system. Just energize the PTC directly.
2) When the PTC heating element is used to heat a liquid (such as water), the PTC heating element will not be damaged after the liquid is dried.
3) If the PTC heating element is used to heat cold air, the PTC heating element will not be damaged when the air is not supplied.
4) There are four electrodes for customers to choose from: electroless nickel + silver (can be welded), melt-blown metal aluminum, printed aluminum + silver, printed silver zinc + silver (can be welded), printed aluminum.
5) Long service life, if used in normal environment, the service life can reach more than 10 years. Our company's heating plate life test is at a high-quality level in China.
6) Reliable operation, using the internal characteristics of PTC to control temperature, it will never overheat.
7) Changes in operating voltage have relatively little impact on surface temperature. When the operating voltage increases by 2 times (or decreases by 1/2), the surface temperature increases (or decreases) by about 8°C.
8) When multiple PTCs are used together, they should be connected in parallel and not in series.
9) Different heat dissipation conditions make the heating power of PTC vary greatly. The faster the heat dissipation, the greater the power.
10) In general, double-sided electrode lead-out type PTC sheets are used, but for special purposes, single-side electrode lead-out and side electrode lead-out can also be used.
Parameter selection reference table:
| Shape | Use voltage(V) | Diameter(mm) |
Length (mm) |
Width (mm) |
Thick (mm) |
Normal temperature resistance(Ω) | surface temperature℃ |
| Round | 3～6 | 5～15 | 0.3～0.5 | 2～10 | 50～100 | ||
| Round | 12～50 | 5～25 | 0.5～1.5 | 2～20 | 50～300 | ||
| Round | 100～140 | 5～25 | 1.4～2.0 | 200～2000 | 50～320 | ||
| Round | 220～240 | 5～25 | 1.8～2.5 | 800～4000 | 50～320 | ||
| Round | 220～240 | 10～25 | 2.0～3.0 | 800～4001 | 250～320 | ||
| Round | 380～400 | 10～25 | 3.0～4.0 | 2000～8000 | 50～280 | ||
| Extra large round | 3～400 | 40～80 | 3.0～4.0 | 50～280 | |||
| Square piece | 3～6 | 1～3 | 1～2 | 0.3～0.5 | 50～150 | 50～100 | |
| Square piece | 12～24 | 2～5 | 1～2 | 0.3～0.5 | 100～300 | 50～150 | |
| Square piece | 12～50 | 5～40 | 3～20 | 1.0～1.5 | 2～20 | 50～300 | |
| Square piece | 100～140 | 5～40 | 3～20 | 1.4～2.0 | 200～2000 | 50～320 | |
| Square piece | 220～240 | 5～40 | 3～20 | 1.8～2.5 | 800～4000 | 50～320 | |
| Square piece | 220～240 | 10～40 | 6～20 | 2.0～3.0 | 800～4000 | 250～320 | |
| Square piece | 380～400 | 10～40 | 6～20 | 3.0～4.0 | 2000～8000 | 50～280 | |
| Extra large square piece | 3～400 | 50～70 | 35～50 | 3.0～4.0 | 50～280 |
Note:
1) As the thickness of the PTC sheet increases, the withstand voltage and reliability increase. For products with relatively high voltage or other products that require relatively high reliability, thicker PTC should be selected.
2) PTC ceramics are fragile, and a single PTC should not be made into a large area. When a larger area is required (such as uniform heating, or increased heating power, etc.), several PTCs can be combined into a large area (with shell or insulation). and wires), see our company's products: insulation-wrapped PTC heating sheet and shell-type PTC heating element.
3) Special shapes, such as ring, hexagon, triangle, rod, ring rod, etc., can be customized according to customer requirements. Extra large sizes can be customized.
4) The price of the heating plate varies according to the specific requirements and dosage of the product
| Item | Specification |
|---|---|
| Name | PTC Heater Plate |
| Dimension | 5mm -45mm |
| Curie Temperature | (50℃-310℃)±7℃ |
| Withstand Voltage(Ub) | 20V-220V/60S |
| Material | Ceramics |
| Rated Zero-power Resistance | 1Ω-10000Ω |
| Surface Temperature | (50℃-300℃)±10℃ |
| Related Product | PTC Starter Chip, PTC Ceramic Heater, PTC Start Relay Chip |
LK-PTC PTC Heating Plate is a ceramic heating element that can deliver high power and reliable performance in a wide range of applications. The PTC chip has a Curie temperature of 50℃-310℃±7℃, making it ideal for high temperature applications. It is available in sizes ranging from 5mm to 45mm and with a withstand voltage of 20V-220V/60S. It is a great choice for applications such as PTC heating systems, electric heating elements, and heating chips.
The PTC Heating Plate is designed to perform in extreme temperature environments, making it a great option for medical, industrial, commercial, and home applications. It is perfect for applications that require high temperature control, such as in electrical heating systems, household appliances, and automotive components. The PTC Heating Plate is also a great option for PTC heaters, which are used to provide reliable and efficient heating in various environments.
LK-PTC PTC Heating Plate provides maximum heat transfer efficiency and increased power output for applications that require reliable performance and fast response. With its high Curie temperature and withstand voltage, it is an ideal choice for high temperature and high power applications. It is also great for applications that require precise temperature control, such as medical and laboratory equipment.
The PTC Heating Plate is a great choice for applications that require reliable performance and fast response. It is perfect for PTC heaters, electric heating elements, and heating chips, as well as for applications that require precise temperature control. With its high Curie temperature and withstand voltage, it is an ideal choice for high temperature and high power applications. LK-PTC PTC Heating Plate is a great choice for a wide range of applications.
Get custom PTC Heater Pills from LK-PTC with model number 5mm-45mm. Our PTC Heatrs Plate has a withstand voltage of 20V-220V/60S and curie temperature of (50℃-310℃)±7℃. The surface temperature range is (50℃-300℃)±10℃. The dimension of the PTC Chip ranges from 5mm to 45mm. All of our products are made in China.
With the PTC Heater Pills, you get the best quality PTC Heatrs on the market. Our PTC Heater Pills are designed to provide superior performance and reliability. The PTC Heatrs Plate can be customized to meet the specific needs of your application.
PTC Heater Pills provides technical support and service for customers. Our knowledgeable staff is available to help you with any questions you may have about our products.
We offer a variety of resources to help you select the right product for your needs, including product comparison charts, technical specifications, installation guides, and more.
If you are having difficulty with our products, our technical support staff is available to answer your questions and provide assistance. We also provide a one-year limited warranty on parts and labor.
For more information about our technical support and service, please visit our website or contact us directly.
PTC Heater Pills are packaged and shipped in a durable cardboard box. The box is designed to protect the pills from being damaged during transit. Inside the box, the pills are packed in an airtight plastic container to keep them fresh and safe.
The box is sealed with packaging tape and labeled with the product name and a tracking number. The tracking number can be used to track the package online and ensure that it arrives safely and on time.
The PTC Heater Pills are shipped using a reputable shipping company with delivery confirmation. All packages are insured to cover any damages or losses.
