Product Details:
|

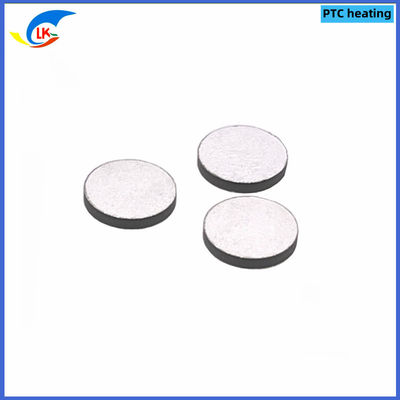

| Name: | PTC Constant Temperature Heating Piece | Curie Temperature: | 100±10℃ |
|---|---|---|---|
| Dimension: | Φ14*2.5mm | Rated Zero-power Resistance: | 14Ω±20% |
| Surface Temperature: | 100±7℃ | Material: | Ceramics |
| .Max.Operating Voltage: | 12V/24VDC | Breakdown Voltage(Vb): | ≥12V |
| Highlight: | Oil Burner PTC Thermistor,Φ14*2.5mm PTC Thermistor,100℃ PTC Thermistor |
||
PTC thermistor for heating
--Low voltage use type
--High voltage use type
category
PTC thermistor for heating
Product Description
application
• Automobile industry
◆ Cabin heating system for electric vehicles
◆ Diesel preheating and filter heating
◆ Heating of crankcase exhaust system
◆ Windshield washer nozzle heating
◆ Electric vehicle battery pack constant temperature
• Household industry
◆ Heating of washing machine door lock and thermostat bimetal piece
◆ Warm air heating
◆ Heating of mosquito repellent and perfume vaporizer
◆ Heating of medical devices
◆ Oil preheating of oil burner
◆ Heating of thermal actuator
• Others
◆ Heating of optical fiber communication distributors
◆ Heating of camera lens
◆Heating of sol gun and plastic welding
Features
◆ Excellent life characteristics, ensuring a longer service life than nickel-chromium heaters under normal operating conditions
◆ The heater element itself has temperature adjustment and self-control functions
◆ Combined with bimetallic plates to achieve interlocking or obtain available stroke displacement
◆ Easy to achieve compact and lightweight component design and easy installation
◆ No fire risk
Structure and parameters
Model and parameters
◆ Low voltage use
| Product number | Curie temperature | Surface temperature | 25°C zero power resistor | Operating Voltage | Maximum voltage | size | ||
| Tc(℃) | Ts(±10℃) | (Ω) | Vr(V) | Vmax(V) | D/L(mm) | d/W(mm) | T(mm) | |
| MZ4X1Φ190415-2R0□9/40 | 0 | 40 | 2 | 9 | 18 | Φ19.0 | Φ4.3 | 1.5 |
| MZ4P4S1210-9R0□V12/70 | 40 | 70 | 9 | 12 | 30 | Φ12.0 | - | 1 |
| MZ4P6S1210-9R0□V12/80 | 60 | 80 | 9 | 12 | 30 | Φ12.0 | - | 1 |
| MZ4P8S1210-9R0□V12/95 | 80 | 95 | 9 | 12 | 30 | Φ12.0 | - | 1 |
| MZ4P9S0825-360□V24/115 | 90 | 115 | 36 | 24 | 30 | Φ8.5 | - | 2.5 |
| MZ4X0S0815-180□V24/120 | 100 | 120 | 18 | 24 | 30 | Φ8.0 | - | 1.5 |
| MZ4X1Φ160415□12/120 | 110 | 120 | 2.4 | 12 | 24 | Φ16.0 | Φ4.3 | 1.5 |
| MZ4X0S0815-100□V24/125 | 100 | 125 | 10 | 24 | 30 | Φ8.0 | - | 1.5 |
| MZ4X2S1210-9R0□V12/130 | 120 | 130 | 9 | 12 | 30 | Φ12.0 | - | 1 |
| MZ4X3S1215-3R0□V12/140 | 130 | 140 | 3 | 12 | 14 | Φ12.0 | - | 1.5 |
| MZ4X3S1215-1R5□V12/145 | 135 | 145 | 1.55 | 13.5 | 28 | Φ12.0 | - | 1.5 |
| MZ4X5S1216-2R0□V13/160 | 150 | 160 | 2 | 13.5 | 28 | Φ12.0 | - | 1.6 |
| MZ4X5S1210-9R0□V12/165 | 155 | 165 | 9 | 12 | 30 | Φ12.0 | - | 1 |
| MZ4X8S1210-9R0□V12/185 | 180 | 185 | 9 | 12 | 30 | Φ12.0 | - | 1 |
| MZ4X9S0820-100□V18/215 | 195 | 215 | 100 | 18 | 36 | Φ8.0 | - | 2 |
| MZ4Y4S1516-4R5□V13/250 | 240 | 250 | 4.5 | 13.5 | 24 | Φ14.7 | - | 1.65 |
| MZ4P8S350614-3R2□V12/110 | 80 | 110 | 3.2 | 12 | 20 | 35 | 6.2 | 1.4 |
| MZ4X3S221225-1R8□V14/145 | 135 | 145 | 1.88 | 14 | 18 | 22 | 12 | 2.5 |
| MZ4X3S341524-3R1□V24/145 | 135 | 145 | 3.13 | 24 | 36 | 34 | 15 | 2.4 |
| MZ4X2S350614-3R2□V12/145 | 120 | 145 | 3.2 | 12 | 20 | 35 | 6.2 | 1.4 |
| MZ4X4S281216-1R6□V14/150 | 140 | 150 | 1.65 | 13.5 | 28 | 28 | 12 | 1.65 |
| MZ4X4S360820-5R0□V24/150 | 140 | 150 | 5 | 24 | 36 | 36 | 8 | 2 |
| MZ4X5S300610-4R5□V14/160 | 150 | 160 | 4.5 | 13.5 | 24 | 30 | 5.8 | 1 |
| MZ4X5S160416-1R5□V12/165 | 155 | 165 | 1.5 | 12 | 24 | 16.5 | 4.5 | 1.65 |
| MZ4X6S341524-1R7□V12/170 | 160 | 170 | 1.7 | 12 | 24 | 34 | 15 | 2.4 |
| MZ4X6S300610-200□V48/170 | 160 | 170 | 20 | 48 | 60 | 30 | 5.8 | 1 |
| MZ4X7S300610-2R3□V12/180 | 170 | 180 | 2.35 | 12 | 24 | 30 | 5.8 | 1 |
| MZ4X7S300610-3R0□V12/180 | 170 | 180 | 3 | 12 | 24 | 30 | 5.8 | 1 |
| MZ4X6S350614-3R2□V12/180 | 160 | 180 | 3.2 | 12 | 20 | 35 | 6.2 | 1.4 |
| MZ4X8S350614-3R2□V12/200 | 180 | 200 | 3.2 | 12 | 20 | 35 | 6.2 | 1.4 |
| MZ4Y2S350614-6R4□V12/230 | 220 | 230 | 6.4 | 12 | 20 | 35 | 6.2 | 1.4 |
| Remark: | ||||||||
| 1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special | ||||||||
| 2. The operating voltage can be selected from 1.5-68V, and the surface temperature can be selected from 35-350℃ | ||||||||
| 3. Other specifications or parameters can be customized | ||||||||
| ◆ High voltage use | ||||||||
| Product number | Curie temperature | Surface temperature | 25°C zero power resistor | Operating Voltage | Maximum voltage | size | ||
| Tc(℃) | Ts(±10℃) | (Ω) | Vr(V) | Vmax(V) | D/L(mm) | W(mm) | T(mm) | |
| MZ4P5S1220-122□V230/100 | 50 | 100 | 1200 | 230 | 270 | Φ11.8 | - | 2 |
| MZ4P9S1220-122□V230/125 | 90 | 125 | 1200 | 230 | 270 | Φ11.8 | - | 2 |
| MZ4X2S1325-102□V110/135 | 120 | 135 | 1000 | 110 | 140 | Φ13.0 | - | 2.5 |
| MZ4X1S0803-422□V230/135 | 110 | 135 | 4200 | 230 | 270 | Φ8.0 | - | 3 |
| MZ4X1S1220-122□V230/140 | 110 | 140 | 1200 | 230 | 270 | Φ11.8 | - | 2 |
| MZ4X3S1220-122□V230/160 | 130 | 160 | 1200 | 230 | 270 | Φ11.8 | - | 2 |
| MZ4X5S0803-422□V230/170 | 150 | 170 | 4200 | 230 | 270 | Φ8.0 | - | 3 |
| MZ4X5S1220-122□V230/180 | 150 | 180 | 1200 | 230 | 270 | Φ11.8 | - | 2 |
| MZ4X8S0803-422□V230/200 | 180 | 200 | 4200 | 230 | 270 | Φ8.0 | - | 3 |
| MZ4Y2S0803-602□V230/235 | 220 | 235 | 6000 | 230 | 270 | Φ8.0 | - | 3 |
| MZ4Y3S0803-102□V230/240 | 230 | 240 | 1000 | 230 | 270 | Φ8.0 | - | 3 |
| MZ4P5S350620-701□V230/100 | 50 | 100 | 700 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4P7S350620-701□V230/115 | 70 | 115 | 700 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4X1S350620-701□V230/145 | 110 | 145 | 700 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4X3S350620-701□V230/160 | 130 | 160 | 700 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4X6S241520-302□V220/170 | 160 | 170 | 3000 | 220 | 480 | 24 | 15 | 2 |
| MZ4X6S241524-152□V360/170 | 160 | 170 | 1500 | 360 | 420 | 24 | 15 | 2.4 |
| MZ4X5S350620-701□V230/180 | 150 | 180 | 700 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4X5S281221-302□V400/190 | 155 | 190 | 3000 | 400 | 600 | 28.8 | 12.4 | 2.1 |
| MZ4X8S350620-701□V230/205 | 180 | 205 | 700 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4X9S291021-402□V350/215 | 190 | 215 | 4000 | 350 | 800 | 28.8 | 9.8 | 2.1 |
| MZ4X9S393126-151□V600/220 | 195 | 220 | 150 | 600 | 750 | 39.2 | 30.8 | 2.6 |
| MZ4Y2S393119-871□V350/240 | 220 | 240 | 875 | 350 | 450 | 39.2 | 30.8 | 1.9 |
| MZ4Y2S393125-871□V540/240 | 220 | 240 | 875 | 540 | 600 | 39.2 | 30.8 | 2.5 |
| MZ4Y2S350620-102□V230/240 | 220 | 240 | 1000 | 230 | 270 | 35 | 6.2 | 2 |
| MZ4Y7S350620-132□V230/280 | 270 | 280 | 1300 | 230 | 270 | 35 | 6.2 | 2 |
Remark:
1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special
2. The working voltage can be selected from 100-1000V, and the surface temperature can be selected from 35-350℃
3. Other specifications or parameters can be customized
Factory strength display:
| Name | Parameter |
|---|---|
| Material | Ceramics |
| Rated Zero-power Resistance | 1Ω-10000Ω |
| Dimension | 5mm -20mm |
| Withstand Voltage(Ub) | 20V-220V/60S |
| Surface Temperature | (50℃-300℃)±10℃ |
| Curie Temperature | (50℃-310℃)±7℃ |
PTC Constant Temperature Heating Piece is a kind of ceramic heater manufactured by LK-PTC. It has a wide range of applications since it has a Curie temperature ranging from 50℃ to 310℃ with an accuracy of ±7℃. It is made of ceramic material and its sizes range from 5mm to 20mm. Furthermore, its rated zero-power resistance varies from 1Ω to 10000Ω. It can be widely used on heating and cooling, temperature control, thermal protection, etc. This PTC ceramic heater is a reliable and cost-effective choice for your business.
This PTC Constant Temperature Heating Piece is an ideal choice for providing temperature control solutions, due to its high accuracy and reliable performance. With its wide range of Curie temperatures, it is suitable for different heat dissipation needs. Its ceramic material also helps to reduce thermal stress and provide better heat distribution. In addition, its zero-power resistance can be adjusted to meet different requirements. Moreover, the size of this PTC heating chip can be easily adjusted to fit various applications, making it a versatile and cost-efficient product.
This PTC Constant Temperature Heating Piece from LK-PTC is a reliable and cost-effective choice for all your heating and temperature control needs. It is a durable and versatile product that is suitable for a wide range of applications. With its wide range of Curie temperatures and adjustable zero-power resistance, it is an ideal choice for providing temperature control solutions. Moreover, its ceramic material helps to reduce thermal stress and provide better heat distribution, making it a reliable and cost-efficient choice for your business.
We specialize in the production of PTC Ceramic Heater, Heating Chip and PTC Starter Chip. Our PTC Constant Temperature Heating Piece is of high quality, and is designed to meet all your requirements.
