Product Details:
|
| Temperature Coefficient:: | PTC Thermistor | Material: | Ceramic |
|---|---|---|---|
| Name: | PTC Chip | Electrode:: | Silver Electrode |
| Silver Electrode: | 22Ω±20% | Dimension: | 19.5*2.5mm |
| Operating Time: | 1.5 -3.5(S) | Max. Operating Voltage: | 180Vrms |
| Max. Current: | 12A | Power Consumption: | ＜3.2W |
| Highlight: | Refrigerators PTC Thermistor,Motor Starting PTC Thermistor,MZ9-22R19.5X2.5mm PTC Thermistor |
||

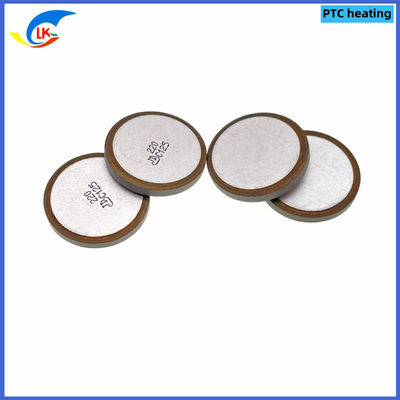

PTC thermistor for motor starting
--Chip type
--shell type
Product Description
use
◆ Auxiliary starting of compressors such as refrigerators, air conditioners and heat pumps
◆Auxiliary starting of single-phase induction motor
◆ Inrush current suppression of switching power supplies, frequency converters, variable frequency air conditioner main control boards, micromotor controllers, etc.
Features
◆ Reliable metal electrode: Ni (chemical plating or sputtering) + Ag (screen printing)
◆ Sturdy electrode suitable for pressure clamping installation, ensuring long life
◆ No electrical noise, easy to install
◆Choose the chip size and Curie point to provide the best inrush current and action time for startup
◆ High withstand voltage and surge current capability
◆ Safety approval: UL&CUL, VDE, CQC
◆ Comply with RoHS directive
Model and parameters
Chip type (MZ9 series)
| Product number | 1 | 2 | 3 | 4 | 5 | 6 |
| 25°C zero power resistor | Maximum voltage | Maximum current | Destruction voltage | Curie temperature | Diameter x Thickness | |
| R25(Ω) | Vmax(V) | Imax(A) | VBD(V) | Tc(°C) | (mm) | |
| MZ9-3R3□X3S1625 | 3.3 | 160 | 12 | 320 | 135 | 16x2.5 |
| MZ9-3R9□X3S1625 | 3.9 | 180 | 12 | 360 | ||
| MZ9-4R7□X3S1625 | 4.7 | 180 | 12 | 420 | ||
| MZ9-5R0□X0S1625 | 5 | 200 | 12 | 480 | 105 | |
| MZ9-5R5□X2S1625 | 5.5 | 200 | 12 | 450 | 120 | |
| MZ9-6R8□X0S1625 | 6.8 | 200 | 10 | 480 | 105 | |
| MZ9-6R8□X3S1625 | 6.8 | 200 | 10 | 450 | 135 | |
| MZ9-10R□X0S1625 | 10 | 200 | 10 | 500 | 105 | |
| MZ9-10R□X3S1625 | 10 | 200 | 8 | 500 | 135 | |
| MZ9-15R□X3S1625 | 15 | 350 | 8 | 700 | 135 | |
| MZ9-22R□X3S1625 | 22 | 350 | 8 | 700 | ||
| MZ9-33R□X3S1625 | 33 | 355 | 6 | 720 | ||
| MZ9-47R□X3S1625 | 47 | 400 | 5 | 720 | ||
| MZ9-68R□X3S1625 | 68 | 450 | 4 | 800 | ||
| MZ9-5R0□X2S1725 | 5 | 200 | 12 | 450 | 120 | 17.5x2.5 |
| MZ9-6R8□X2S1725 | 6.8 | 200 | 10 | 500 | ||
| MZ9-10R□X2S1725 | 10 | 200 | 10 | 550 | ||
| MZ9-20R□X2S1725 | 20 | 320 | 8 | 650 | ||
| MZ9-3R3□X2S2025 | 3.3 | 160 | 12 | 350 | 135 or 120 | 20x2.5 |
| MZ9-3R9□X2S2025 | 3.9 | 180 | 12 | 400 | ||
| MZ9-4R7□X3S2025 | 4.7 | 180 | 12 | 420 | ||
| MZ9-5R6□X3S2025 | 5.6 | 180 | 12 | 450 | ||
| MZ9-6R8□X3S2025 | 6.8 | 200 | 10 | 500 | ||
| MZ9-10R□X3S2025 | 10 | 230 | 9 | 550 | ||
| MZ9-12R□X3S2025 | 12 | 250 | 8.5 | 600 | ||
| MZ9-15R□X3S2025 | 15 | 350 | 8 | 700 | ||
| MZ9-22R□X3S2025 | 22 | 350 | 8 | 720 | ||
| MZ9-33R□X3S2025 | 33 | 355 | 6 | 750 | ||
| MZ9-47R□X3S2025 | 47 | 400 | 5 | 800 | ||
| MZ9-68R□X3S2025 | 68 | 450 | 5 | 860 | ||
| MZ9-3R9□X2S2032 | 3.9 | 180 | 16 | 350 | 120 | 20x3.2 |
| MZ9-12R□X2S2032 | 12 | 350 | 8 | 700 | ||
| MZ9-15R□X2S2032 | 15 | 350 | 8 | 750 | ||
| MZ9-30R□X2S2032 | 30 | 450 | 7 | 800 | ||
| MZ9-33R□X2S2032 | 33 | 385 | 8 | 750 | ||
| MZ9-40R□X2S2032 | 40 | 450 | 8 | 800 | ||
| MZ9-25R□X2S2050 | 25 | 400 | 9 | 800 | 120 | 20x5.0 |
| MZ9-38R□X2S2050 | 38 | 400 | 9 | 800 | ||
| MZ9-50R□X2S2050 | 50 | 410 | 8 | 800 | ||
| MZ9-75R□X2S2050 | 75 | 410 | 6 | 800 |
Remark:
1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special
2. Other specifications or parameters can be customized
| Name | PTC Chip |
|---|---|
| Type | Electronic Components -resistors |
| Package | Foam Packaging |
| Weight | 0.1g-1g |
| Inductance | 10mH |
| Current | 2A |
| Frequency | 2MHz |
| Voltage | 5V-250V |
| Capacitance | 1μF |
| Power | 5W |
The LK-PTC 5mm-16mm PTC Heating Chip is an ideal heating solution for a variety of applications. With its temperature range of 50-300°C and resistance range of 2Ω-10000Ω, it can provide reliable and efficient heating for a wide range of uses. It features a current of 2A and a dimension of 5mm-20mm, making it suitable for a variety of applications. The PTC Heating Chip is packaged in foam packaging for maximum safety and protection during transport. As it is made in China, it is also cost-effective, making it an ideal choice for businesses and households. The PTC Heating Chip is perfect for providing reliable and efficient heating for a variety of applications, such as heating elements, temperature control devices, and heaters.
LK-PTC PTC Chip for customize your PTC Ceramic Heater, PTC Starter Chip, PTC Heaters and PTC Element.
Product Attributes:
We provide a wide range of technical support and service for PTC Chip customers. Our team of experienced professionals is available to assist with any technical queries or issues you may have.
We offer a variety of different levels of service, from basic troubleshooting and installation guidance to more advanced training and support. We can provide on-site or remote assistance, depending on the needs of our customers.
We also offer a range of online resources, such as tutorials, FAQs and user guides, to help our customers get the most out of their PTC Chip product.
If you need any help or advice, please don't hesitate to contact us. Our team is always happy to help.
LK-PTC. Q: What is the model number of the PTC Chip? A: The model number of the PTC Chip is 5mm-16mm. Q: Where is the PTC Chip made? A: The PTC Chip is made in China. Q: What is a PTC Chip? A: A PTC Chip is a type of thermistor that uses positive temperature coefficient (PTC) technology. It is designed to resist an increase in temperature and can be used for temperature control or thermal protection. Q: What are the applications of a PTC Chip? A: PTC Chips can be used in a variety of applications such as motor protection, surge protection, over-temperature protection, heater control, and more.
