Application
• Automotive
◆ Cabin heating of electric vehicles
◆ Diesel fuel preheating
◆ Diesel fuel filter heating
◆ Heating of crank case venting system
◆ Windshield washer nozzle heating
• Domestic
◆ Bimetal heaters for door latches of washing machines
◆ Fan heaters
◆ Heaters for optical communication distributors
◆ Insecticide and perfume vaporizers
◆ Oil preheating in oil burners
◆ Thermal actuators for liquid dispensers and thermostats
◆ Heaters for medical appliances
• Others
◆ Lens heated
◆ Glue guns
◆ Plastic film welders
Features
◆ The temperature pulsation which is observed in the bimetallic thermostat application can be eliminated.
◆ The heater element itself functions as a temperature regualator.
◆ Compact and light design together with simple construction permits easy handing in wining, etc.
◆ Excellent lfe characteristics ensure a longer service life than Nickel-chrome heaters under normal operating conditions.
◆ No risk of fire

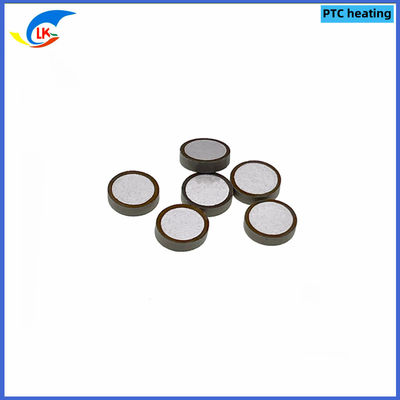

Structures and Dimensions
Electrical Specifications
◆ Heating elements for low voltage applications
| Order Number |
Curie Temp. |
Surface Temp. |
Resistance At25℃ |
Rated Voltage |
Maximum Voltage |
Dimensions |
| Tc(℃) |
Ts(±10℃) |
R25 (Ω) |
Vr(V) |
Vmax(V) |
D/L(mm) |
d/W(mm) |
T(mm) |
| MZ4X1Φ190415-2R0□9/40 |
0 |
40 |
2.0 |
9 |
18 |
Φ19.0 |
Φ4.3 |
1.5 |
| MZ4P4S1210-9R0□V12/70 |
40 |
70 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4P6S1210-9R0□V12/80 |
60 |
80 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4P8S1210-9R0□V12/95 |
80 |
95 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4P9S0825-360□V24/115 |
90 |
115 |
36 |
24 |
30 |
Φ8.5 |
- |
2.5 |
| MZ4X0S0815-180□V24/120 |
100 |
120 |
18 |
24 |
30 |
Φ8.0 |
- |
1.5 |
| MZ4X1Φ160415□12/120 |
110 |
120 |
2.4 |
12 |
24 |
Φ16.0 |
Φ4.3 |
1.5 |
| MZ4X0S0815-100□V24/125 |
100 |
125 |
10 |
24 |
30 |
Φ8.0 |
- |
1.5 |
| MZ4X2S1210-9R0□V12/130 |
120 |
130 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4X3S1215-3R0□V12/140 |
130 |
140 |
3.00 |
12 |
14 |
Φ12.0 |
- |
1.5 |
| MZ4X3S1215-1R5□V12/145 |
135 |
145 |
1.55 |
13.5 |
28 |
Φ12.0 |
- |
1.5 |
| MZ4X5S1216-2R0□V13/160 |
150 |
160 |
2 |
13.5 |
28 |
Φ12.0 |
- |
1.6 |
| MZ4X5S1210-9R0□V12/165 |
155 |
165 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4X8S1210-9R0□V12/185 |
180 |
185 |
9 |
12 |
30 |
Φ12.0 |
- |
1 |
| MZ4X9S0820-100□V18/215 |
195 |
215 |
100 |
18 |
36 |
Φ8.0 |
- |
2 |
| MZ4Y4S1516-4R5□V13/250 |
240 |
250 |
4.5 |
13.5 |
24 |
Φ14.7 |
- |
1.65 |
| MZ4P8S350614-3R2□V12/110 |
80 |
110 |
3.2 |
12 |
20 |
35.0 |
6.2 |
1.4 |
| MZ4X3S221225-1R8□V14/145 |
135 |
145 |
1.88 |
14 |
18 |
22.0 |
12 |
2.5 |
| MZ4X3S341524-3R1□V24/145 |
135 |
145 |
3.13 |
24 |
36 |
34.0 |
15 |
2.4 |
| MZ4X2S350614-3R2□V12/145 |
120 |
145 |
3.2 |
12 |
20 |
35.0 |
6.2 |
1.4 |
| MZ4X4S281216-1R6□V14/150 |
140 |
150 |
1.65 |
13.5 |
28 |
28.0 |
12 |
1.65 |
| MZ4X4S360820-5R0□V24/150 |
140 |
150 |
5 |
24 |
36 |
36.0 |
8 |
2 |
| MZ4X5S300610-4R5□V14/160 |
150 |
160 |
4.5 |
13.5 |
24 |
30.0 |
5.8 |
1 |
| MZ4X5S160416-1R5□V12/165 |
155 |
165 |
1.5 |
12 |
24 |
16.5 |
4.5 |
1.65 |
| MZ4X6S341524-1R7□V12/170 |
160 |
170 |
1.7 |
12 |
24 |
34.0 |
15 |
2.4 |
| MZ4X6S300610-200□V48/170 |
160 |
170 |
20 |
48 |
60 |
30.0 |
5.8 |
1 |
| MZ4X7S300610-2R3□V12/180 |
170 |
180 |
2.35 |
12 |
24 |
30.0 |
5.8 |
1 |
| MZ4X7S300610-3R0□V12/180 |
170 |
180 |
3 |
12 |
24 |
30.0 |
5.8 |
1 |
| MZ4X6S350614-3R2□V12/180 |
160 |
180 |
3.2 |
12 |
20 |
35.0 |
6.2 |
1.4 |
| MZ4X8S350614-3R2□V12/200 |
180 |
200 |
3.2 |
12 |
20 |
35.0 |
6.2 |
1.4 |
| MZ4Y2S350614-6R4□V12/230 |
220 |
230 |
6.4 |
12 |
20 |
35.0 |
6.2 |
1.4 |
Notes:
1. □ is the resistance tolerance M:±20% X:±25% N:±30% S: Special
2. Vr can be selected at 1.5-68V.
3. Ts can be selected at 35-350℃.
4. Other type are available on request.
◆ Heating elements for high voltage applications
| Order Number |
Curie Temp. |
Surface Temp. |
Resistance At25℃ |
Rated Voltage |
Maximum Voltage |
Dimensions |
| Tc(℃) |
Ts(±10℃) |
R25 (Ω) |
Vr(V) |
Vmax(V) |
D/L(mm) |
W(mm) |
T(mm) |
| MZ4P5S1220-122□V230/100 |
50 |
100 |
1200 |
230 |
270 |
Φ11.8 |
- |
2.0 |
| MZ4P9S1220-122□V230/125 |
90 |
125 |
1200 |
230 |
270 |
Φ11.8 |
- |
2.0 |
| MZ4X2S1325-102□V110/135 |
120 |
135 |
1000 |
110 |
140 |
Φ13.0 |
- |
2.5 |
| MZ4X1S0803-422□V230/135 |
110 |
135 |
4200 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4X1S1220-122□V230/140 |
110 |
140 |
1200 |
230 |
270 |
Φ11.8 |
- |
2.0 |
| MZ4X3S1220-122□V230/160 |
130 |
160 |
1200 |
230 |
270 |
Φ11.8 |
- |
2.0 |
| MZ4X5S0803-422□V230/170 |
150 |
170 |
4200 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4X5S1220-122□V230/180 |
150 |
180 |
1200 |
230 |
270 |
Φ11.8 |
- |
2.0 |
| MZ4X8S0803-422□V230/200 |
180 |
200 |
4200 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4Y2S0803-602□V230/235 |
220 |
235 |
6000 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4Y3S0803-102□V230/240 |
230 |
240 |
1000 |
230 |
270 |
Φ8.0 |
- |
3 |
| MZ4P5S350620-701□V230/100 |
50 |
100 |
700 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4P7S350620-701□V230/115 |
70 |
115 |
700 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4X1S350620-701□V230/145 |
110 |
145 |
700 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4X3S350620-701□V230/160 |
130 |
160 |
700 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4X6S241520-302□V220/170 |
160 |
170 |
3000 |
220 |
480 |
24.0 |
15 |
2 |
| MZ4X6S241524-152□V360/170 |
160 |
170 |
1500 |
360 |
420 |
24.0 |
15 |
2.4 |
| MZ4X5S350620-701□V230/180 |
150 |
180 |
700 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4X5S281221-302□V400/190 |
155 |
190 |
3000 |
400 |
600 |
28.8 |
12.4 |
2.1 |
| MZ4X8S350620-701□V230/205 |
180 |
205 |
700 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4X9S291021-402□V350/215 |
190 |
215 |
4000 |
350 |
800 |
28.8 |
9.8 |
2.1 |
| MZ4X9S393126-151□V600/220 |
195 |
220 |
150 |
600 |
750 |
39.2 |
30.8 |
2.6 |
| MZ4Y2S393119-871□V350/240 |
220 |
240 |
875 |
350 |
450 |
39.2 |
30.8 |
1.9 |
| MZ4Y2S393125-871□V540/240 |
220 |
240 |
875 |
540 |
600 |
39.2 |
30.8 |
2.5 |
| MZ4Y2S350620-102□V230/240 |
220 |
240 |
1000 |
230 |
270 |
35.0 |
6.2 |
2 |
| MZ4Y7S350620-132□V230/280 |
270 |
280 |
1300 |
230 |
270 |
35.0 |
6.2 |
2 |
Notes:
1.□ is the resistance tolerance M:±20% X:±25% N:±30% S: Special
2.Vr can be selected at 100-1000V.
3.Ts can be selected at 35-350℃.
4.Other type are available on request.
