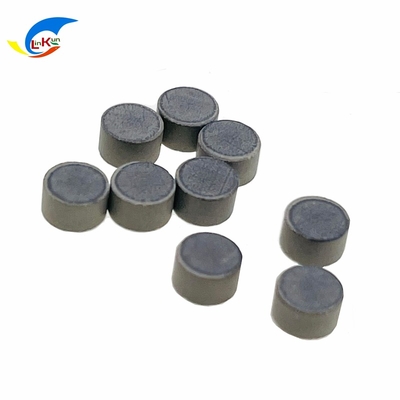

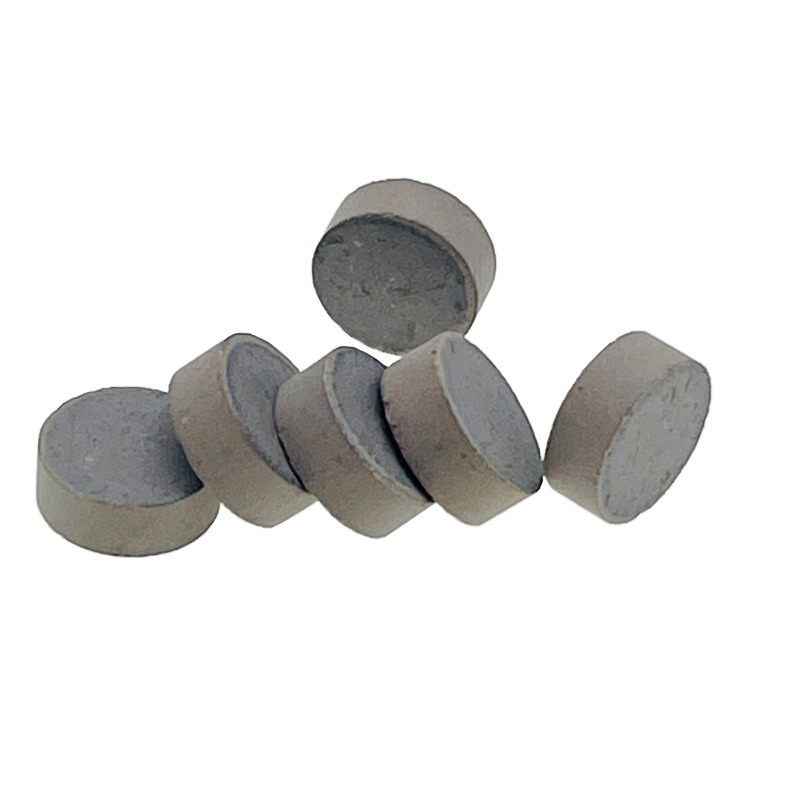

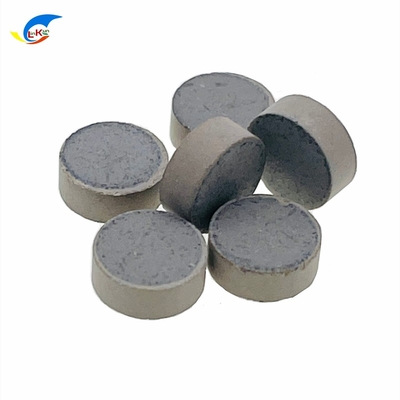

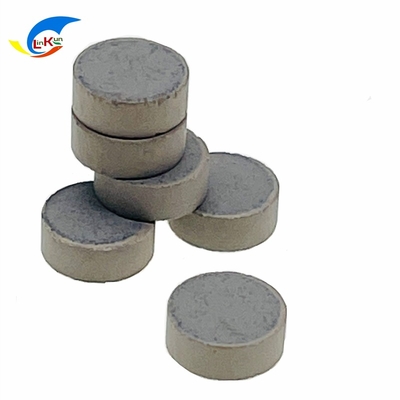

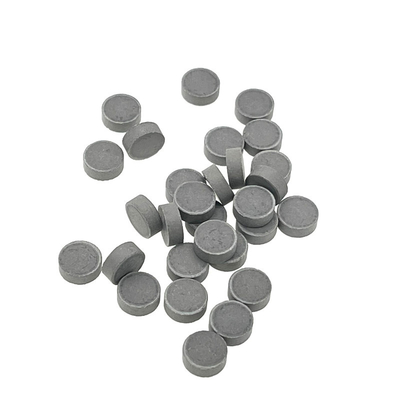

8mm PTC Thermistor Disc 245C for Mosquito Repellent Heating

Large Image : 8mm PTC Thermistor Disc 245C for Mosquito Repellent Heating

Product Details:

Place of Origin:	Guangdong, China
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5000
Price:	$0.03-0.06

Contact Now

8mm PTC Thermistor Disc 245C for Mosquito Repellent Heating

Description

Diameter:	8mm	Thickness:	3mm
Surface Temperature:	245℃	Max Voltage:	230V
Resistance @25°C:	4-8K Ohm	Mounting Type:	Surface Mount
Electrode Material:	Silver	Series:	LK-MZ4
Type:	Ceramic PTC	Operating Voltage Range:	1.5-68V
Temperature Range:	35-350℃	Power Consumption:	3.2-4W
Max Current:	12A	Destruction Voltage:	320-860V
Curie Temperature:	245℃
Highlight:	8mm PTC thermistor disc , 245C PTC heating chip , mosquito repellent heating element

Circular Diameter 8mm Positive Temperature PTC Disc Thermistor 245°C for Mosquito Repellent

Product Specifications

Attribute	Value
Application	Heating of mosquito repellent and perfume vaporize
Series	LK-MZ4 Series
Features	Round PTC ceramic heating element
Mounting Type	Surface Mount
Manufacturer Part Number	8*3 245C 230V 4-8KOHM
Type	Ceramic PTC Thermistor
Manufacturer	LINKUN
Package / Case	Silver Electrode
Diameter Thickness	8*3mm
Surface temperature	245℃
Max Operating Voltage	230V
Resistance in Ohms @ 25°C	4-8K Ohm
Packaging	OPP bag packaging or blister + carton reinforced outer packaging

Product Description

Applications

Automotive Industry: Cabin heating for electric vehicles, diesel preheating, windshield washer nozzles, battery pack temperature control
Household Industry: Washing machine door locks, warm air heating, medical equipment, fuel burner oil preheating
Other Applications: Fiber optic communication distributors, camera lenses, plastic welding

Key Features

Extended service life compared to nickel-chromium heaters
Built-in temperature regulation and self-control functions
Compact and lightweight design for easy installation
No fire risk during operation

Technical Specifications

Low Voltage Models

Product Number	Curie Temp (℃)	Surface Temp (℃)	25°C Resistance (Ω)	Operating Voltage (V)	Max Voltage (V)	Size (mm)
MZ4X1Φ190415-2R0□9/40	0	40	2	9	18	Φ19.0×1.5

High Voltage Models

Product Number	Curie Temp (℃)	Surface Temp (℃)	25°C Resistance (Ω)	Operating Voltage (V)	Max Voltage (V)	Size (mm)
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8×2

Notes:
1. □ represents the deviation range of R25: M: ±20%, X: ±25%, N: ±30%, S: Special
2. Operating voltage range: 1.5-68V (low voltage), 100-1000V (high voltage)
3. Surface temperature range: 35-350℃
4. Custom specifications available upon request

Motor Starting PTC Thermistors

Applications

Compressor starting for refrigerators, air conditioners, and heat pumps
Single-phase induction motor starting
Inrush current suppression for power supplies and controllers

Features

Reliable metal electrode construction
Pressure clamp installation for long life
No electrical noise generation
High voltage and current resistance
Safety certifications: UL/CUL, VDE, CQC
RoHS compliant
