MZ4 Series PTC Thermistor Chip for Motor Starting 3.7V-22V

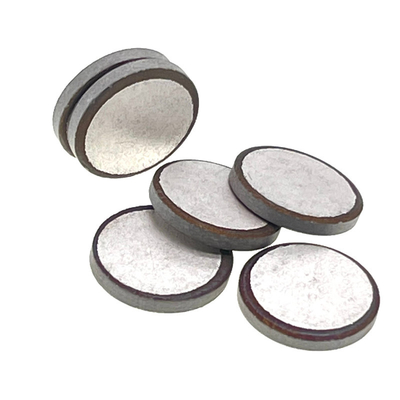

Large Image : MZ4 Series PTC Thermistor Chip for Motor Starting 3.7V-22V

Product Details:

Place of Origin:	Guangdong, China
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5000
Price:	$0.15-0.25

Contact Now

MZ4 Series PTC Thermistor Chip for Motor Starting 3.7V-22V

Description

Operating Voltage:	3.7V~22V	Temperature Range:	50℃~300℃
Resistance Range:	1ohm-10000ohm	Surface Temperature:	R25:M:±20%
Package Material:	Ni + Ag	Shape:	Round
Zero Power Resistor:	3.3Ω~100Ω	Maximum Voltage:	160V~500V
Maximum Current:	4A~15A	Destruction Voltage:	320V~860V
Curie Temperature:	105℃~280℃	Diameter X Thickness:	16x2.5mm~20x5.0mm
Power Consumption:	3.2W~4W	Electrode Type:	Ni (plating/sputtering) + Ag (screen Printing)
Resistor Deviation:	±20% To ±30%
Highlight:	PTC thermistor chip for motor starting , MZ4 series PTC heating chip , 3.7V-22V PTC thermistor

Rectangle PTC Ceramic Heater Thermistor Resistor Heater Chip

Product Specifications

Attribute	Value
Application	Auxiliary start of compressors such as refrigerator
Series	MZ4 Series 3.7V~22V 50℃~300℃ 1ohm-10000ohm
Features	Chip
Mounting Type	Chip type
Description	PTC thermistor for motor starting
Type	PTC THERMISTOR
Manufacturer	LinKun
Package / Case	Ni (chemical plating or sputtering) + Ag (screen printing)
Shape	Round
Function	Compressor start-up assistance and inrush current suppression

PTC Thermistor for Heating

Applications

Automotive Industry: Cabin heating for EVs, diesel preheating, windshield washer nozzles, battery pack temperature control
Household Industry: Washing machine door locks, warm air heating, medical equipment, fuel burner oil preheating
Other Applications: Fiber optic communication distributors, camera lenses, plastic welding tools

Key Features

Excellent lifespan characteristics, outperforming nickel-chromium heaters
Built-in temperature regulation and self-control functions
Compact, lightweight design for easy installation
No fire risk during operation
Compatible with bimetallic strip integration

Technical Specifications

Low Voltage Models

High Voltage Models

Notes:
1. □ represents R25 deviation range: M: ±20%, X: ±25%, N: ±30%, S: Special
2. Operating voltage range: 1.5-68V (low voltage), 100-1000V (high voltage)
3. Surface temperature range: 35-350℃
4. Custom specifications available upon request

PTC Thermistor for Motor Starting

Chip Type (MZ9 Series)

Applications

Auxiliary starting for compressors (refrigerators, air conditioners, heat pumps)
Single-phase induction motor starting assistance
Inrush current suppression in power supplies and motor controllers

Features
