MZ4 Series PTC Thermistor for Heating 8x3mm 130℃ 220V

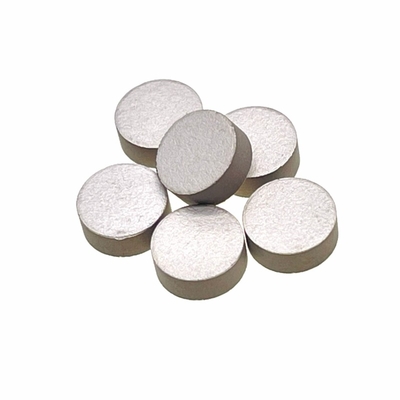

Large Image : MZ4 Series PTC Thermistor for Heating 8x3mm 130℃ 220V

Product Details:

Place of Origin:	Guangdong, China
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5000
Price:	$0.15-0.20

Contact Now

MZ4 Series PTC Thermistor for Heating 8x3mm 130℃ 220V

Description

Diameter Thickness:	8*3mm	Surface Temperature:	130℃
Max Operating Voltage:	220V	Resistance @25°C:	4200 Ohm
Mounting Type:	Surface Mount	Package Case:	Silver Electrode
Type:	Ceramic PTC Thermistor	Operating Voltage Range:	1.5-68V
Surface Temp Range:	35-350℃	Max Current:	12A
Destruction Voltage:	320V	Power Consumption:	4W
Curie Temperature:	135°C	Zero Power Resistor:	3.3Ω
Electrode Material:	Ni + Ag
Highlight:	PTC thermistor heating element 8x3mm , PTC heating chip 130℃ 220V , MZ4 series PTC thermistor with warranty

MZ4 Series PTC Thermistor for Heating B59053A0130A010

Product Attributes

Attribute	Value
Application	Heating of mosquito repellent and perfume vaporize
Series	MZ4 Series
Features	Round PTC ceramic heating element
Mounting Type	Surface Mount
Description	Round PTC ceramic heating element thermistor
Manufacturer Part Number	MZ4-D422N0830X3C7C36
Type	Ceramic PTC Thermistor
Manufacturer	LINKUN
Package / Case	Silver Electrode
Diameter Thickness	8*3mm
Surface temperature	130℃
Max Operating Voltage	220V
Resistance in Ohms @ 25°C	4200 Ohm
Packaging	OPP bag packaging or blister + carton reinforced outer packaging

Product Description

PTC thermistor for heating with excellent temperature regulation and self-control functions.

Applications

Automotive Industry: Cabin heating for EVs, diesel preheating, windshield washer nozzles
Household Industry: Washing machine door locks, warm air heating, medical equipment
Other Applications: Fiber optic communication, camera lenses, plastic welding

Key Features

Excellent lifespan characteristics
Built-in temperature regulation and self-control
Compact and lightweight design
No fire risk
Easy installation

Technical Specifications

Low voltage use type:

Product number	Curie temp (℃)	Surface temp (℃)	25°C resistor (Ω)	Operating Voltage (V)	Max voltage (V)	Size (mm)
MZ4X1Φ190415-2R0□9/40	0	40	2	9	18	Φ19.0×1.5

High voltage use type:

Product number	Curie temp (℃)	Surface temp (℃)	25°C resistor (Ω)	Operating Voltage (V)	Max voltage (V)	Size (mm)
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8×2

Notes:
1. □ represents the deviation range of R25 (M: ±20%, X: ±25%, N: ±30%, S: Special)
2. Operating voltage range: 1.5-68V (low voltage), 100-1000V (high voltage)
3. Surface temperature range: 35-350℃
4. Custom specifications available

PTC Thermistor for Motor Starting

Chip Type (MZ9 Series)

Applications

Compressor starting for refrigerators and air conditioners
Single-phase induction motor starting
Inrush current suppression for power supplies

Features

Reliable metal electrode construction
Pressure clamping installation for long life
No electrical noise
High voltage and impact current resistance
Safety approvals: UL, CUL, VDE, CQC
RoHS compliant
