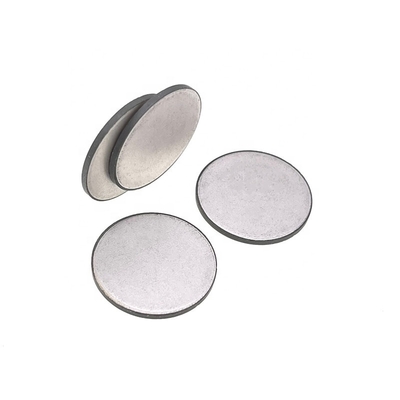

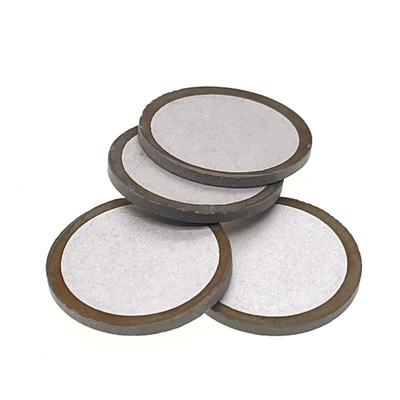

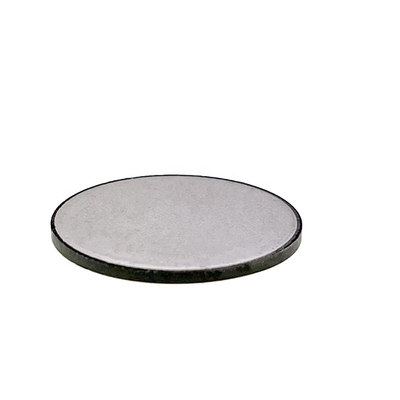

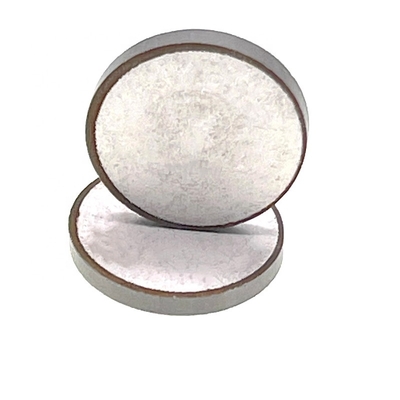

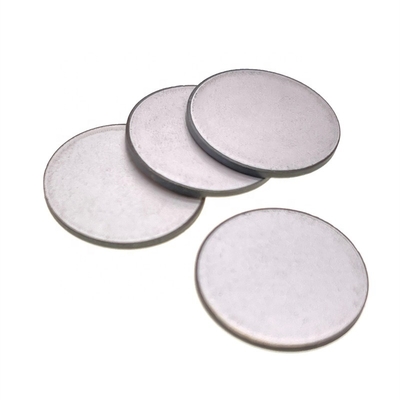

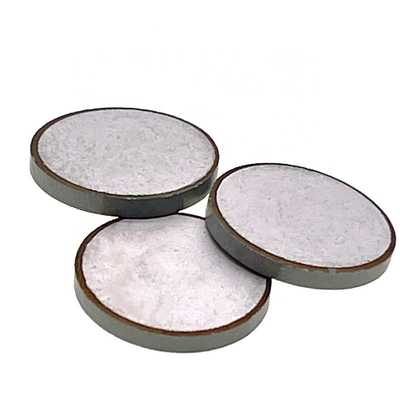

MZ4 PTC Heating Chip 19.5x2mm 12V 500-1500 Ohm for Automotive HVAC

Large Image : MZ4 PTC Heating Chip 19.5x2mm 12V 500-1500 Ohm for Automotive HVAC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Linkun
Model Number:	MZ4 Heating PTC Thermistor
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5000
Price:	$0.55-0.60

Contact Now

MZ4 PTC Heating Chip 19.5x2mm 12V 500-1500 Ohm for Automotive HVAC

Description

Dimensions:	19.5*2mm	Max Temperature:	200°C
Operating Voltage:	12V	Resistance Range:	500-1500 Ohm
Resistance Tolerance:	±20% ±25% ±30% ±50%	Shape:	Round
Material:	Ceramic Composition	Electrode Material:	Silver Electrode/aluminum Electrode
Surface Temperature:	35-350°C	Operating Voltage Range:	1.5-68V
Curie Temperature:	35-350°C	Zero Power Resistor:	2-6000 Ohm
Max Voltage:	18-1000V	Max Current:	4-16A
Destruction Voltage:	320-860V
Highlight:	PTC heating chip for automotive HVAC , 12V PTC heating element , 19.5x2mm PTC heater

PTC Heating Sheet for Constant Temperature Heating

19mm*2.5mm 200°C 500-1500 ohms

Product Specifications

Attribute	Value
Specification	19.5* 2mm 200°C 12V 500-1500R
Packaging Type	Vacuum blister + carton
Application	Automobile industry/household appliance industry
Package / Case	Ceramic Composition
Series	MZ4 Heating PTC Thermistor
Features	Round piece
Size / Dimension	Customized Heater Element
Description	For small household appliances, car heating
Resistance	500-1500 ohm
Resistance Tolerance	±20% ±25% ±30% 50%
Name	Heating PTC Thermistor
Shape	Round
Surface temperature	R25:M:±20% X:±25% N:±30% S:Special
Function	Temperature regulation and automatic control function
Material	Ceramic Composition/Silver electrode/aluminum electrode

PTC Thermistor for Heating

Applications

Automotive Industry: Cabin heating system for electric vehicles, Diesel preheating and filter heating, Heating of crankcase exhaust system, Heating of windshield washer nozzles, Constant temperature of electric vehicle battery pack
Household Industry: Heating of washing machine door locks and bimetallic strips of thermostats, Warm air heating, Heating of mosquito repellents and perfume vaporizers, Heating of medical equipment, Oil preheating of fuel burners, Heating of thermal actuators
Other Applications: Heating of fiber optic communication distributors, Heating of camera lenses, Heating of sol guns and plastic welding

Key Features

Excellent life characteristics, ensuring longer service life than nickel-chromium heaters under normal operating conditions
The heater element itself has temperature regulation and self-control functions
Interlocking or available travel displacement with bimetallic strips
Easy to achieve compact and lightweight component design and easy installation
No fire risk

Structure and Parameters

Low Voltage Use Models

Product number	Curie temperature	Surface temperature	25°C zero power resistor	Operating Voltage	Maximum voltage	Size
MZ4X1Φ190415-2R0□9/40	0	40	2	9	18	Φ19.0

1. □ represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special
2. The operating voltage can be selected from 1.5-68V, and the surface temperature can be selected from 35-350°C
3. Other specifications or parameters can be customized

High Voltage Use Models

Product number	Curie temperature	Surface temperature	25°C zero power resistor	Operating Voltage	Maximum voltage	Size
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8

1. □ represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S: Special
2. The working voltage can be selected from 100-1000V, and the surface temperature can be selected from 35-350°C
3. Other specifications or parameters can be customized

PTC Thermistor for Motor Starting

Chip Type (MZ9 Series)

Applications

Auxiliary starting of compressors such as refrigerators, air conditioners and heat pumps
Auxiliary starting of single-phase induction motors
Inrush current suppression of switching power supplies, inverters, inverter air conditioner main control boards, micromotor controllers, etc.

Features

Reliable metal electrode: Ni (chemical plating or sputtering) + Ag (screen printing)
Sturdy electrode suitable for pressure clamping installation to ensure long life
No electrical noise, easy to install
Select chip size and Curie point to provide the best impact current and action time for startup
High voltage and impact current resistance
Safety approval: UL&CUL, VDE, CQC
Compliant with RoHS directive
