14mm Round PTC Heating Thermistor Chip 12V 100C 14 Ohm

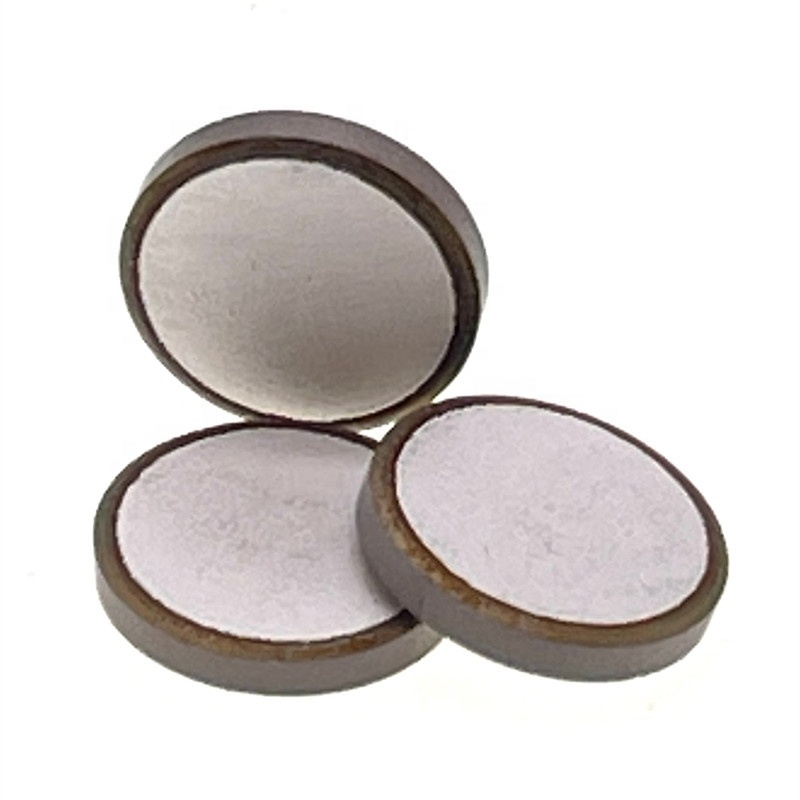

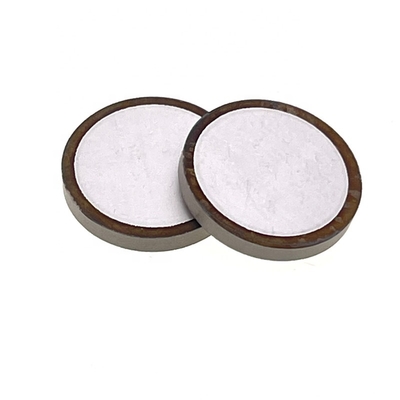

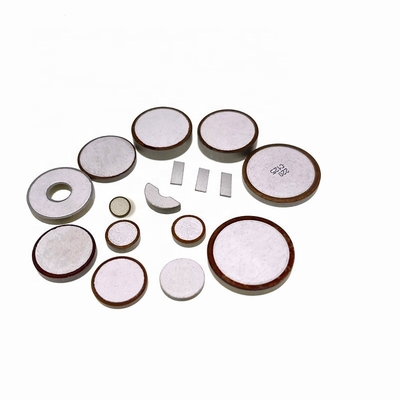

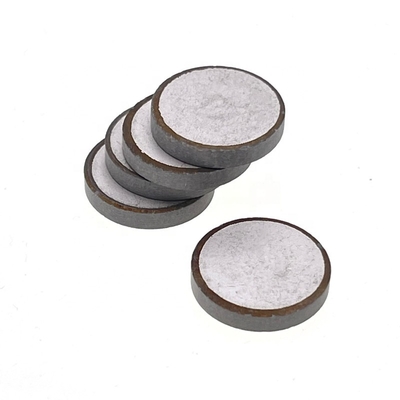

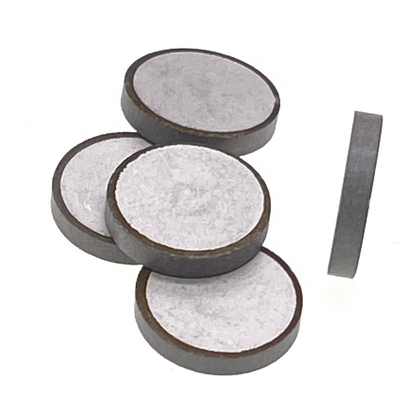

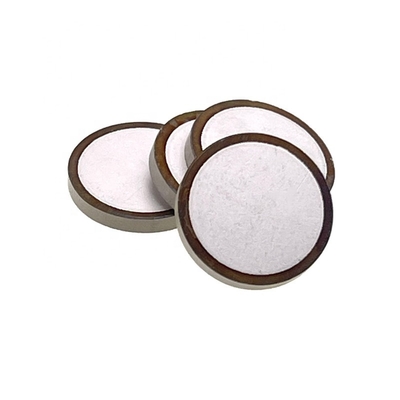

Large Image : 14mm Round PTC Heating Thermistor Chip 12V 100C 14 Ohm

Product Details:

Place of Origin:	Guangdong, China
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5000
Price:	$0.25-0.30

Contact Now

14mm Round PTC Heating Thermistor Chip 12V 100C 14 Ohm

Description

Diameter:	14mm	Thickness:	2.5mm
Resistance:	14Ω	Operating Voltage:	12V
Max Voltage:	24V	Curie Temperature:	100℃
Surface Temperature:	100℃	Material:	Ceramic
Electrode Material:	Silver/Aluminum	Mounting Type:	Surface Mount
Shape:	Round	Resistance Tolerance:	±20%
Function:	Temperature Regulation	Series:	LK-MZ4
Type:	PTC Thermistor
Highlight:	14mm PTC heating thermistor chip , 12V PTC heating element , 100C thermistor chip 14 ohm

Round Heating PTC Thermistor Chip Silver Aluminum Electrode 14X2.5mm 12V 24V 100C 14 ohm Ceramic Heating Plate Thermistor

Product Specifications

Attribute	Value
Application	Automatically limit temperature to achieve constant heating
Series	LK-MZ4 Series
Features	Constant temperature heating
Mounting Type	Surface mount
Description	Ceramic constant temperature PTC heating chip
Manufacturer Part Number	MZ4 14*2.5 12V 100C 14R
Type	PTC THERMISTOR
Manufacturer	LinKun
Package / Case	Tweezers + silver/aluminum electrodes
Shape	Round
Material	Ceramic Composition/Silver electrode/aluminum electrode
Diameter	14mm Max
Thickness	2.5mm Max
R25	14Ω
Vmax	12V
Curie Temperature	100℃

Product Description

This PTC thermistor heating element provides precise temperature regulation and automatic control for various industrial and commercial applications.

Applications

Automotive Industry: Cabin heating, diesel preheating, battery pack temperature control
Household Industry: Washing machine components, medical equipment, fuel burners
Other Applications: Fiber optic communication, camera lenses, plastic welding

Key Features

Excellent lifespan characteristics
Built-in temperature regulation and self-control functions
Compact and lightweight design for easy installation
No fire risk during operation
Available in low voltage (1.5-68V) and high voltage (100-1000V) variants

Technical Parameters

Low Voltage Models

Product Number	Curie Temp (℃)	Surface Temp (℃)	R25 (Ω)	Operating Voltage (V)	Max Voltage (V)	Size (mm)
MZ4X1Φ190415-2R0□9/40	0	40	2	9	18	Φ19.0×1.5
MZ4P4S1210-9R0□V12/70	40	70	9	12	30	Φ12.0×1.0
MZ4P6S1210-9R0□V12/80	60	80	9	12	30	Φ12.0×1.0

High Voltage Models

Product Number	Curie Temp (℃)	Surface Temp (℃)	R25 (Ω)	Operating Voltage (V)	Max Voltage (V)	Size (mm)
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8×2.0
MZ4P9S1220-122□V230/125	90	125	1200	230	270	Φ11.8×2.0

Notes: □ represents the deviation range of R25 (M: ±20%, X: ±25%, N: ±30%, S: Special). Other specifications or parameters can be customized.

PTC Thermistor for Motor Starting

Chip Type (MZ9 Series)

Applications

Auxiliary starting for compressors (refrigerators, air conditioners, heat pumps)
Single-phase induction motor starting
Inrush current suppression for power supplies and controllers

Features
